PARKER Parkrimp No-Skive Fitting 1B173
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 1B173-16-16 |
| 1B173-20-20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Dia. (mm) | A (mm) | Customs tariff weight (kg) | Thread or tube size | W | B (mm) | Operating pressure Mpa | Hose fitting size | Thread diameter BSP | E (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
271.62 € | 1 | 5 Days | 25 | 136 | 0.67 | -16 | 41 | 84 | 42 | -16 | 1x11 | 36 | ||
344.14 € | 1 | 5 Days | 31 | 168 | 1.298 | -20 | 50 | 104 | 35 | -20 | 1-1/4x11 | 43 |
Loading...
Basic information
| Customs tariff weight unit | kg | Steel | Galvanized steel, Cr(VI)-free | Connection group | BSP |
|---|---|---|---|---|---|
| Norm | BS 5200-D | Common name | DKR 45° | Description of connection type | Sealing head with BSP union nut - 45° elbow |
| Connection type | B1 | Fitting series | 73 | Customs tariff item number | 73269098 |
| Customs tariff weight per | 1 | Fitting | Parkrimp fitting | Customs tariff country of origin | DE |

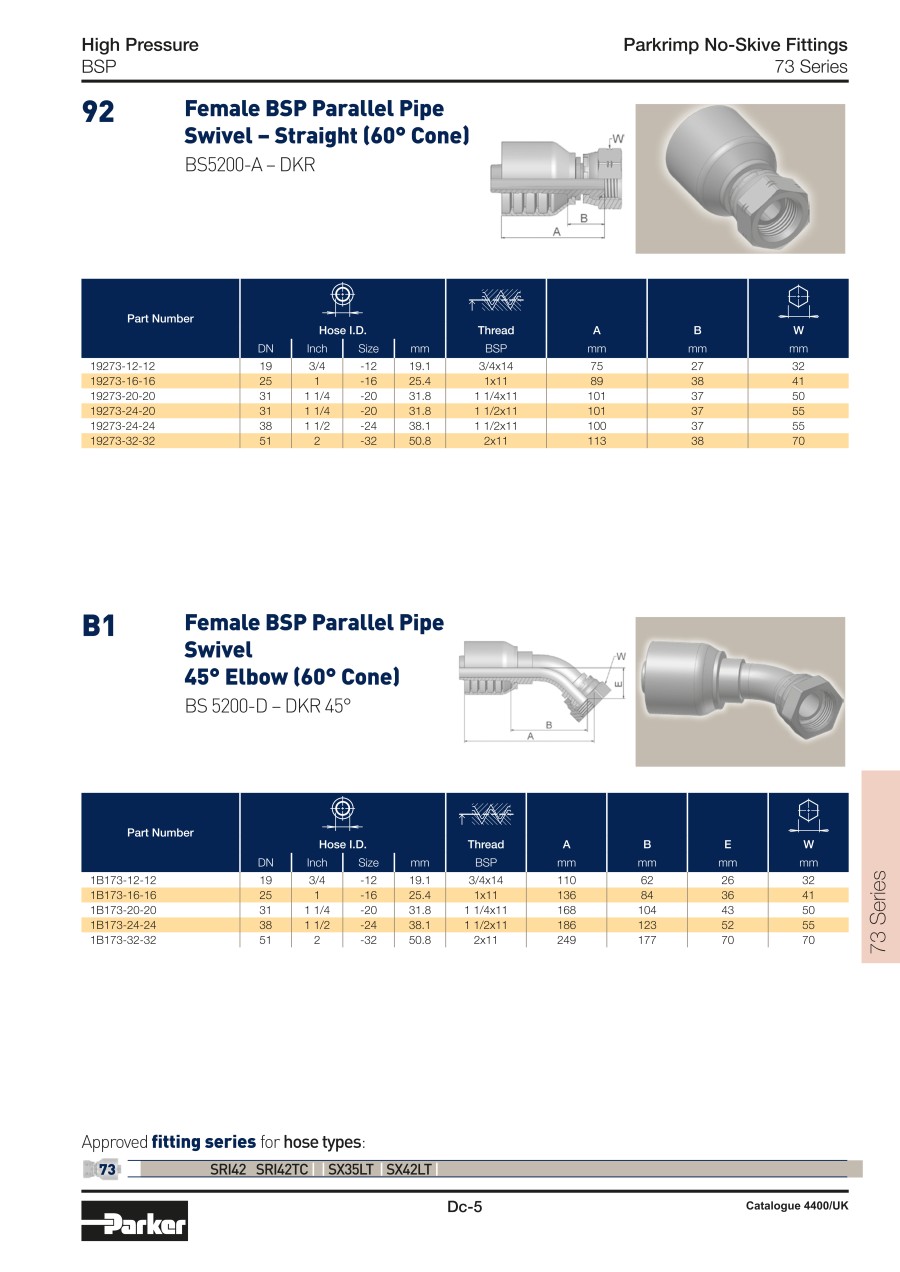

- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
