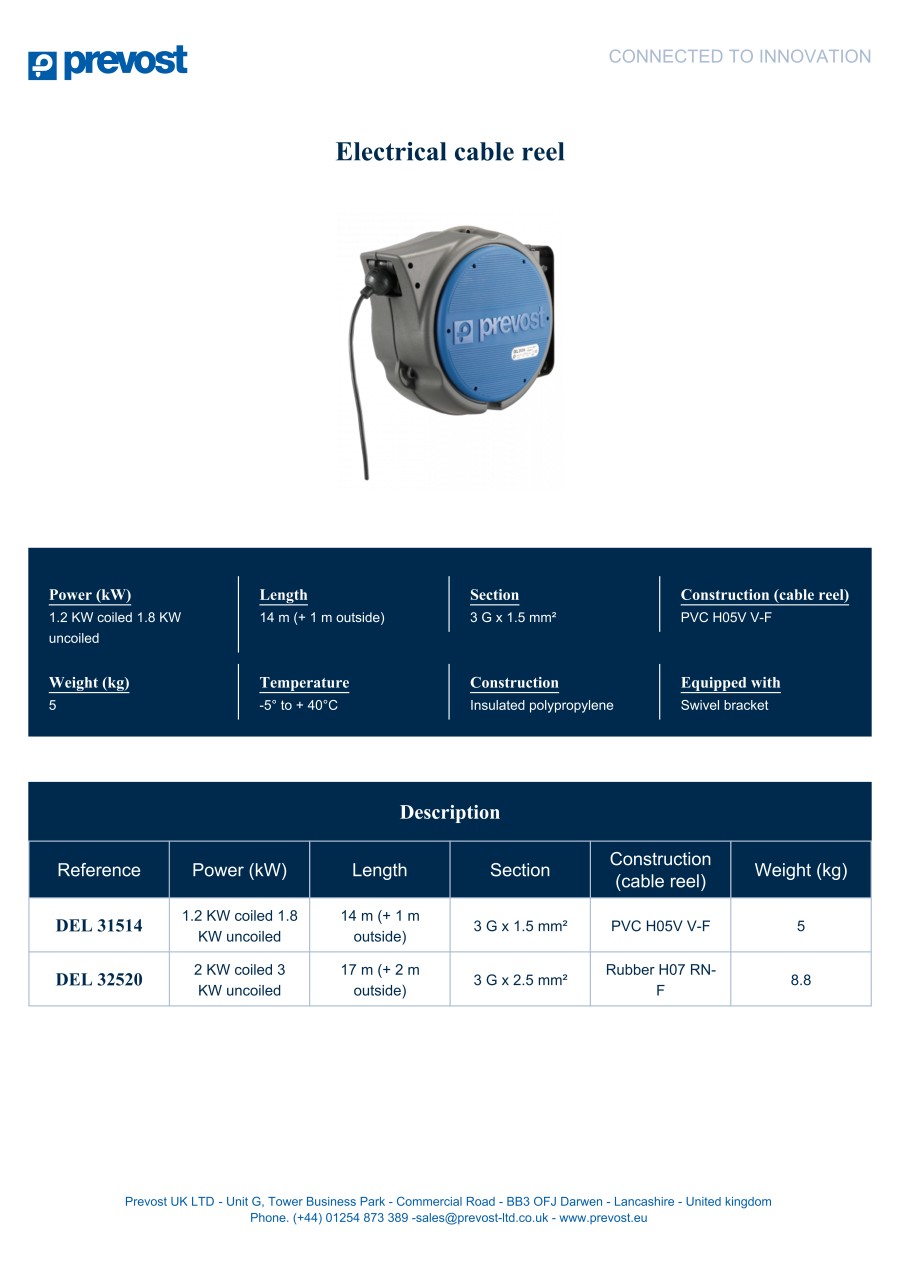

Electrical Cable Reel
They save time and allow flexible hoses to be used safely and efficiently.
Distributed fluids: compressed air, cold and hot water, high and low pressure, oil, grease, oxygen and acetylene.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| DEL 31514 |
| DEL 32520 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Section | Weight (kg) | Construction (cable reel) | Power (kW) | Length (m) | |
|---|---|---|---|---|---|---|---|---|---|
286.28 € | 1 | 7 Days | 3 G x 1.5 mm² | 5 | PVC H05V V-F | 1.2 KW coiled 1.8 KW uncoiled | 14 m (+ 1 m outside) | ||
563.85 € | 1 | 6 Days | 3 G x 2.5 mm² | 8.8 | Rubber H07 RN-F | 2 KW coiled 3 KW uncoiled | 17 m (+ 2 m outside) |
Loading...
Basic information
| Construction | Insulated polypropylene | Equipped with | Swivel bracket | Temperature | - 5° to + 40 |
|---|
Configure
Basic Attributes
-
Section
-
Weight(kg)
-
Construction (cable reel)
- PVC H05V V-F
- Rubber H07 RN-F
-
Power(kW)
- 1.2 KW coiled 1.8 KW uncoiled
- 2 KW coiled 3 KW uncoiled
-
Length(m)
- 14 m (+ 1 m outside)
- 17 m (+ 2 m outside)
-
Type
Filter by standard shipping days
-
- All
- 6 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
