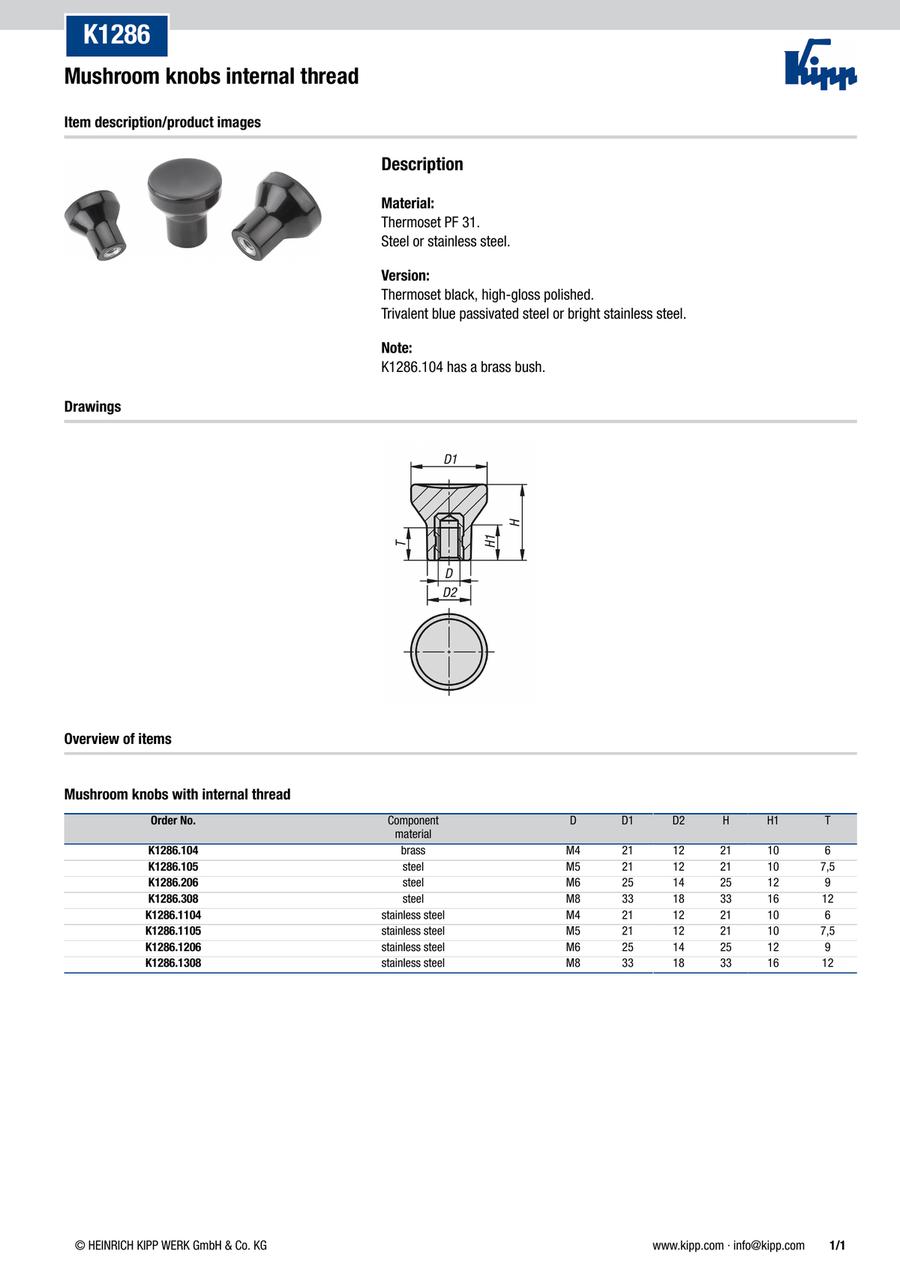

Mushroom knobs internal thread (K1286)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1286.104 |
| K1286.105 |
| K1286.1104 |
| K1286.1105 |
| K1286.1206 |
| K1286.1308 |
| K1286.206 |
| K1286.308 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Section Diameter d(mm) and/or Diameter | Main Body Outer Diameter D (φ) | Component material (mm) | Size (mm) | Surface finish component (mm) | D2 (mm) | H (mm) | H1 (Nm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.54 € | 1 | 4 Days | M4 | 21 | Brass | 1 | bright | 12 | 21 | 10 | 6 | ||
1.54 € | 1 | 4 Days | M5 | 21 | Steel | 1 | blue-passivated | 12 | 21 | 10 | 7.5 | ||
2.27 € | 1 | 4 Days | M4 | 21 | Stainless steel | 1 | bright | 12 | 21 | 10 | 6 | ||
2.27 € | 1 | 4 Days | M5 | 21 | Stainless steel | 1 | bright | 12 | 21 | 10 | 7.5 | ||
2.99 € | 1 | 4 Days | M6 | 25 | Stainless steel | 2 | bright | 14 | 25 | 12 | 9 | ||
3.91 € | 1 | 4 Days | M8 | 33 | Stainless steel | 3 | bright | 18 | 33 | 16 | 12 | ||
2.00 € | 1 | 4 Days | M6 | 25 | Steel | 2 | blue-passivated | 14 | 25 | 12 | 9 | ||
2.61 € | 1 | 4 Days | M8 | 33 | Steel | 3 | blue-passivated | 18 | 33 | 16 | 12 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Duroplast | Surface finish body(mm) | polished |
|---|---|---|---|---|---|
| Main colour(mm) | black |
Configure
Basic Attributes
-
Mounting Section Diameter d(mm) and/or Diameter
-
Main Body Outer Diameter D(φ)
-
Component material(mm)
-
Size(mm)
-
Surface finish component(mm)
-
D2(mm)
-
H(mm)
-
H1(Nm)
-
T(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
