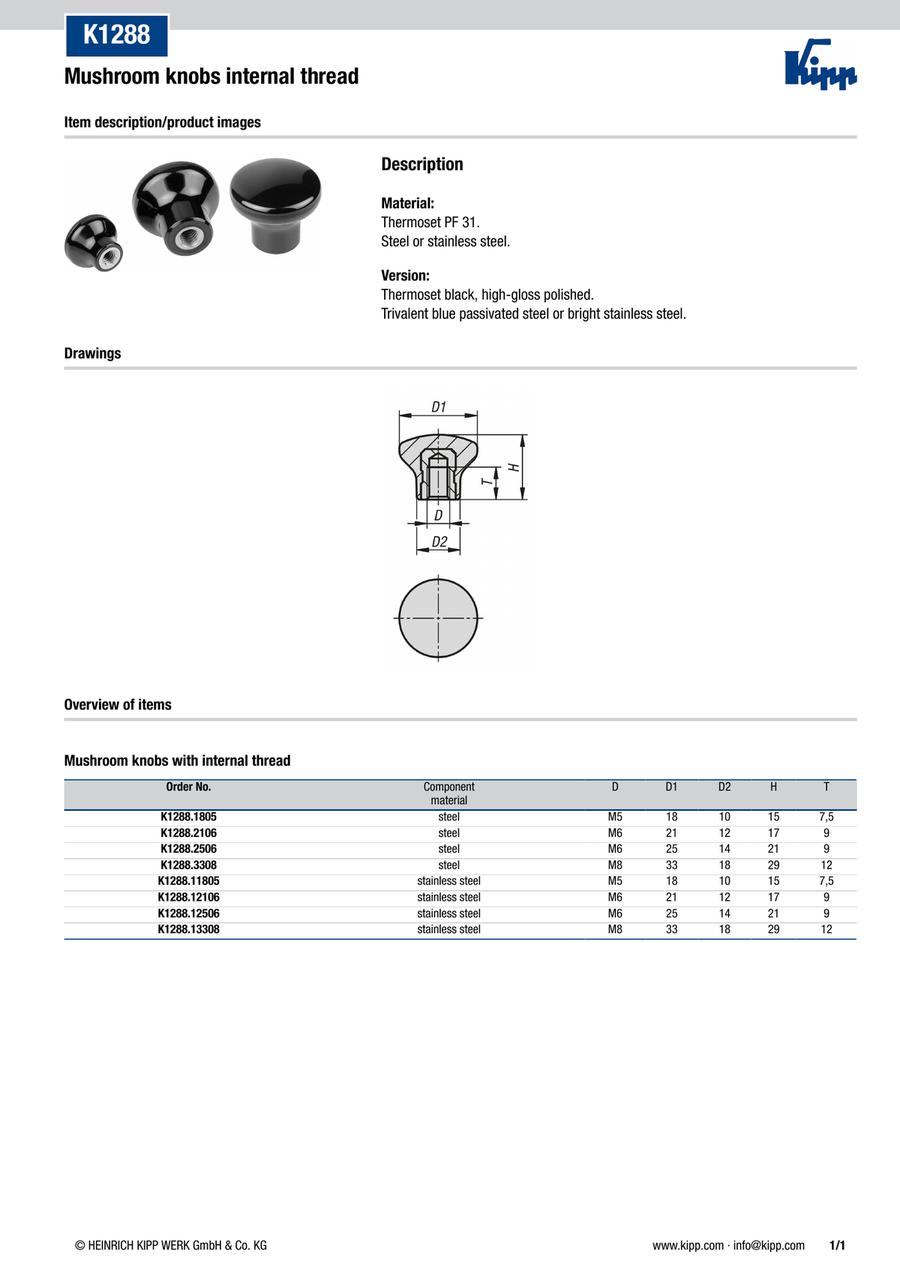

Mushroom knobs internal thread (K1288)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1288.11805 |
| K1288.12106 |
| K1288.12506 |
| K1288.13308 |
| K1288.1805 |
| K1288.2106 |
| K1288.2506 |
| K1288.3308 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread | Outside diameter (φ) | Component material (mm) | Component colour (mm) | D2 (mm) | H (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.68 € | 1 | 4 Days | M5 | 18 | Stainless steel | bright | 10 | 15 | 7.5 | ||
2.94 € | 1 | 4 Days | M6 | 21 | Stainless steel | bright | 12 | 17 | 9 | ||
3.34 € | 1 | 4 Days | M6 | 25 | Stainless steel | bright | 14 | 21 | 9 | ||
4.43 € | 1 | 4 Days | M8 | 33 | Stainless steel | bright | 18 | 29 | 12 | ||
1.35 € | 1 | 4 Days | M5 | 18 | Steel | blue-passivated | 10 | 15 | 7.5 | ||
1.47 € | 1 | 4 Days | M6 | 21 | Steel | blue-passivated | 12 | 17 | 9 | ||
1.67 € | 1 | 4 Days | M6 | 25 | Steel | blue-passivated | 14 | 21 | 9 | ||
2.33 € | 1 | 4 Days | M8 | 33 | Steel | blue-passivated | 18 | 29 | 12 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Duroplast | Main colour(mm) | black |
|---|
Configure
Basic Attributes
-
Thread
-
Outside diameter(φ)
-
Component material(mm)
-
Component colour(mm)
-
D2(mm)
-
H(mm)
-
T(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
