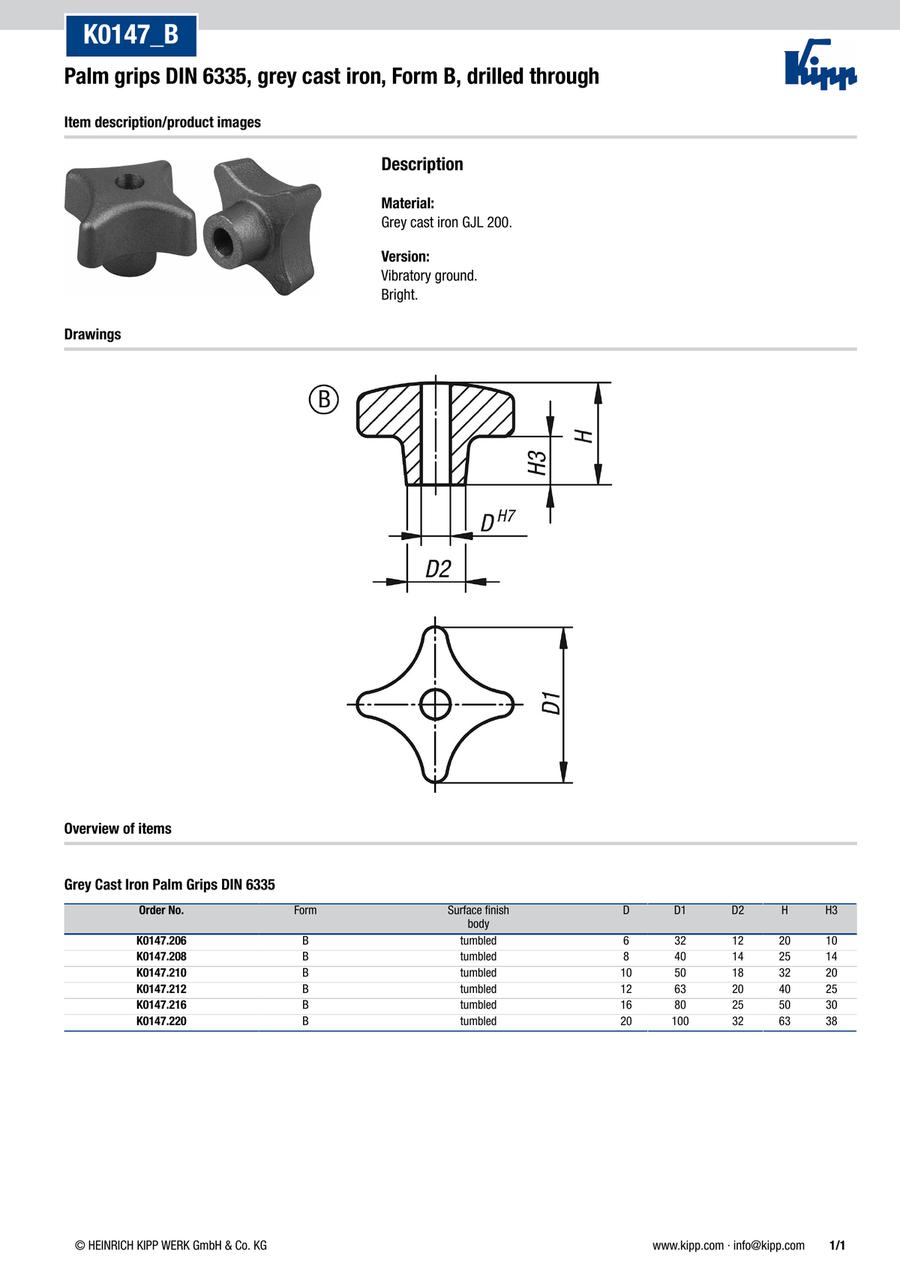

Palm grips DIN 6335 grey cast iron, Form B, drilled through (K0147)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form B: through hole
· Version: vibratory ground
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0147.206 |
| K0147.208 |
| K0147.210 |
| K0147.212 |
| K0147.216 |
| K0147.220 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (φ) | D=bore (mm) | D2 (mm) | H=Height (mm) | H3 | |
|---|---|---|---|---|---|---|---|---|---|
1.79 € | 1 | 4 Days | 32 | 6 | 12 | 20 | 10 | ||
2.48 € | 1 | 4 Days | 40 | 8 | 14 | 25 | 14 | ||
3.25 € | 1 | 4 Days | 50 | 10 | 18 | 32 | 20 | ||
4.39 € | 1 | 4 Days | 63 | 12 | 20 | 40 | 25 | ||
7.18 € | 1 | 4 Days | 80 | 16 | 25 | 50 | 30 | ||
13.92 € | 1 | 4 Days | 100 | 20 | 32 | 63 | 38 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Grey cast iron | Form(mm) | B |
|---|
Configure
Basic Attributes
-
Outside diameter(φ)
-
D=bore(mm)
-
D2(mm)
-
H=Height(mm)
-
H3
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
