    KIPP

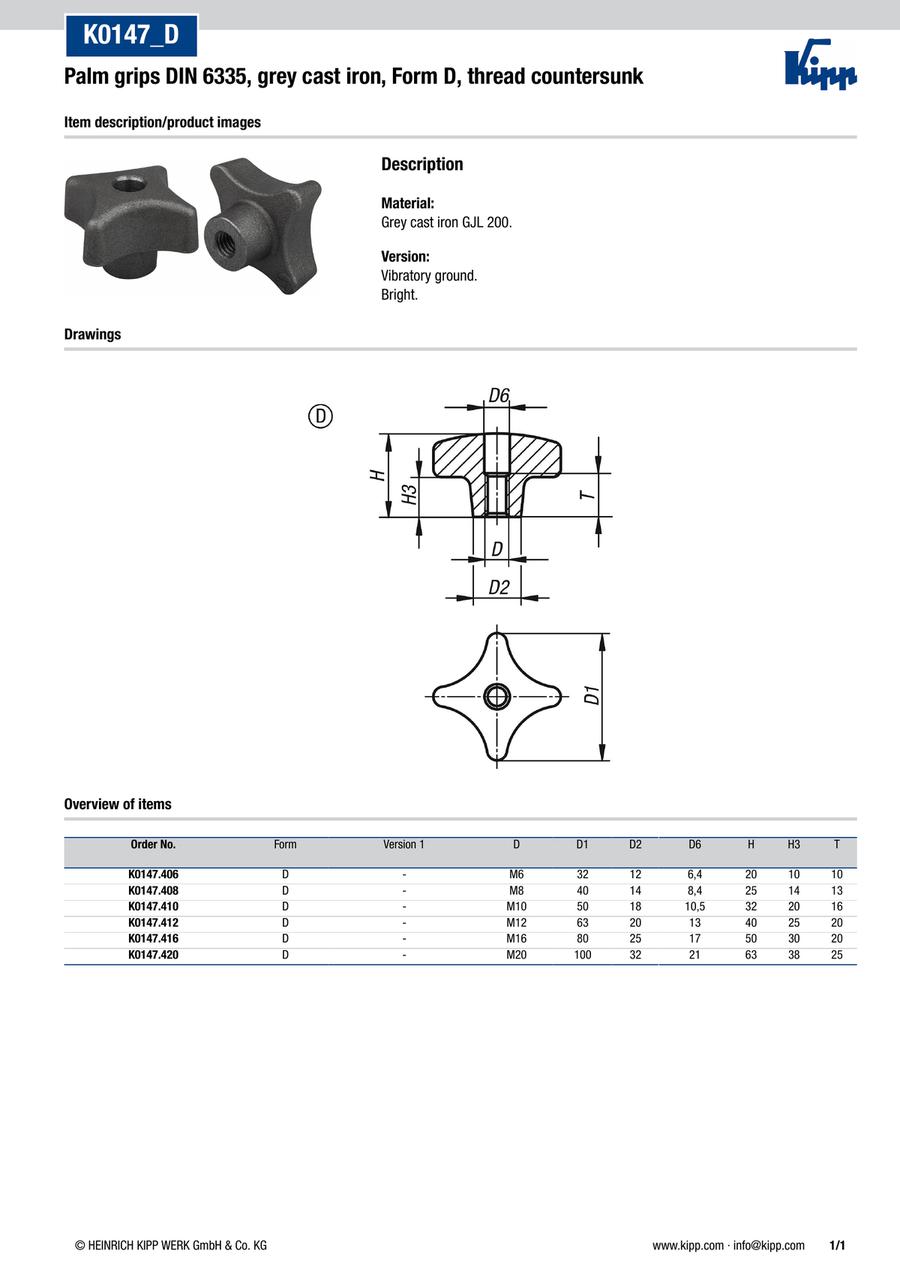

    Palm grips DIN 6335 grey cast iron, Form D thread countersunk (K0147)

    Palm grips DIN 6335 grey cast iron, Form D thread countersunk (K0147)

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0147.406
    K0147.408
    K0147.410
    K0147.412
    K0147.416
    K0147.420

    Thread

    Outside diameter

    (φ)

    D2

    (mm)

    D6

    (mm)

    H=Height

    (mm)

    H3

    T=thread depth

    (mm)

    		Minimum order quantity
    M6
    32
    12
    6.4
    20
    10
    10
    1 pieces
    M8
    40
    14
    8.4
    25
    14
    13
    1 pieces
    M10
    50
    18
    10.5
    32
    20
    16
    1 pieces
    M12
    63
    20
    13
    40
    25
    20
    1 pieces
    M16
    80
    25
    17
    50
    30
    20
    1 pieces
    M20
    100
    32
    21
    63
    38
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.79 €
    ( 2.13 € )
    4 working days
    2.48 €
    ( 2.95 € )
    4 working days
    3.25 €
    ( 3.87 € )
    4 working days
    4.39 €
    ( 5.22 € )
    4 working days
    7.18 €
    ( 8.54 € )
    4 working days
    13.92 €
    ( 16.56 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form D: tapped and counterbored

    · Version: vibratory ground
