    KIPP

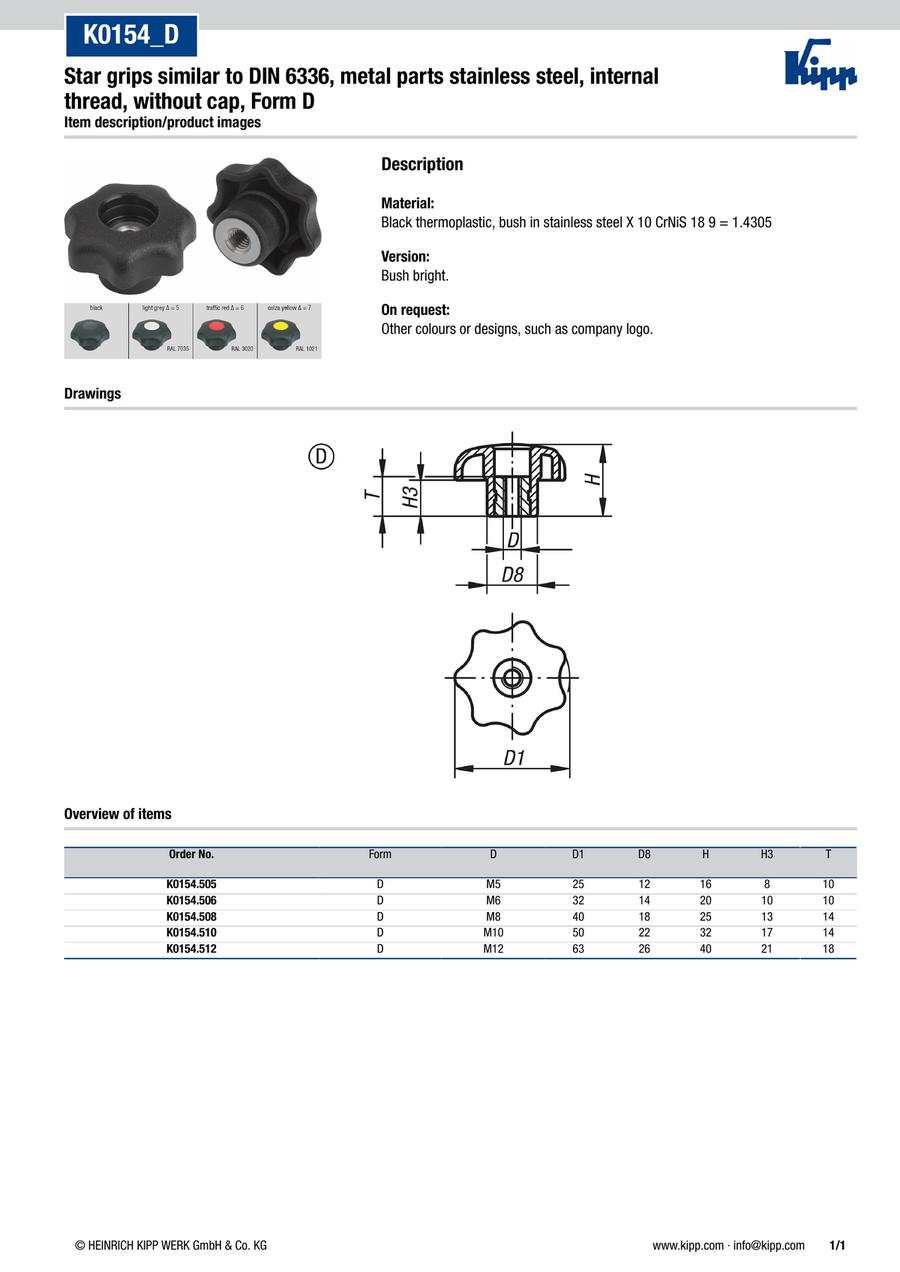

    Star grips similar to DIN 6336, metal parts stainless steel internal thread without cap, Form D (K0154)

    Star grips similar to DIN 6336, metal parts stainless steel internal thread without cap, Form D (K0154)

    Part number:

    Still undefined. 13 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0154.504
    K0154.505
    K0154.5051
    K0154.506
    K0154.5061
    K0154.508
    K0154.5081
    K0154.510
    K0154.5101
    K0154.5102
    K0154.512
    K0154.5121
    K0154.516

    Thread

    Outside diameter

    (φ)

    D8

    (mm)

    H=Height

    (mm)

    H3

    T=thread depth

    (mm)

    DIN

    Weight

    PL Edelstahl

    RoHS

    		Minimum order quantity
    M4
    25
    12
    16
    8
    10
    similar to DIN 6336
    0.0070
    true
    true
    1 pieces
    M5
    25
    12
    16
    8
    10
    -
    -
    -
    -
    1 pieces
    M5
    32
    14
    20
    10
    10
    similar to DIN 6336
    0.0090
    true
    true
    1 pieces
    M6
    32
    14
    20
    10
    10
    -
    -
    -
    -
    1 pieces
    M6
    25
    12
    16
    8
    10
    similar to DIN 6336
    0.0060
    true
    true
    1 pieces
    M8
    40
    18
    25
    13
    14
    -
    -
    -
    -
    1 pieces
    M8
    50
    22
    32
    17
    14
    similar to DIN 6336
    0.0240
    true
    true
    1 pieces
    M10
    50
    22
    32
    17
    14
    -
    -
    -
    -
    1 pieces
    M10
    40
    18
    25
    13
    14
    similar to DIN 6336
    0.0150
    true
    true
    1 pieces
    M10
    63
    26
    40
    21
    14
    similar to DIN 6336
    0.0370
    true
    true
    1 pieces
    M12
    63
    26
    40
    21
    18
    -
    -
    -
    -
    1 pieces
    M12
    50
    22
    32
    17
    18
    similar to DIN 6336
    0.0370
    true
    true
    1 pieces
    M16
    63
    26
    40
    21
    18
    similar to DIN 6336
    0.0410
    true
    true
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.27 €
    ( 1.51 € )
    4 working days
    1.27 €
    ( 1.51 € )
    4 working days
    1.30 €
    ( 1.55 € )
    4 working days
    1.30 €
    ( 1.55 € )
    4 working days
    1.27 €
    ( 1.51 € )
    4 working days
    1.52 €
    ( 1.81 € )
    4 working days
    2.23 €
    ( 2.65 € )
    4 working days
    2.23 €
    ( 2.65 € )
    4 working days
    1.52 €
    ( 1.81 € )
    4 working days
    4.12 €
    ( 4.90 € )
    4 working days
    4.12 €
    ( 4.90 € )
    4 working days
    2.23 €
    ( 2.65 € )
    4 working days
    4.12 €
    ( 4.90 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form D: tapped bush without cap

    · Cap in various colour combinations
