    KIPP

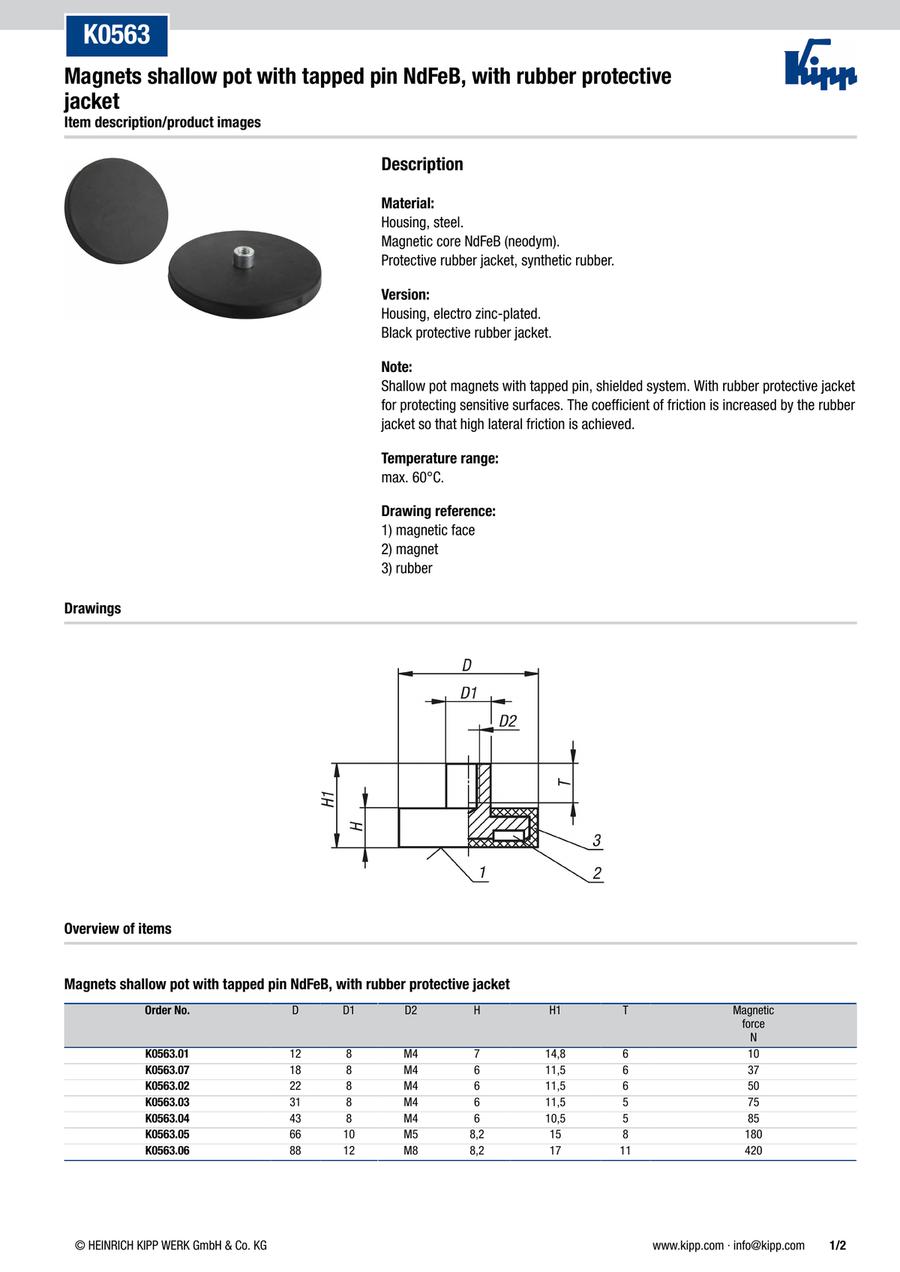

    Magnets shallow pot with tapped pin NdFeB, with rubber protective jacket (K0563)

    Magnets shallow pot with tapped pin NdFeB, with rubber protective jacket (K0563)

    Part number:

    Still undefined. 7 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0563.01
    K0563.02
    K0563.03
    K0563.04
    K0563.05
    K0563.06
    K0563.07

    Attraction Force (Specific)

    (N)

    Outer Diameter

    (Ø)

    D1

    (mm)

    D2=Thread

    H=Height

    (mm)

    H1=Total height

    (mm)

    T=thread depth

    (mm)

    		Minimum order quantity
    10
    12
    8
    M4
    7
    14.8
    6
    1 pieces
    50
    22
    8
    M4
    6
    11.5
    6
    1 pieces
    75
    31
    8
    M4
    6
    11.5
    5
    1 pieces
    85
    43
    8
    M4
    6
    10.5
    5
    1 pieces
    180
    66
    10
    M5
    8.2
    15
    8
    1 pieces
    420
    88
    12
    M8
    8.2
    17
    11
    1 pieces
    -
    18
    8
    M4
    6
    11.5
    6
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    4.07 €
    ( 4.84 € )
    4 working days
    6.91 €
    ( 8.22 € )
    4 working days
    8.84 €
    ( 10.52 € )
    4 working days
    9.26 €
    ( 11.02 € )
    4 working days
    17.45 €
    ( 20.77 € )
    4 working days
    37.24 €
    ( 44.32 € )
    4 working days
    6.61 €
    ( 7.87 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Protection for sensitive surfaces

    · Temperature range up to 60 °C

    · Shielded system
