Configure
- B=Thread length(mm)
- 30
- 40
- 50
- 70
- 80
- D3(mm)
- 10
- 12
- H=Height(mm)
- 30
- 40
- 50
- 70
- 80
- Ball Ø(mm)
- 13
- 15
- SW(mm)
- 8
- 10
- Load rating max. (static load only)(kN)
- 37
- 55
- Order No. for stainless steel insert
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

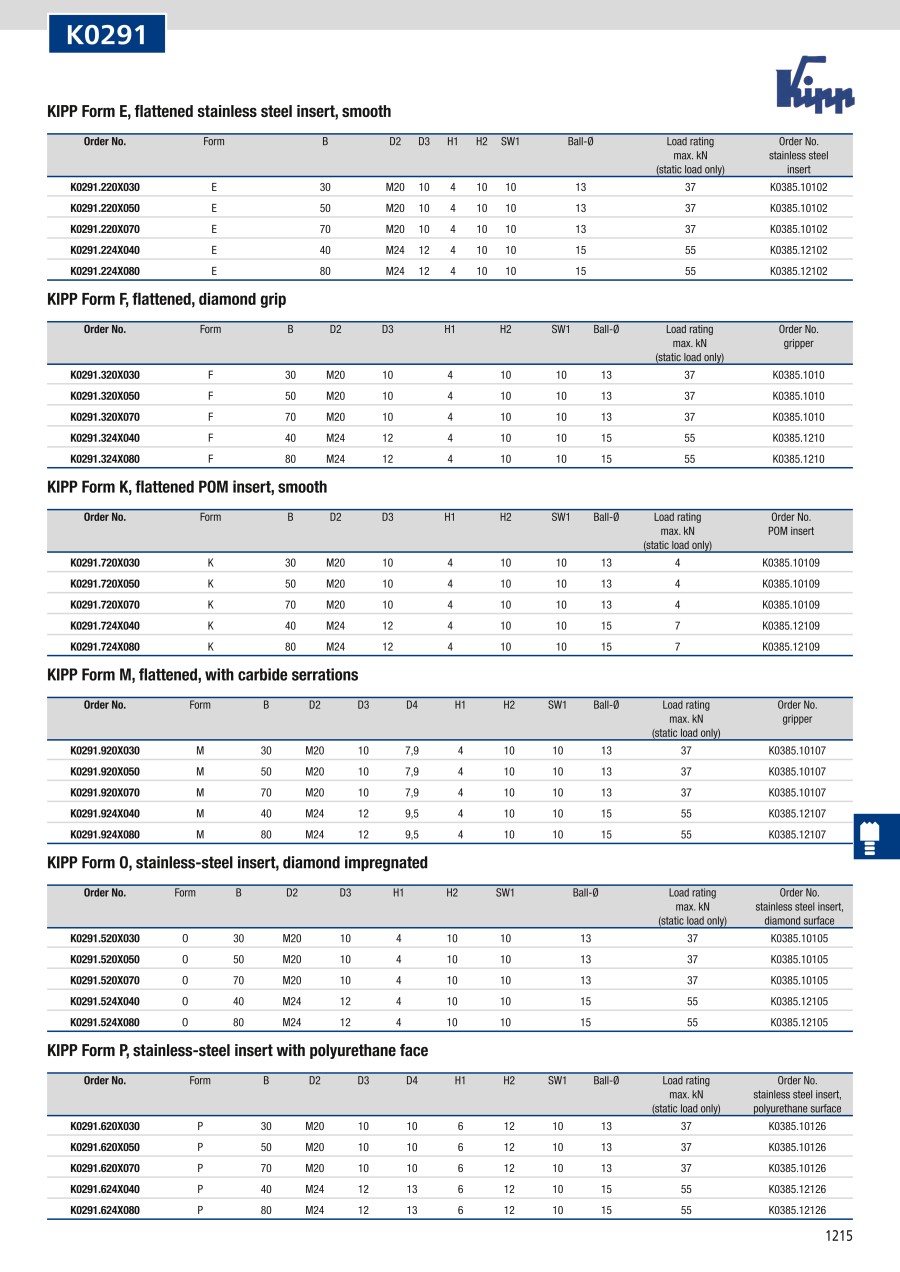

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, hexagon socket, Form E, flattened stainless steel insert smooth (K0291)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
73.59 € ( 87.57 € ) | 4 working days |
74.59 € ( 88.76 € ) | 4 working days |
79.64 € ( 94.77 € ) | 4 working days |
93.01 € ( 110.68 € ) | 4 working days |
98.73 € ( 117.49 € ) | 4 working days |
More Information
Basic information
· Serve as supports, stops and thrust pads
· Application sectors: machine and fixture construction, assembly
· Ball secured against rotation
· O-ring for protection against dirt and foreign particles
