    KIPP

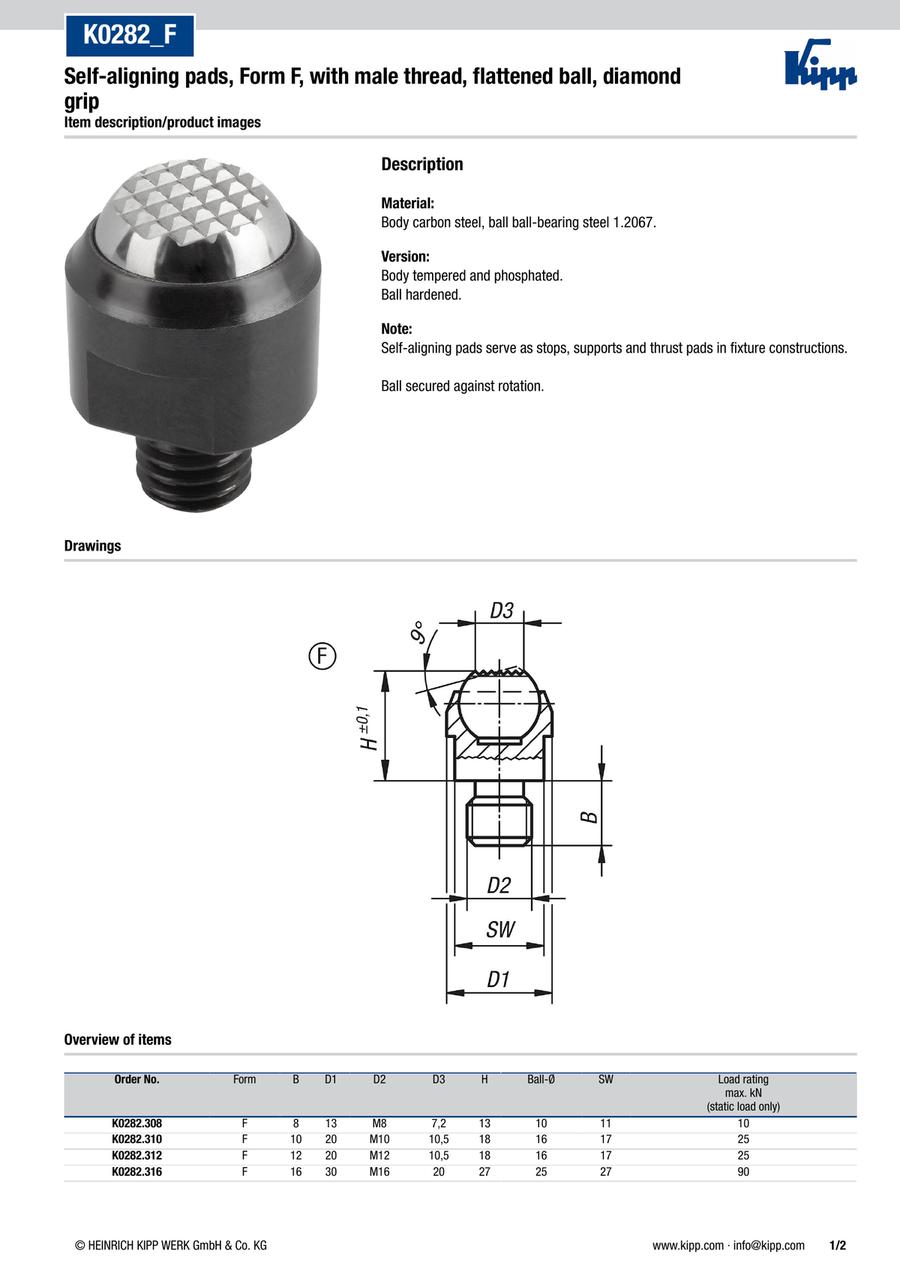

    Self-aligning pads, Form F, male thread, flattened ball, diamond grip (K0282)

    Self-aligning pads, Form F, male thread, flattened ball, diamond grip (K0282)

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0282.308
    K0282.310
    K0282.312
    K0282.316
    K0282.320

    B=Thread length

    (mm)

    D1=Outside diameter

    (mm)

    D2=Thread

    D3

    (mm)

    H=Height

    (mm)

    Ball Ø

    (mm)

    SW

    (mm)

    Load rating max. (static load only)

    (kN)

    		Minimum order quantity
    8
    13
    M8
    7.2
    13
    10
    11
    10
    1 pieces
    10
    20
    M10
    10.5
    18
    16
    17
    25
    1 pieces
    12
    20
    M12
    10.5
    18
    16
    17
    25
    1 pieces
    16
    30
    M16
    20
    27
    25
    27
    90
    1 pieces
    20
    50
    M20
    34.5
    35
    40
    41
    165
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    32.97 €
    ( 39.23 € )
    4 working days
    45.92 €
    ( 54.64 € )
    4 working days
    45.92 €
    ( 54.64 € )
    4 working days
    56.43 €
    ( 67.15 € )
    4 working days
    178.08 €
    ( 211.92 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Serve as supports, stops and thrust pads

    · Application sectors: machine and fixture construction, assembly

    · Ball secured against rotation

    · ball point hardened
