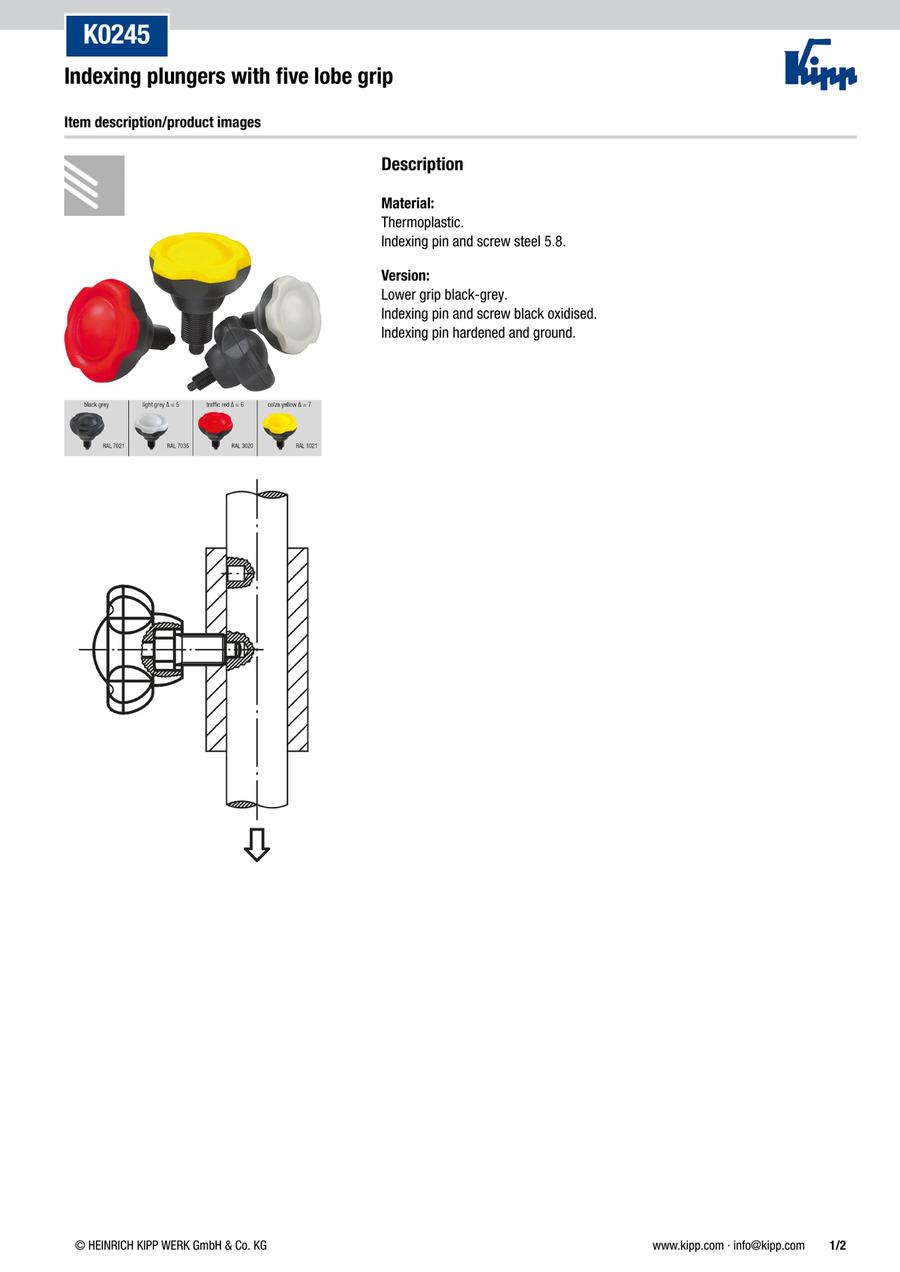

Indexing plungers with five lobe grip (K0245)

Indexing plungers with five lobe grip (K0245)

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K0245.1105
    K0245.11055
    K0245.11056
    K0245.11057
    K0245.1206
    K0245.12065
    K0245.12066
    K0245.12067
    K0245.1308
    K0245.13085
    K0245.13086
    K0245.13087
    K0245.1410
    K0245.14105
    K0245.14106
    K0245.14107

    Stroke S

    (mm)

    Colour Cap

    Size

    D=pin diameter

    (mm)

    D1=Thread

    D2

    (mm)

    D3

    (mm)

    D4

    (mm)

    H1

    (mm)

    H2

    (mm)

    L=Length

    (mm)

    L1=thread length

    (mm)

    SW

    (mm)

    		Minimum order quantity
    5
    black grey RAL 7021
    1
    5
    M10x1
    50
    22.2
    28.2
    17.8
    11.5
    52.8
    13
    13
    1 pieces
    5
    light grey RAL 7035
    1
    5
    M10x1
    50
    22.2
    28.2
    17.8
    11.5
    52.8
    13
    13
    1 pieces
    5
    traffic red RAL 3020
    1
    5
    M10x1
    50
    22.2
    28.2
    17.8
    11.5
    52.8
    13
    13
    1 pieces
    5
    rape yellow RAL 1021
    1
    5
    M10x1
    50
    22.2
    28.2
    17.8
    11.5
    52.8
    13
    13
    1 pieces
    6
    black grey RAL 7021
    2
    6
    M12x1,5
    50
    22.2
    28.2
    17.8
    11.5
    57.8
    17
    14
    1 pieces
    6
    light grey RAL 7035
    2
    6
    M12x1,5
    50
    22.2
    28.2
    17.8
    11.5
    57.8
    17
    14
    1 pieces
    6
    traffic red RAL 3020
    2
    6
    M12x1,5
    50
    22.2
    28.2
    17.8
    11.5
    57.8
    17
    14
    1 pieces
    6
    rape yellow RAL 1021
    2
    6
    M12x1,5
    50
    22.2
    28.2
    17.8
    11.5
    57.8
    17
    14
    1 pieces
    8
    black grey RAL 7021
    3
    8
    M16x1,5
    63
    28
    35.5
    22.5
    14.5
    74
    22
    19
    1 pieces
    8
    light grey RAL 7035
    3
    8
    M16x1,5
    63
    28
    35.5
    22.5
    14.5
    74
    22
    19
    1 pieces
    8
    traffic red RAL 3020
    3
    8
    M16x1,5
    63
    28
    35.5
    22.5
    14.5
    74
    22
    19
    1 pieces
    8
    rape yellow RAL 1021
    3
    8
    M16x1,5
    63
    28
    35.5
    22.5
    14.5
    74
    22
    19
    1 pieces
    10
    black grey RAL 7021
    4
    10
    M20x1,5
    63
    28
    35.5
    22.5
    14.5
    78
    24
    22
    1 pieces
    10
    light grey RAL 7035
    4
    10
    M20x1,5
    63
    28
    35.5
    22.5
    14.5
    78
    24
    22
    1 pieces
    10
    traffic red RAL 3020
    4
    10
    M20x1,5
    63
    28
    35.5
    22.5
    14.5
    78
    24
    22
    1 pieces
    10
    rape yellow RAL 1021
    4
    10
    M20x1,5
    63
    28
    35.5
    22.5
    14.5
    78
    24
    22
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    8.92 €
    ( 10.61 € )
    4 working days
    8.92 €
    ( 10.61 € )
    4 working days
    8.92 €
    ( 10.61 € )
    4 working days
    8.92 €
    ( 10.61 € )
    4 working days
    9.89 €
    ( 11.77 € )
    4 working days
    9.89 €
    ( 11.77 € )
    4 working days
    9.89 €
    ( 11.77 € )
    4 working days
    9.89 €
    ( 11.77 € )
    4 working days
    12.72 €
    ( 15.14 € )
    4 working days
    12.72 €
    ( 15.14 € )
    4 working days
    12.72 €
    ( 15.14 € )
    4 working days
    12.72 €
    ( 15.14 € )
    4 working days
    18.78 €
    ( 22.35 € )
    4 working days
    18.78 €
    ( 22.35 € )
    4 working days
    18.78 €
    ( 22.35 € )
    4 working days
    18.78 €
    ( 22.35 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Indexing plungers facilitate indexing and locking

    · Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

    · High stability

    · The NOVO grip product range represents an attractive design and an easy-to-grip form

    · Various colours available
