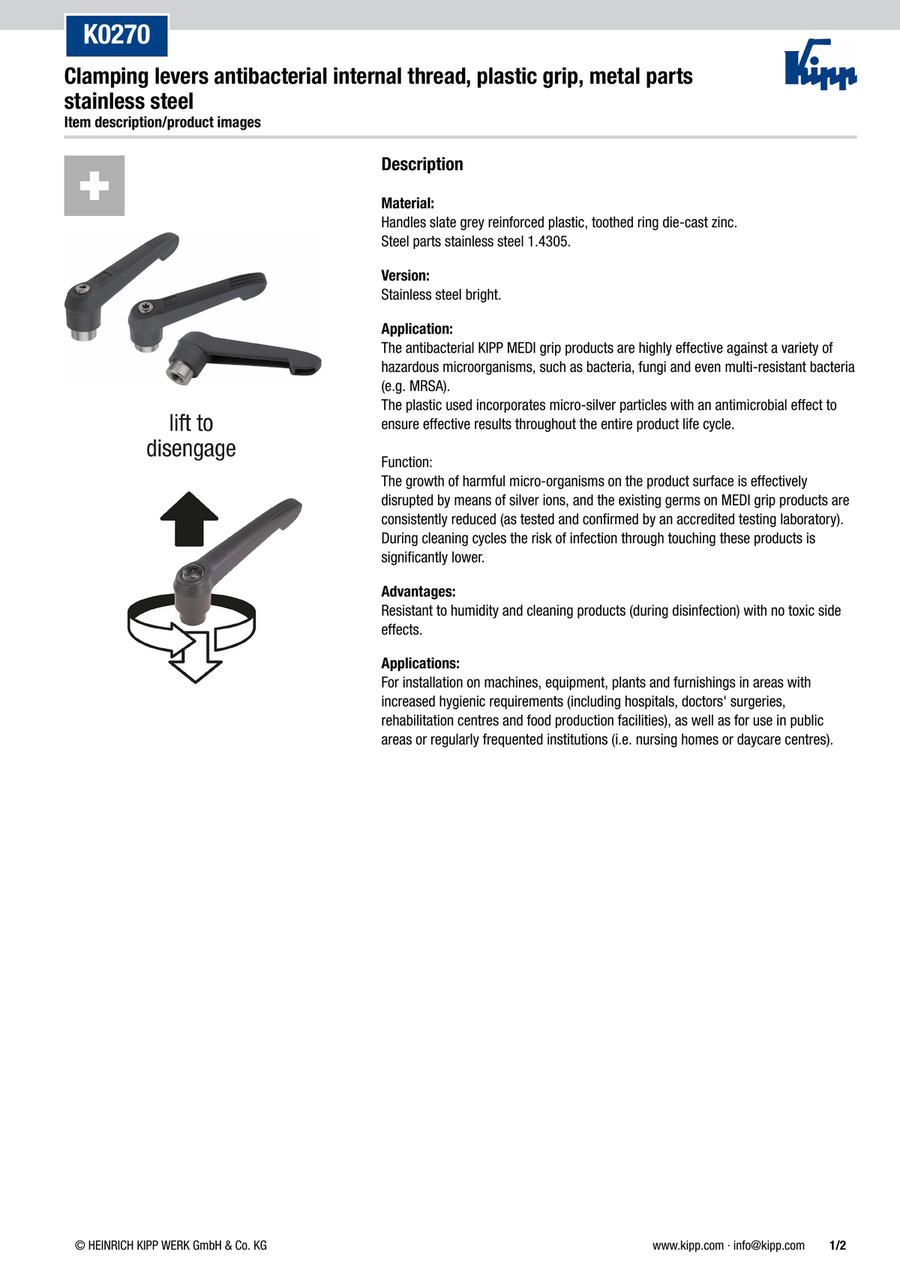

Clamping levers antibacterial internal thread plastic grip, metal parts stainless steel (K0270)
· Application areas: medical technology, rehabilitation sector, food production, public facilities, kitchens and sanitation sector
· MEDI grip: special plastic with an antibacterial effect over a long period due to completely impregnated material
· Advantages: resistant to humidity and cleaning products, no toxic side effects, effective against multi-resistant germs, reduces risk of infection
· The risk of spreading the microorganisms is prevented and the existing germs are completely eliminated in a few hours
· MEDI grip: special plastic with an antibacterial effect over a long period due to completely impregnated material
· Advantages: resistant to humidity and cleaning products, no toxic side effects, effective against multi-resistant germs, reduces risk of infection
· The risk of spreading the microorganisms is prevented and the existing germs are completely eliminated in a few hours
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0270.12206144 |
| K0270.12208144 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | X=thread | |
|---|---|---|---|---|---|
10.60 € | 1 | 4 Days | M6 | ||
10.60 € | 1 | 4 Days | M8 |
Loading...
Basic information
| Rotating Radius R(mm) | 65 | Main Body Material | Other | Main material | Plastic |
|---|---|---|---|---|---|
| Main colour | slate grey RAL 7015 | Size | 2 | A(mm) | 65 |
| A1=Handle length(mm) | 75 | B(mm) | 9.5 | D(mm) | 13.5 |
| D1(mm) | 18 | D2(mm) | 19.5 | H(mm) | 28.5 |
| H1(mm) | 6.5 | H2(mm) | 17.5 | H3=handle height(mm) | 41.5 |
| H4(mm) | 45.5 | T=thread depth(mm) | 12 | No. of teeth | 20 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
