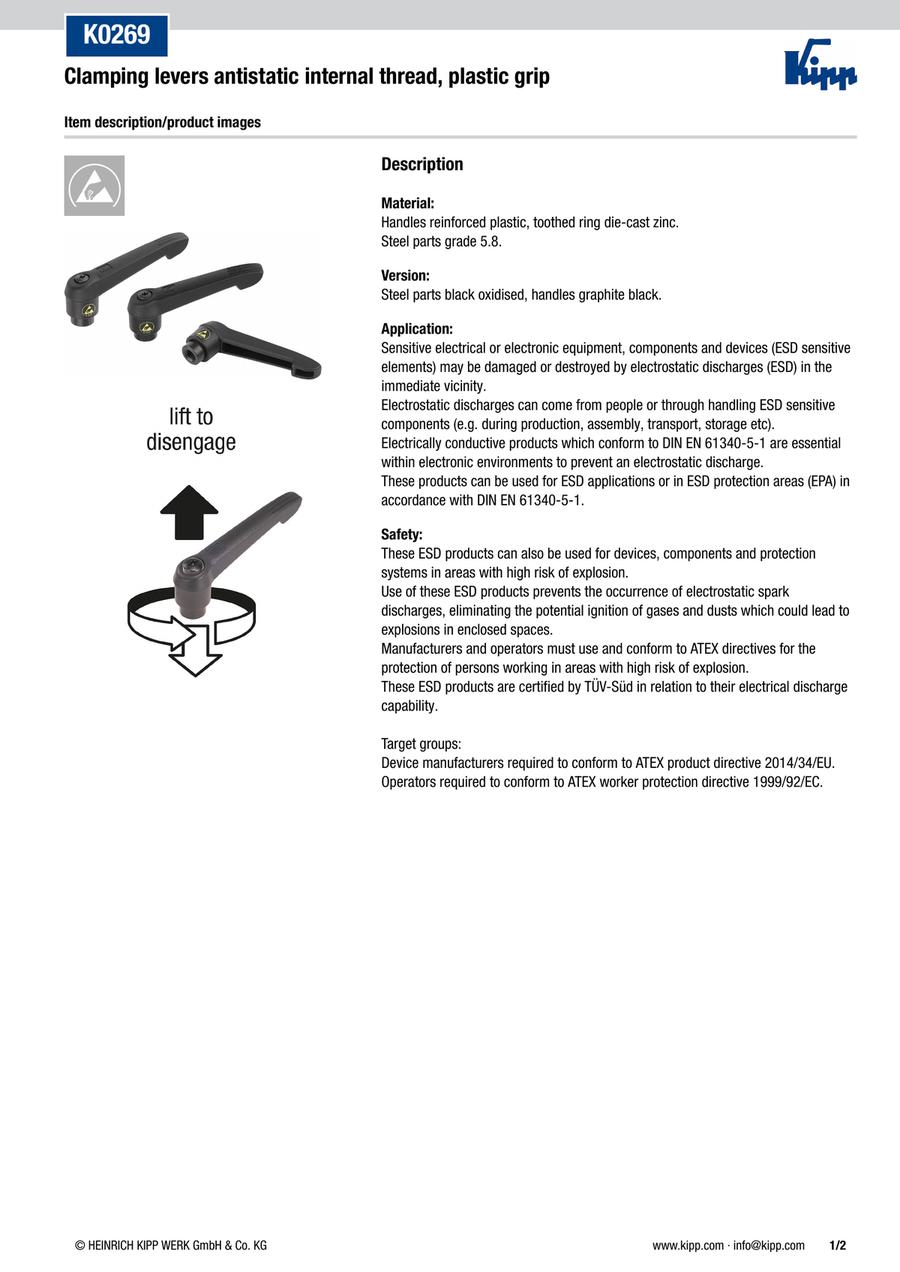

Clamping levers antistatic internal thread plastic grip (K0269)
· To protect sensitive electrical or electronic parts, components and devices
· Application fields: electronic assemblies, equipment manufacturing according to ATEX directives
· Made from a special electrically conductive plastic
· ESD operating parts from norelem have been specially developed for use in ESD protection areas
· Application fields: electronic assemblies, equipment manufacturing according to ATEX directives
· Made from a special electrically conductive plastic
· ESD operating parts from norelem have been specially developed for use in ESD protection areas
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0269.1120624 |
| K0269.1120824 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | X=thread | |
|---|---|---|---|---|---|
8.75 € | 1 | 4 Days | M6 | ||
8.75 € | 1 | 4 Days | M8 |
Loading...
Basic information
| A=Handle length(mm) | 65 | Main Body Material | Other | Main material | Plastic |
|---|---|---|---|---|---|
| Main colour | graphite black RAL 9011 | Component material | Steel | Size | 2 |
| A(mm) | 65 | A1=Handle length(mm) | 75 | B(mm) | 9.5 |
| D(mm) | 13.5 | D1(mm) | 18 | D2(mm) | 19.5 |
| H(mm) | 28.5 | H1(mm) | 6.5 | H2(mm) | 17.5 |
| H3=handle height(mm) | 41.5 | H4(mm) | 45.5 | T=thread depth(mm) | 12 |
| No. of teeth | 20 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
