Configure
- B=Width(mm)
- 25
- 39
- 58
- H=Height(mm)
- 35
- 56
- 85
- H1(mm)
- 24
- 38
- 60
- H2(mm)
- 12.4
- 20
- 30
- A=Length(mm)
- 73
- 110
- 170
- D(mm)
- 12.2
- 18.2
- 26.2
- D2(mm)
- 7
- 11
- 17
- D4(mm)
- 16
- 24
- 35
- D5(mm)
- 6.5
- 10.5
- 17
- E(mm)
- 2.5
- 4
- 7
- E1(mm)
- 11
- 18
- 27
- K(mm)
- 25.5
- 40.5
- 60.5
- K1(mm)
- 2.5
- 4
- 7
- L(mm)
- 27
- 39
- 61
- X(mm)
- 12
- 20.5
- 32
- Y(mm)
- 4.5
- 8
- 13
- F=Retaining force(N)
- 10000
- 40000
- 100000
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

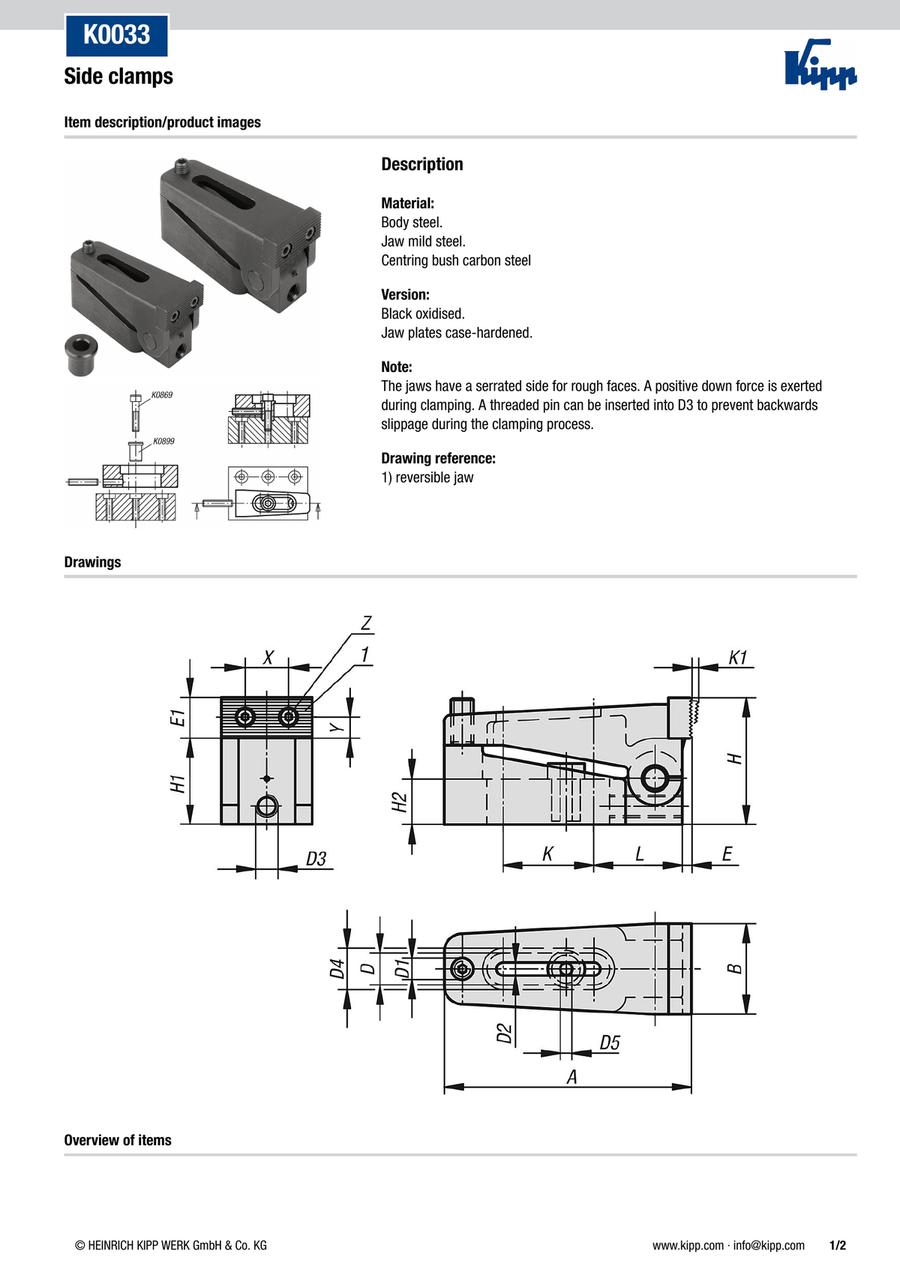

Side clamps (K0033)
Part number:
possible part numbers found.More Information
Basic information
· Mountable directly on machine tables
· With positive down force
· Flexible application
· Clamping jaw case-hardened
