    KIPP

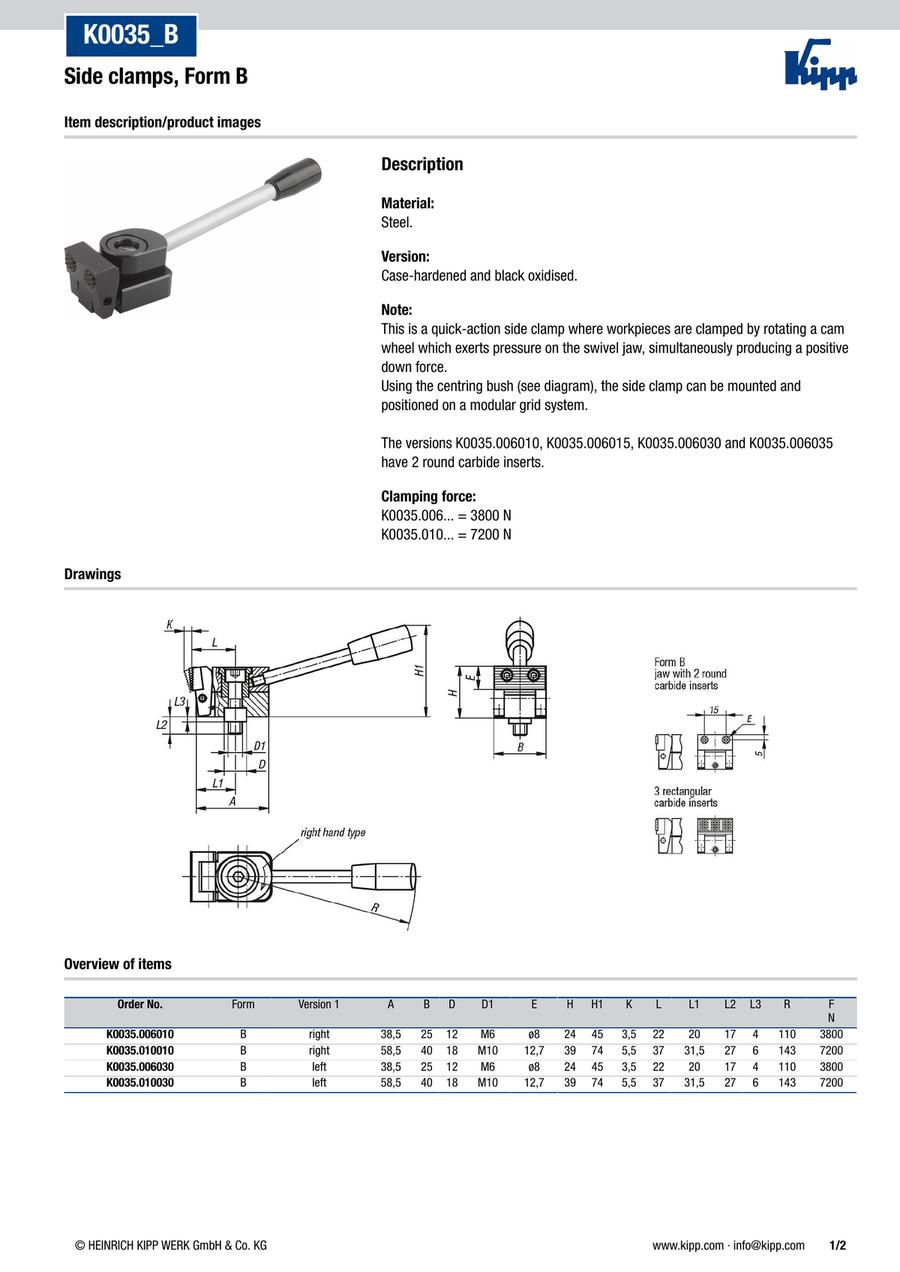

    Side clamps, Form B (K0035)

    Side clamps, Form B (K0035)

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0035.006010
    K0035.006030
    K0035.010010
    K0035.010030

    Version 1

    B=Width

    (mm)

    D1

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    A=Length

    (mm)

    D

    (mm)

    E

    (mm)

    K

    (mm)

    L

    (mm)

    R

    (mm)

    F=Retaining force

    (N)

    		Minimum order quantity
    right
    25
    M6
    24
    45
    20
    17
    4
    38.5
    12
    ø8
    3.5
    22
    110
    3800
    1 pieces
    left
    25
    M6
    24
    45
    20
    17
    4
    38.5
    12
    ø8
    3.5
    22
    110
    3800
    1 pieces
    right
    40
    M10
    39
    74
    31.5
    27
    6
    58.5
    18
    12.7
    5.5
    37
    143
    7200
    1 pieces
    left
    40
    M10
    39
    74
    31.5
    27
    6
    58.5
    18
    12.7
    5.5
    37
    143
    7200
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    120.19 €
    ( 143.03 € )
    4 working days
    119.99 €
    ( 142.79 € )
    4 working days
    204.10 €
    ( 242.88 € )
    4 working days
    204.10 €
    ( 242.88 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Mountable directly on machine tables

    · With positive down force

    · Flexible application

    · Clamping jaw case-hardened

    · Manual actuation
