KIPP

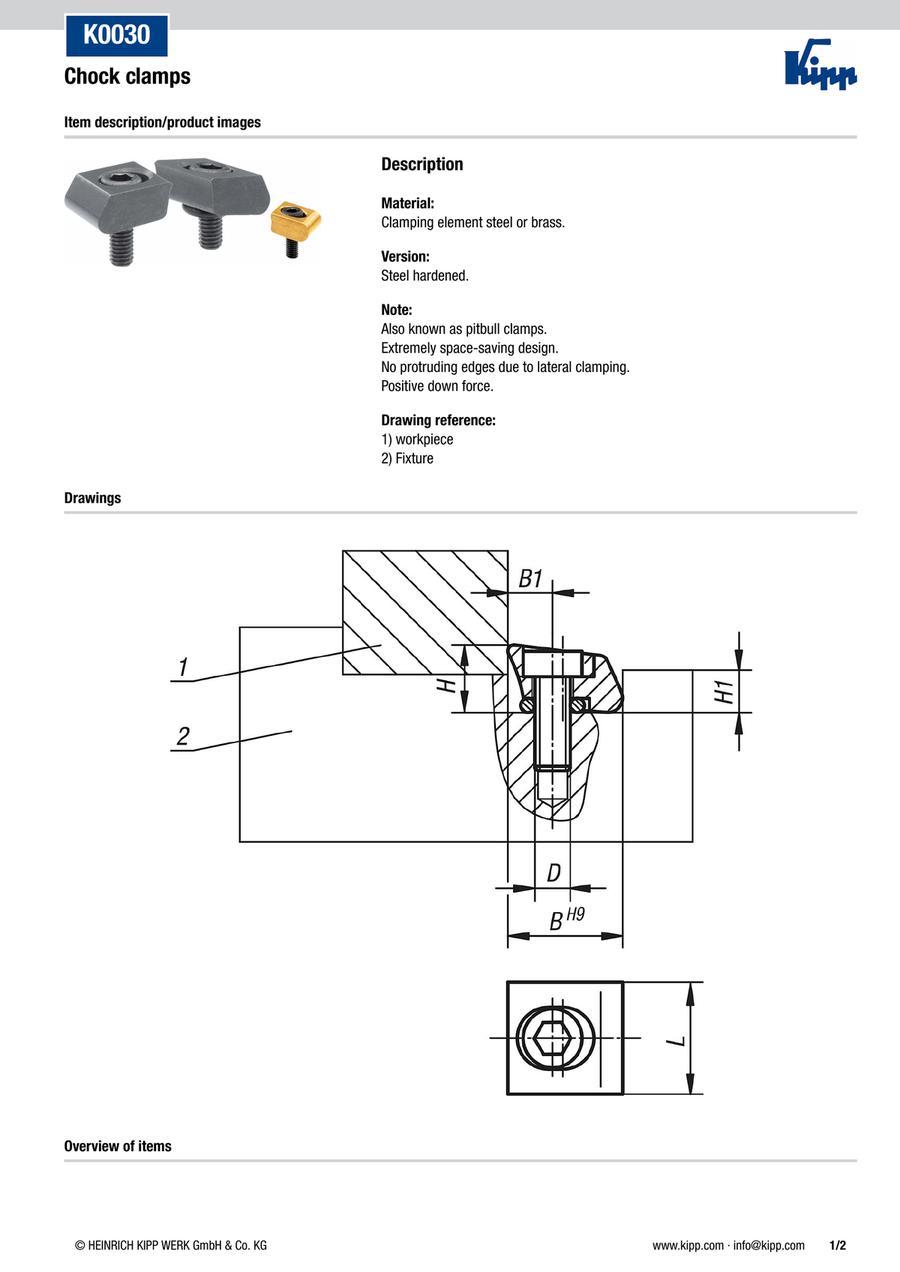

Chock clamps (K0030)

Chock clamps (K0030)

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K0030.110
    K0030.113
    K0030.119
    K0030.210
    K0030.213
    K0030.219
    K0030.310
    K0030.313
    K0030.319

    Main material

    Version

    Form

    B

    (mm)

    B1

    (mm)

    D=Thread

    H

    (mm)

    H1

    (mm)

    L

    (mm)

    Clamping travel

    (mm)

    Tightening torque max.

    (Nm)

    Clamping force

    (kN)

    		Minimum order quantity
    steel
    with knife edge
    A
    9.5
    3.8
    M2.5x8
    6
    3.6
    9.5
    0.15
    1.8
    2.8
    1 pieces
    steel
    with knife edge
    A
    12.7
    5.1
    M4x12
    8
    4.8
    13
    0.4
    5.6
    6.6
    1 pieces
    steel
    with knife edge
    A
    19.05
    7.6
    M6X16
    11.5
    7.2
    19
    0.6
    22.5
    16
    1 pieces
    steel
    with blunt edge
    B
    9.5
    3.8
    M2.5x8
    6
    3.6
    9.5
    0.15
    1.8
    2.8
    1 pieces
    steel
    with blunt edge
    B
    12.7
    5.1
    M4x12
    8
    4.8
    13
    0.4
    5.6
    6.6
    1 pieces
    steel
    with blunt edge
    B
    19.05
    7.6
    M6X16
    11.5
    7.2
    19
    0.6
    22.5
    16
    1 pieces
    brass
    with blunt edge
    B
    9.5
    3.8
    M2.5x8
    6
    3.6
    9.5
    0.15
    0.56
    0.9
    1 pieces
    brass
    with blunt edge
    B
    12.7
    5.1
    M4x12
    8
    4.8
    13
    0.4
    2.8
    1.8
    1 pieces
    brass
    with blunt edge
    B
    19.05
    7.6
    M6X16
    11.5
    7.2
    19
    0.6
    5.6
    4.2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    27.75 €
    ( 33.02 € )
    4 working days
    28.97 €
    ( 34.47 € )
    4 working days
    37.17 €
    ( 44.23 € )
    4 working days
    27.58 €
    ( 32.82 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
    33.96 €
    ( 40.41 € )
    4 working days
    28.76 €
    ( 34.22 € )
    4 working days
    29.83 €
    ( 35.50 € )
    4 working days
    34.57 €
    ( 41.14 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Space saving design

    · Lateral clamping eliminates protruding edges

    · Brass version protects the workpieces

    · Steel version hardened

    · With positive down force
