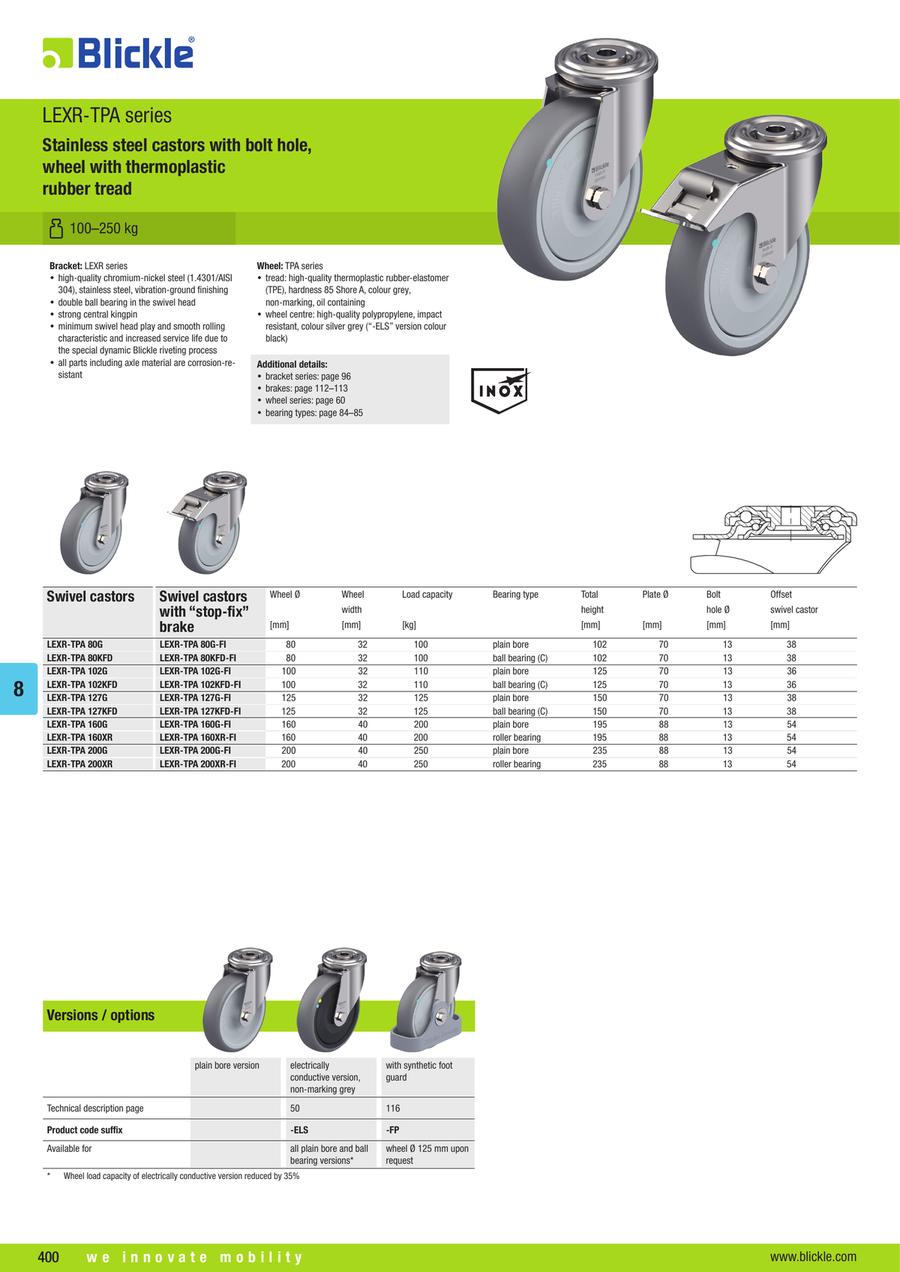

Stainless Steel Swivel Castor, LEXR-TPA Series
Bracket: LEXR series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- all parts including axle material are corrosion-resistant
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Wheel body color | Rustproof | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
63.99 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | 70 | 80 | 25 | plain bore | swivel castor | 102 | 440 | 80 | 32 | silver grey | yes | 100 | ||
69.42 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 70 | 100 | 32 | plain bore | swivel castor | 102 | 440 | 80 | 32 | black | yes | 65 | ||
86.12 € | 1 | 7 Days | 125 | 80.01 to 140.00 | Conductivity | 70 | 100 | 32 | plain bore | swivel castor with brake | 102 | 543 | 80 | 32 | silver grey | yes | 100 | ||
91.56 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 70 | 100 | 32 | plain bore | swivel castor with brake | 102 | 556 | 80 | 32 | black | yes | 65 | ||
70.75 € | 1 | 7 Days | 125 | 80.01 to 140.00 | Conductivity | 70 | 100 | 32 | Ball bearing (C) | swivel castor | 102 | 491 | 80 | 32 | silver grey | no | 100 | ||
76.18 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 70 | 100 | 32 | Ball bearing (C) | swivel castor | 102 | 497 | 80 | 32 | black | no | 65 | ||
93.07 € | 1 | 7 Days | 125 | 80.01 to 140.00 | Conductivity | 70 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 102 | 592 | 80 | 32 | silver grey | no | 100 | ||
98.50 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 70 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 102 | 597 | 80 | 32 | black | no | 65 | ||
67.13 € | 1 | 7 Days | 195 | 80.01 to 140.00 | Conductivity | 70 | 160 | 40 | plain bore | swivel castor | 125 | 508 | 100 | 32 | silver grey | yes | 110 | ||
75.39 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 70 | 160 | 40 | plain bore | swivel castor | 125 | 534 | 100 | 32 | black | yes | 70 | ||
86.10 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | plain bore | swivel castor with brake | 125 | 639 | 100 | 32 | silver grey | yes | 110 | ||
94.35 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 70 | 200 | 40 | plain bore | swivel castor with brake | 125 | 642 | 100 | 32 | black | yes | 70 | ||
76.26 € | 1 | 7 Days | 235 | 80.01 to 140.00 | Conductivity | 70 | 200 | 40 | Ball bearing (C) | swivel castor | 125 | 569 | 100 | 32 | silver grey | no | 110 | ||
84.54 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 70 | 200 | 40 | Ball bearing (C) | swivel castor | 125 | 581 | 100 | 32 | black | no | 70 | ||
95.40 € | 1 | 7 Days | 235 | 80.01 to 140.00 | Conductivity | 70 | 200 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 681 | 100 | 32 | silver grey | no | 110 | ||
103.65 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 70 | 200 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 697 | 100 | 32 | black | no | 70 | ||
73.77 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 70 | 200 | 40 | plain bore | swivel castor | 150 | 590 | 125 | 32 | silver grey | yes | 125 | ||
82.49 € | 1 | 7 Days | 102 | 35.01 to 80.00 | - | 70 | 80 | 32 | plain bore | swivel castor | 150 | 612 | 125 | 32 | black | yes | 80 | ||
92.95 € | 1 | 7 Days | 102 | 80.01 to 140.00 | Conductivity | 70 | 80 | 32 | plain bore | swivel castor with brake | 150 | 726 | 125 | 32 | silver grey | yes | 125 | ||
101.67 € | 1 | 7 Days | 102 | 35.01 to 80.00 | - | 70 | 80 | 32 | plain bore | swivel castor with brake | 150 | 747 | 125 | 32 | black | yes | 80 | ||
82.13 € | 1 | 7 Days | 102 | 80.01 to 140.00 | Conductivity | 70 | 80 | 32 | Ball bearing (C) | swivel castor | 150 | 650 | 125 | 32 | silver grey | no | 125 | ||
90.85 € | 1 | 7 Days | 102 | 35.01 to 80.00 | - | 70 | 80 | 32 | Ball bearing (C) | swivel castor | 150 | 672 | 125 | 32 | black | no | 80 | ||
101.50 € | 1 | 7 Days | 102 | 80.01 to 140.00 | Conductivity | 70 | 80 | 32 | Ball bearing (C) | swivel castor with brake | 150 | 783 | 125 | 32 | silver grey | no | 125 | ||
110.21 € | 1 | 7 Days | 102 | 35.01 to 80.00 | - | 70 | 80 | 32 | Ball bearing (C) | swivel castor with brake | 150 | 805 | 125 | 32 | black | no | 80 | ||
164.70 € | 1 | 7 Days | 102 | 140.01 to 220.00 | Conductivity | 88 | 80 | 32 | plain bore | swivel castor | 195 | 1236 | 160 | 40 | silver grey | yes | 200 | ||
194.15 € | 1 | 7 Days | 125 | 80.01 to 140.00 | - | 88 | 100 | 30 | plain bore | swivel castor | 195 | 1271 | 160 | 40 | black | yes | 130 | ||
211.21 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 30 | plain bore | swivel castor with brake | 195 | 1610 | 160 | 40 | silver grey | yes | 200 | ||
240.65 € | 1 | 7 Days | 150 | 80.01 to 140.00 | - | 88 | 125 | 38 | plain bore | swivel castor with brake | 195 | 1636 | 160 | 40 | black | yes | 130 | ||
183.77 € | 1 | 7 Days | 150 | 140.01 to 220.00 | - | 88 | 125 | 38 | roller bearing | swivel castor | 195 | 1323 | 160 | 40 | silver grey | yes | 200 | ||
230.28 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 88 | 150 | 40 | roller bearing | swivel castor with brake | 195 | 1693 | 160 | 40 | silver grey | yes | 200 | ||
184.60 € | 1 | 7 Days | 190 | 220.01 to 320.00 | - | 88 | 150 | 40 | plain bore | swivel castor | 235 | 1524 | 200 | 40 | silver grey | yes | 250 | ||
222.65 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 88 | 160 | 40 | plain bore | swivel castor | 235 | 1505 | 200 | 40 | black | yes | 160 | ||
229.69 € | 1 | 7 Days | 195 | 220.01 to 320.00 | - | 88 | 160 | 40 | plain bore | swivel castor with brake | 235 | 1850 | 200 | 40 | silver grey | yes | 250 | ||
267.74 € | 1 | 7 Days | 235 | 140.01 to 220.00 | - | 88 | 200 | 50 | plain bore | swivel castor with brake | 235 | 1914 | 200 | 40 | black | yes | 160 | ||
206.45 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 88 | 200 | 50 | roller bearing | swivel castor | 235 | 1540 | 200 | 40 | silver grey | yes | 250 | ||
251.53 € | 1 | 7 Days | 102 | 220.01 to 320.00 | - | 88 | 80 | 25 | roller bearing | swivel castor with brake | 235 | 1952 | 200 | 40 | silver grey | yes | 250 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Rubber, Wheel body material: high-quality polypropylene |
|---|---|---|---|---|---|
| Material | Rubber | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 85 Shore A | Tread color | grey | Tread hydrolysis-resistant | no |
| Non-staining | no | Non-marking | yes | Maximum temperature resistance(°C) | 60 |
| Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Wheel body color
-
Rustproof
- no
- yes
-
Load capacity at 4 km/h(kg)
-
Type
- LEXR-TPA
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
