Configure
- Mounting Height H(mm)
- 110
- 133
- 135
- 155
- Load Range(daN)
- Wheel Characteristics
- Wheel Dia. D(mm)
- 80
- 100
- 125
- Wheel Width B(mm)
- 30
- 32
- 40
- Product type
- Total height(mm)
- 110
- 130
- 155
- Weight(g)
- 1066
- 1200
- 1257
- 1272
- 1468
- 1469
- 1480
- 1600
- Wheel diameter(mm)
- 80
- 100
- 125
- Load capacity at 4 km/h(kg)
- 230
- 320
- 350
- Type
- Est. shipping days
- All
- Within 5 working days
- Within 7 working days
- Within 23 working days

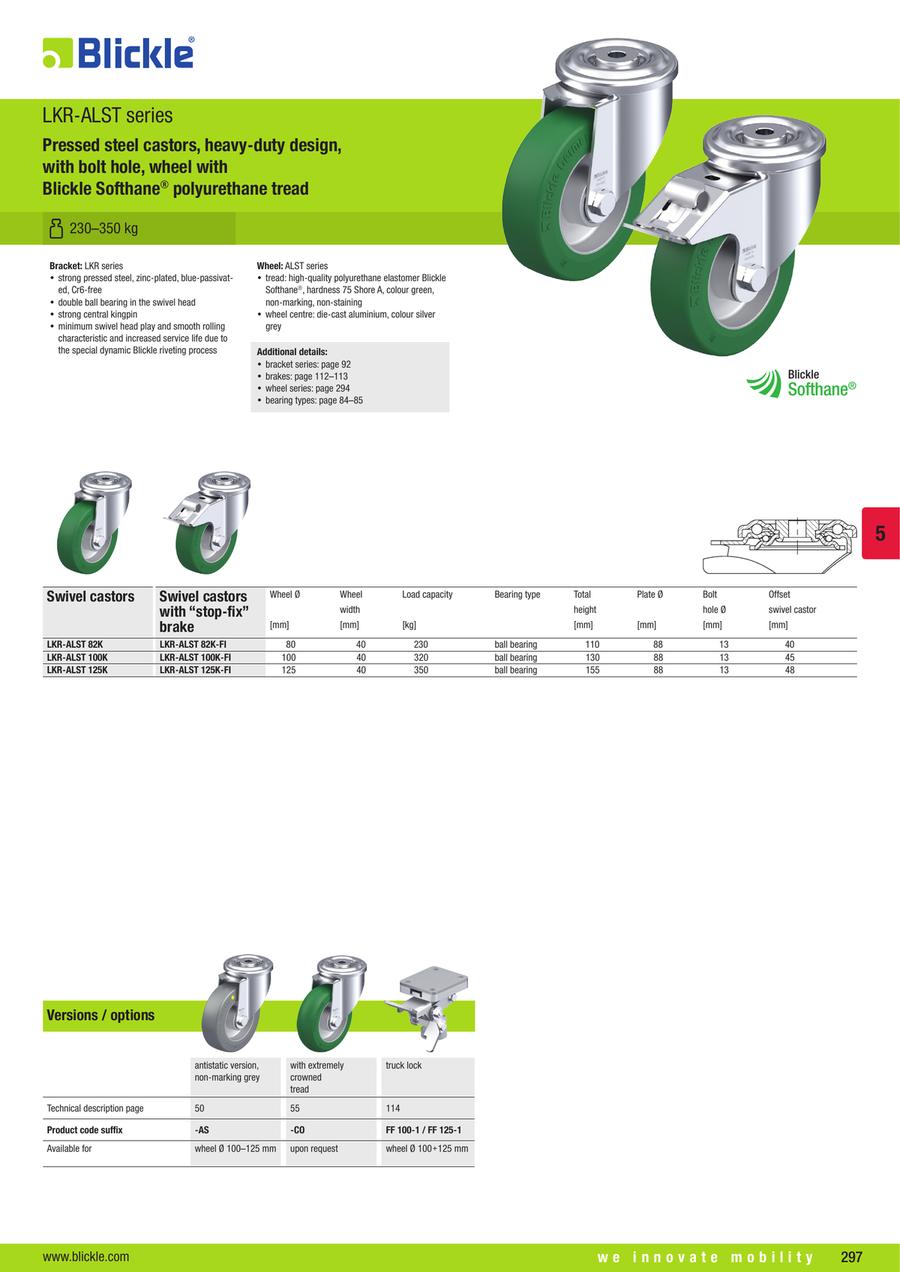

Pressed Steel Swivel Castor, LKR-ALST Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
104.08 € ( 123.86 € ) | 7 working days |
124.32 € ( 147.94 € ) | 5 working days |
107.12 € ( 127.47 € ) | 5 working days |
125.65 € ( 149.52 € ) | 7 working days |
123.45 € ( 146.91 € ) | 5 working days |
141.98 € ( 168.96 € ) | 23 working days |
119.40 € ( 142.09 € ) | 7 working days |
138.10 € ( 164.34 € ) | 7 working days |
137.06 € ( 163.10 € ) | 7 working days |
155.77 € ( 185.37 € ) | 23 working days |
More Information
Basic information
Pressed Steel Swivel Castor, Medium Heavy Duty Brackets, with Bolt Hole Fitting, Heavy Duty Wheel, with Blickle Softhane® Polyurethane Tread, with Aluminium Wheel Centre
Bracket: LKR series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: ALST series
- tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
