Configure
- d2(mm)
- 6.62
- 8.35
- 10.07
- 13.8
- 17.25
- 20.7
- d3(mm)
- 20
- 35
- d4(mm)
- 38
- 59.0
- d5(mm)
- 33.5
- 50.0
- l1(mm)
- 12
- 14.0
- 17
- 22
- 27
- l2(mm)
- 17.8
- 20.0
- 24
- 30
- 36
- l3(mm)
- 25.7
- 36.5
- 42.0
- l4(mm)
- 54.9
- 73.7
- 79.2
- l5(mm)
- 42.5
- 55.6
- l6(mm)
- 46
- 70.0
- l7(mm)
- 68
- 102.0
- l8(mm)
- 123.7
- 167.5
- 173.0
- l9(mm)
- 38
- 59.0
- l10(mm)
- 8
- 10.0
- 12.0
- 17.0
- 22.0
- F1(kN)
- 2.1
- 3.9
- 6.2
- 8.4
- 16.6
- 18.0
- 18.5
- F2(kN)
- 0.9
- 1.5
- 2.5
- 4.5
- 7.7
- 11.1
- F3(kN)
- 0.8
- 1.5
- 2.3
- 4.2
- 5.0
- 8.6
- Tightening torque max.(Nm)
- 2
- 3.0
- Preferential Origin
- CAD
- 3D
- Est. shipping days
- All
- Within 3 working days
- Within 4 working days

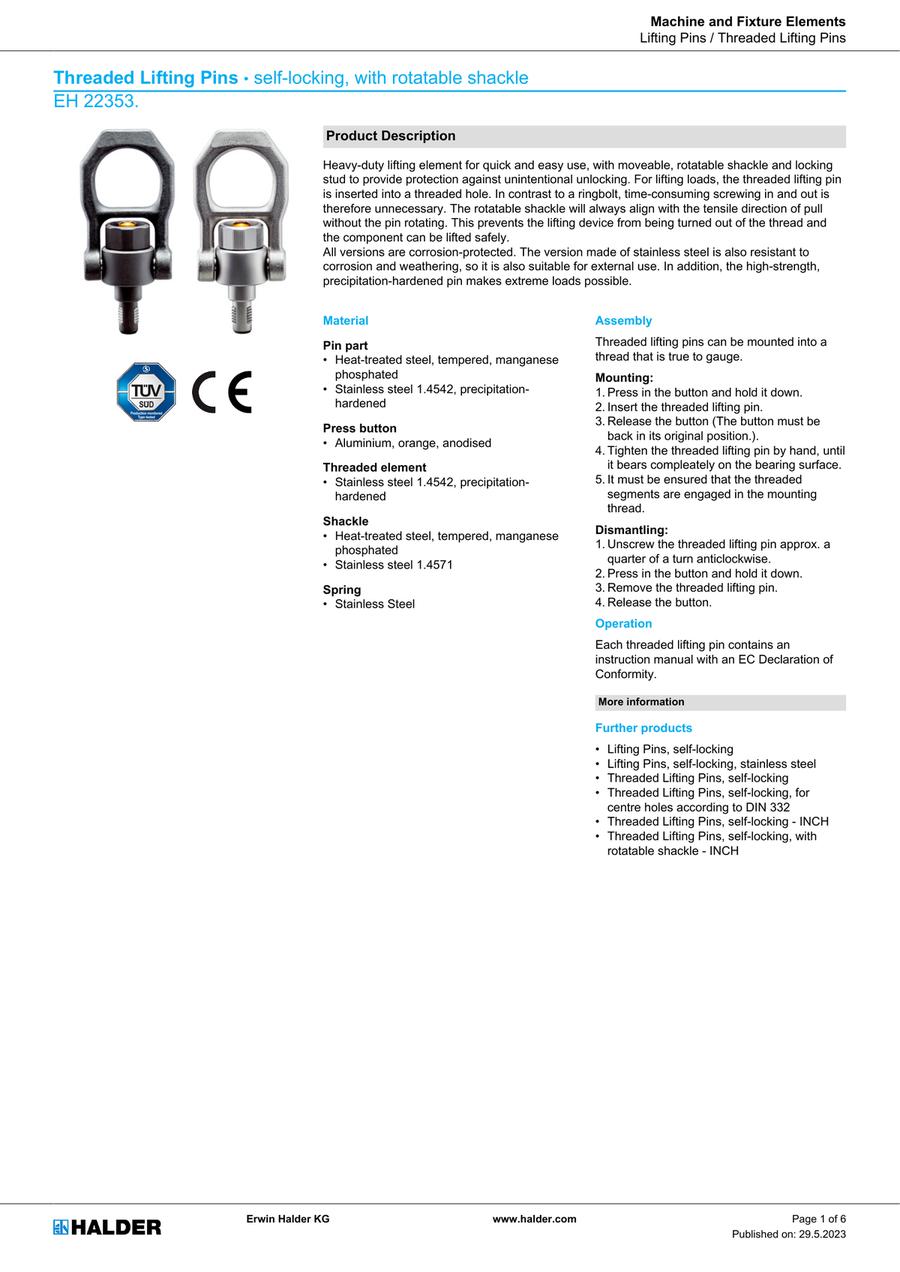

Threaded Lifting Pins, self-locking, with rotatable shackle
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
300.46 € ( 357.55 € ) | 4 working days |
303.93 € ( 361.68 € ) | 3 working days |
308.08 € ( 366.62 € ) | 3 working days |
315.71 € ( 375.69 € ) | 3 working days |
407.26 € ( 484.64 € ) | 4 working days |
459.16 € ( 546.40 € ) | 4 working days |
352.24 € ( 419.17 € ) | 4 working days |
362.20 € ( 431.02 € ) | 4 working days |
365.79 € ( 435.29 € ) | 3 working days |
406.49 € ( 483.72 € ) | 4 working days |
529.53 € ( 630.14 € ) | 4 working days |
599.79 € ( 713.75 € ) | 4 working days |
More Information
Basic information
Material
Pin part
- • Heat-treated steel, tempered, manganese phosphated
• Stainless steel 1.4542, precipitation-hardened
Press button
- • Aluminium, orange, anodised
Threaded element
- • Stainless steel 1.4542, precipitation-hardened
Shackle
- • Heat-treated steel, tempered, manganese phosphated
• Stainless steel 1.4571
Spring
- • Stainless Steel
Assembly
Threaded lifting pins can be mounted into a thread that is true to gauge.
Mounting:
- • Press in the button and hold it down.
• Insert the threaded lifting pin.
• Release the button (The button must be back in its original position.).
• Tighten the threaded lifting pin by hand, until it bears compleately on the bearing surface.
• It must be ensured that the threaded segments are engaged in the mounting thread.
Dismantling:
- • Unscrew the threaded lifting pin approx. a quarter of a turn anticlockwise.
• Press in the button and hold it down.
• Remove the threaded lifting pin.
• Release the button.
Operation
Each threaded lifting pin contains an instruction manual with an EC Declaration of Conformity.
