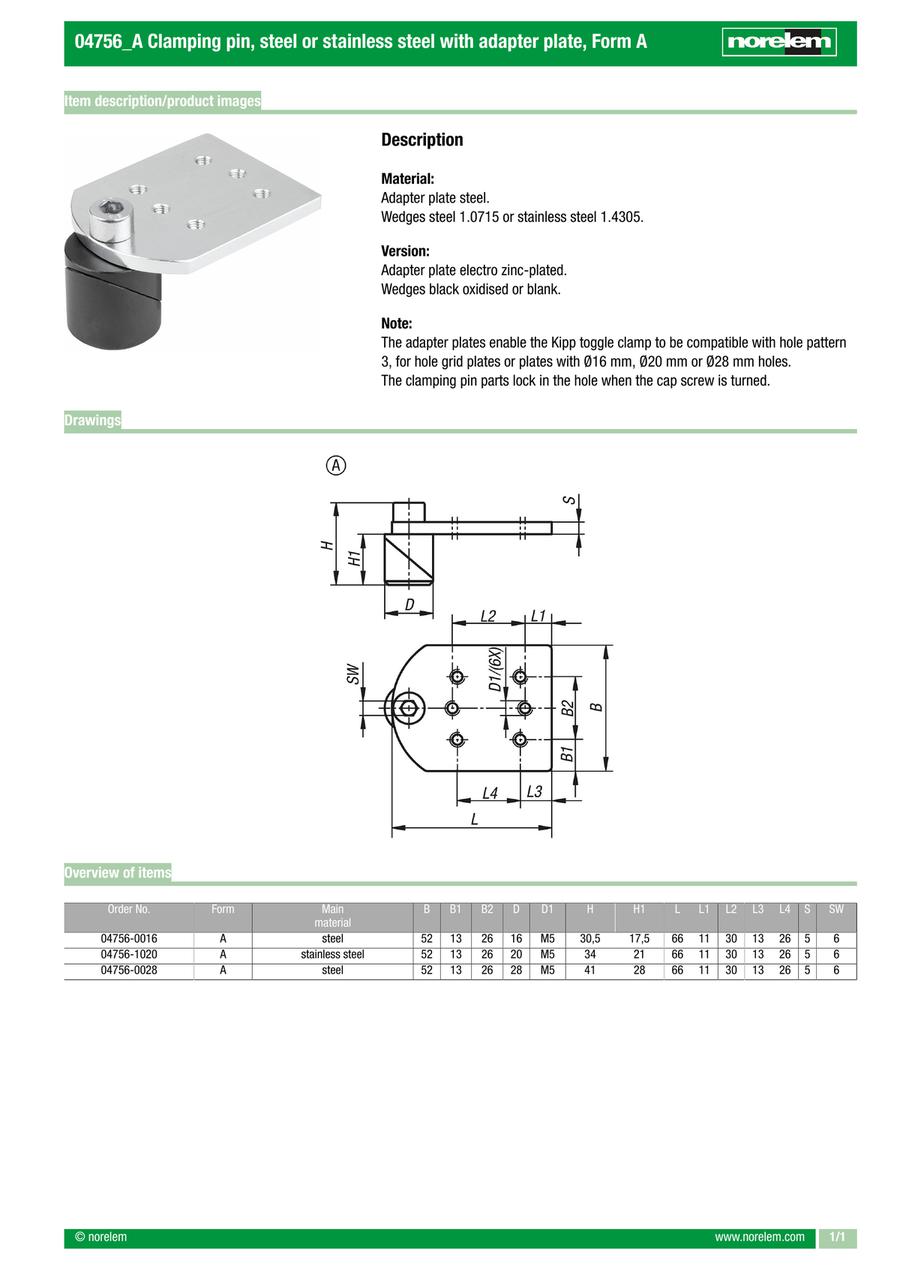

Clamping pin, steel or stainless steel with adapter plate, Form A (04756)
· Compatible with KIPP toggle clamps
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 04756-0016 |
| 04756-0028 |
| 04756-1020 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Material | Surface finish body | D=diameter (mm) | H=Height (mm) | H1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|
38.99 € | 1 | 4 Days | Steel | Black oxidised | 16 | 30.5 | 17.5 | ||
50.54 € | 1 | 4 Days | Steel | Black oxidised | 28 | 41 | 28 | ||
42.84 € | 1 | 4 Days | Stainless Steel | Bright | 20 | 34 | 21 |
Loading...
Basic information
| Type (Basic Shape) | Flanged | Component material | Steel | Surface finish component | Galvanised |
|---|---|---|---|---|---|
| Form | A | B=Width(mm) | 52 | B1(mm) | 13 |
| B2(mm) | 26 | D1(mm) | M5 | L=Length(mm) | 66 |
| L1(mm) | 11 | L2(mm) | 30 | L3(mm) | 13 |
| L4(mm) | 26 | S=Thickness(mm) | 5 | SW(mm) | 6 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
