Configure

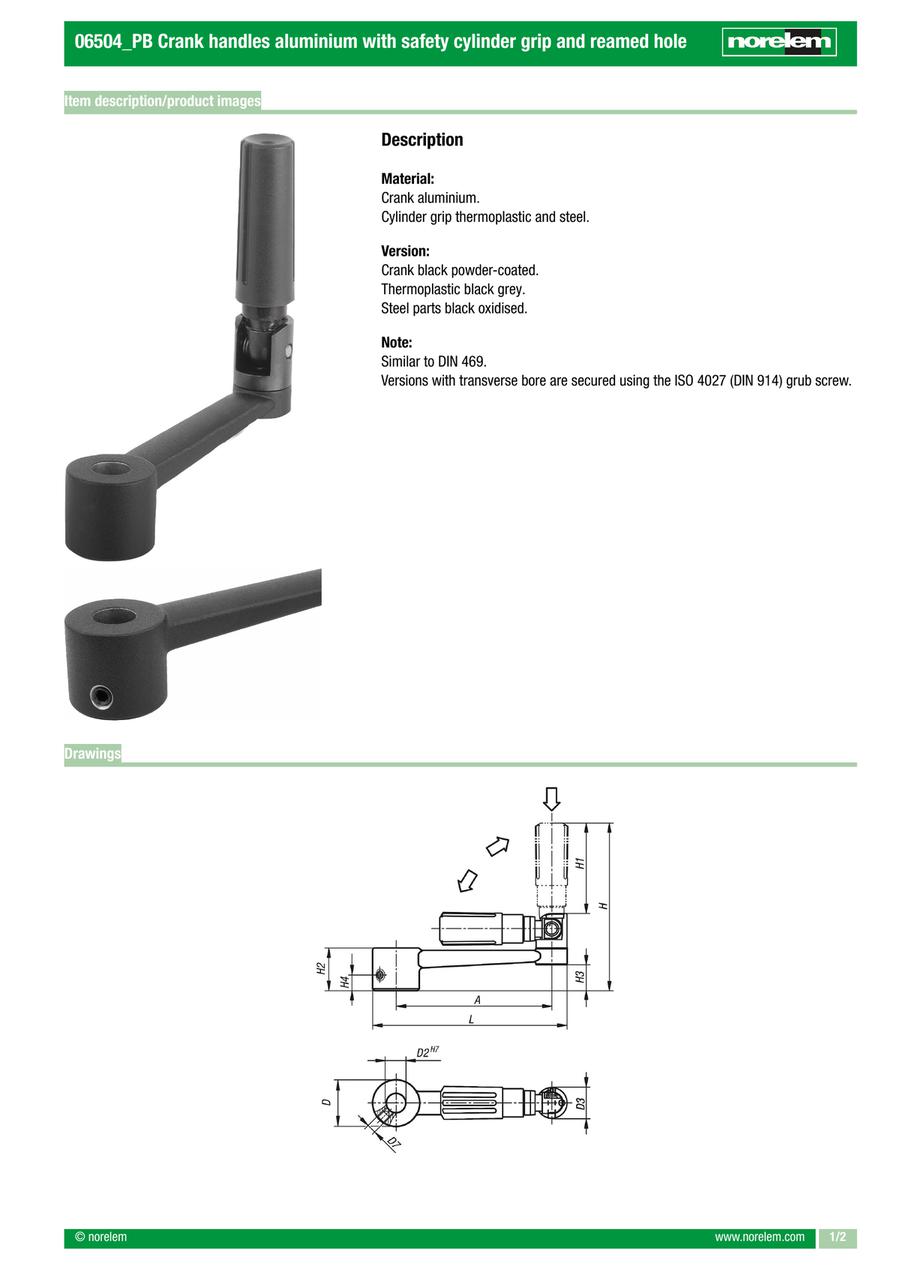

Crank handles aluminium with safety cylinder grip and reamed hole (06504)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items

Component colour

Size

Version 2

Grip

L=Length

(mm)

D

(mm)

D2=Fastening hole

(mm)

D3

(mm)

D7

(mm)

A=Centre distance

(mm)

H=Height

(mm)

H1=Handle height

(mm)

H2

(mm)

H3

(mm)

H4

(mm)

PL Edelstahl

Weight (ERP)

(kg)

Minimum order quantity
Black
1
Without transverse hole
-
100
24
10
16
-
80
87.5
47.5
22
13.4
-
-
0.0846
1 pieces
Black grey RAL 7021
1
With transverse bore
Cylindrical grip
100
24
10
16
M6
80
87.5
47.5
22
13.4
7.5
No
0.0850
1 pieces
Black
2
Without transverse hole
-
124
28
12
20
-
100
106.9
58.4
26
16
-
-
0.1525
1 pieces
Black grey RAL 7021
2
With transverse bore
Cylindrical grip
124
28
12
20
M6
100
106.9
58.4
26
16
7.5
No
0.1530
1 pieces
Black
3
Without transverse hole
-
153
30
14
26
-
125
139.1
82.1
28
15.8
-
-
0.2562
1 pieces
Black grey RAL 7021
3
With transverse bore
Cylindrical grip
153
30
14
26
M6
125
139.1
82.1
28
15.8
7.5
No
0.2560
1 pieces
Black
4
Without transverse hole
-
190
34
17
26
-
160
143.1
82.1
32
19.6
-
-
0.2965
1 pieces
Black grey RAL 7021
4
With transverse bore
Cylindrical grip
190
34
17
26
M6
160
143.1
82.1
32
19.6
7.5
No
0.2970
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
67.91 €
( 80.81 € )
4 working days
72.13 €
( 85.83 € )
4 working days
79.28 €
( 94.34 € )
4 working days
83.43 €
( 99.28 € )
4 working days
105.23 €
( 125.22 € )
4 working days
109.20 €
( 129.95 € )
4 working days
109.50 €
( 130.31 € )
4 working days
113.42 €
( 134.97 € )
4 working days

More Information

Basic information

· For long adjustment travel

· Application sectors: machine, plant, equipment construction and measuring devices

· Version: reamed hole

· Swivels back automatically after releasing
