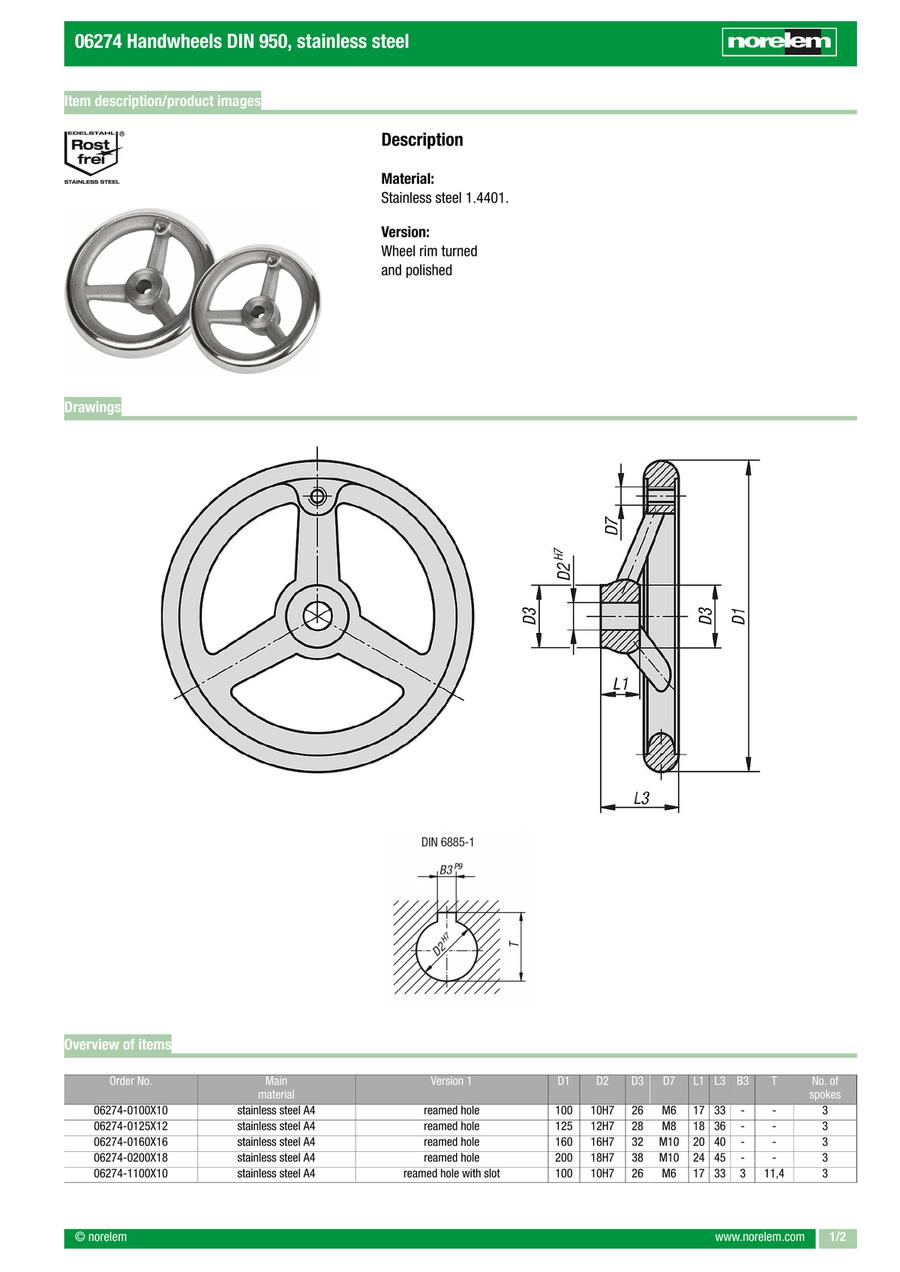

Handwheels DIN 950, stainless steel (06274)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Material: stainless steel 1.4401
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06274-0100X10 |
| 06274-0125X12 |
| 06274-0160X16 |
| 06274-0200X18 |
| 06274-1100X10 |
| 06274-1125X12 |
| 06274-1160X16 |
| 06274-1200X18 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Version 1 | B3 (mm) | D2=Fastening hole (mm) | D3 (mm) | D7=Thread | L1 (mm) | L3=height (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
54.50 € | 1 | 4 Days | 100 | reamed hole | - | 10H7 | 26 | M6 | 17 | 33 | - | ||
78.18 € | 1 | 4 Days | 125 | reamed hole | - | 12H7 | 28 | M8 | 18 | 36 | - | ||
115.23 € | 1 | 4 Days | 160 | reamed hole | - | 16H7 | 32 | M10 | 20 | 40 | - | ||
199.58 € | 1 | 4 Days | 200 | reamed hole | - | 18H7 | 38 | M10 | 24 | 45 | - | ||
57.27 € | 1 | 4 Days | 100 | reamed hole with slot | 3 | 10H7 | 26 | M6 | 17 | 33 | 11.4 | ||
80.94 € | 1 | 4 Days | 125 | reamed hole with slot | 4 | 12H7 | 28 | M8 | 18 | 36 | 13.8 | ||
118.02 € | 1 | 4 Days | 160 | reamed hole with slot | 5 | 16H7 | 32 | M10 | 20 | 40 | 18.3 | ||
202.32 € | 1 | 4 Days | 200 | reamed hole with slot | 6 | 18H7 | 38 | M10 | 24 | 45 | 20.8 |
Loading...
Basic information
| Handle, Material | Stainless Steel | Steel code | 1.4401 | Main colour | polished |
|---|---|---|---|---|---|
| Number of spokes | 3 | DIN | DIN 950 |
Configure
Basic Attributes
-
Outside diameter(Ø)
-
Version 1
- reamed hole
- reamed hole with slot
-
B3(mm)
- 3
- 4
- 5
- 6
-
D2=Fastening hole(mm)
-
D3(mm)
-
D7=Thread
- M6
- M8
- M10
-
L1(mm)
-
L3=height(mm)
-
T(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
