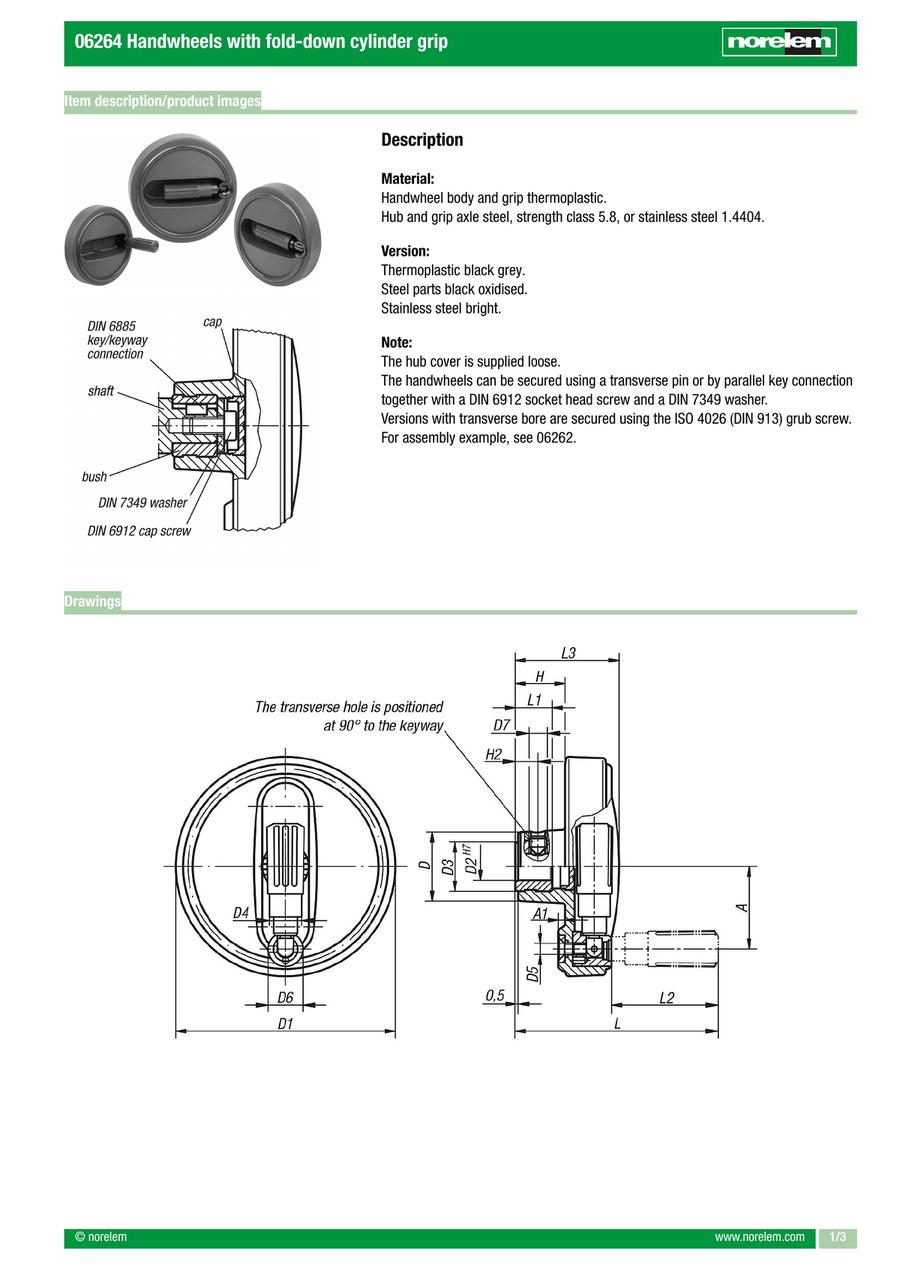

Handwheels with fold-away grip (06264)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Size | Version 1 | Version 2 | L (mm) | L1 (mm) | L2 (mm) | L3=height (mm) | D (mm) | D2=Fastening hole (mm) | D3 (mm) | D4 (mm) | D5 (mm) | D6 (mm) | D7 (mm) | A (mm) | A1 (mm) | B3 (mm) | H (mm) | H2 (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
43.35 € | 1 | 4 Days | 80 | 1 | Reamed hole | - | 74.6 | 13 | 40 | 36.7 | 25 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2.5 | - | 17.6 | - | - | ||
45.55 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | - | 74.6 | 13 | 40 | 36.7 | 25 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2.5 | 2 | 17.6 | - | 9 | ||
47.83 € | 1 | 4 Days | 80 | 1 | Reamed hole | With transverse bore | 74.6 | 13 | 40 | 36.7 | 25 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2.5 | - | 17.6 | 7.5 | - | ||
50.03 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | With transverse bore | 74.6 | 13 | 40 | 36.7 | 25 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2.5 | 2 | 17.6 | 7.5 | 9 | ||
43.35 € | 1 | 4 Days | 80 | 1 | Reamed hole | - | 74.6 | 13 | 40 | 36.7 | 25 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2.5 | - | 17.6 | - | - | ||
45.55 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | - | 74.6 | 13 | 40 | 36.7 | 25 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2.5 | 3 | 17.6 | - | 11.4 | ||
47.83 € | 1 | 4 Days | 80 | 1 | Reamed hole | With transverse bore | 74.6 | 13 | 40 | 36.7 | 25 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2.5 | - | 17.6 | 7.5 | - | ||
50.03 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | With transverse bore | 74.6 | 13 | 40 | 36.7 | 25 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2.5 | 3 | 17.6 | 7.5 | 11.4 | ||
43.35 € | 1 | 4 Days | 80 | 1 | Reamed hole | - | 74.6 | 13 | 40 | 36.7 | 25 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2.5 | - | 17.6 | - | - | ||
45.55 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | - | 74.6 | 13 | 40 | 36.7 | 25 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2.5 | 4 | 17.6 | - | 13.8 | ||
47.83 € | 1 | 4 Days | 80 | 1 | Reamed hole | With transverse bore | 74.6 | 13 | 40 | 36.7 | 25 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2.5 | - | 17.6 | 7.5 | - | ||
50.03 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | With transverse bore | 74.6 | 13 | 40 | 36.7 | 25 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2.5 | 4 | 17.6 | 7.5 | 13.8 | ||
51.02 € | 1 | 4 Days | 100 | 2 | Reamed hole | - | 90.1 | 13 | 49 | 43.5 | 28 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | - | 20.1 | - | - | ||
53.06 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | - | 90.1 | 13 | 49 | 43.5 | 28 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 3 | 20.1 | - | 11.4 | ||
55.49 € | 1 | 4 Days | 100 | 2 | Reamed hole | With transverse bore | 90.1 | 13 | 49 | 43.5 | 28 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | - | 20.1 | 7.5 | - | ||
57.56 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | With transverse bore | 90.1 | 13 | 49 | 43.5 | 28 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 3 | 20.1 | 7.5 | 11.4 | ||
51.02 € | 1 | 4 Days | 100 | 2 | Reamed hole | - | 90.1 | 13 | 49 | 43.5 | 28 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | - | 20.1 | - | - | ||
53.06 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | - | 90.1 | 13 | 49 | 43.5 | 28 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 4 | 20.1 | - | 13.8 | ||
55.49 € | 1 | 4 Days | 100 | 2 | Reamed hole | With transverse bore | 90.1 | 13 | 49 | 43.5 | 28 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | - | 20.1 | 7.5 | - | ||
57.56 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | With transverse bore | 90.1 | 13 | 49 | 43.5 | 28 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 4 | 20.1 | 7.5 | 13.8 | ||
54.43 € | 1 | 4 Days | 125 | 3 | Reamed hole | - | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 12H7 | 25 | 20 | M6 | 20 | - | 47.5 | 4 | - | 23.3 | - | - | ||
56.46 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | - | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 12H7 | 25 | 20 | M6 | 20 | - | 47.5 | 4 | 4 | 23.3 | - | 13.8 | ||
58.91 € | 1 | 4 Days | 125 | 3 | Reamed hole | With transverse bore | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47.5 | 4 | - | 23.3 | 7.5 | - | ||
60.94 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | With transverse bore | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47.5 | 4 | 4 | 23.3 | 7.5 | 13.8 | ||
54.43 € | 1 | 4 Days | 125 | 3 | Reamed hole | - | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 14H7 | 25 | 20 | M6 | 20 | - | 47.5 | 4 | - | 23.3 | - | - | ||
56.46 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | - | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 14H7 | 25 | 20 | M6 | 20 | - | 47.5 | 4 | 5 | 23.3 | - | 16.3 | ||
58.91 € | 1 | 4 Days | 125 | 3 | Reamed hole | With transverse bore | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47.5 | 4 | - | 23.3 | 7.5 | - | ||
60.94 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | With transverse bore | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47.5 | 4 | 5 | 23.3 | 7.5 | 16.3 | ||
54.43 € | 1 | 4 Days | 125 | 3 | Reamed hole | - | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 16H7 | 25 | 20 | M6 | 20 | - | 47.5 | 4 | - | 23.3 | - | - | ||
56.46 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | - | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 16H7 | 25 | 20 | M6 | 20 | - | 47.5 | 4 | 5 | 23.3 | - | 18.3 | ||
58.91 € | 1 | 4 Days | 125 | 3 | Reamed hole | With transverse bore | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47.5 | 4 | - | 23.3 | 7.5 | - | ||
60.94 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | With transverse bore | 108.8 | 18.5 | 59.5 | 52.1 | 35 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47.5 | 4 | 5 | 23.3 | 7.5 | 18.3 | ||
58.03 € | 1 | 4 Days | 160 | 4 | Reamed hole | - | 143.5 | 18.5 | 83 | 63.8 | 45 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5.6 | - | 28 | - | - | ||
59.93 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | - | 143.5 | 18.5 | 83 | 63.8 | 45 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5.6 | 5 | 28 | - | 16.3 | ||
62.54 € | 1 | 4 Days | 160 | 4 | Reamed hole | With transverse bore | 143.5 | 18.5 | 83 | 63.8 | 45 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5.6 | - | 28 | 7.5 | - | ||
64.40 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | With transverse bore | 143.5 | 18.5 | 83 | 63.8 | 45 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5.6 | 5 | 28 | 7.5 | 16.3 | ||
58.03 € | 1 | 4 Days | 160 | 4 | Reamed hole | - | 143.5 | 18.5 | 83 | 63.8 | 45 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5.6 | - | 28 | - | - | ||
59.93 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | - | 143.5 | 18.5 | 83 | 63.8 | 45 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5.6 | 5 | 28 | - | 18.3 | ||
62.54 € | 1 | 4 Days | 160 | 4 | Reamed hole | With transverse bore | 143.5 | 18.5 | 83 | 63.8 | 45 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5.6 | - | 28 | 7.5 | - | ||
64.40 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | With transverse bore | 143.5 | 18.5 | 83 | 63.8 | 45 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5.6 | 5 | 28 | 7.5 | 18.3 |
Loading...
Basic information
| Handwheel Type | Disk | Main material | Thermoplastic | Component material | Steel |
|---|---|---|---|---|---|
| Component colour | Black oxidised |
Configure
Basic Attributes
-
Outside diameter(Ø)
-
Size
- 1
- 2
- 3
- 4
-
Version 1
- Reamed hole
- Reamed hole with slot
-
Version 2
- With transverse bore
-
L(mm)
-
L1(mm)
-
L2(mm)
-
L3=height(mm)
-
D(mm)
- 25
- 28
- 35
- 45
-
D2=Fastening hole(mm)
-
D3(mm)
-
D4(mm)
-
D5(mm)
- M4
- M5
- M6
- M8
-
D6(mm)
- 13
- 16
- 20
- 26
-
D7(mm)
- M6
-
A(mm)
-
A1(mm)
- 2.5
- 3
- 4
- 5.6
-
B3(mm)
- 2
- 3
- 4
- 5
-
H(mm)
-
H2(mm)
-
T(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
