Configure

Outside diameter(Ø)
- 80
- 100
- 125
- 160
Size
- 1
- 2
- 3
- 4
Version 1
- Reamed hole
- Reamed hole with slot
Version 2
- With transverse bore
- Without transverse hole
Form
- A
- B
- C
- E
Form definition
Form-Type
L(mm)
- 74.6
- 90.2
- 110.7
- 143
L1(mm)
- 13
- 18.5
L2(mm)
- 40
- 49.1
- 61.4
- 82.5
L3=height(mm)
- 36.7
- 43.5
- 52.1
- 63.8
D(mm)
- 25
- 28
- 35
- 45
D2=Fastening hole(mm)
- 8H7
- 10H7
- 12H7
- 14H7
- 16H7
D3(mm)
- 19
- 25
D4(mm)
- 14
- 16
- 20
- 25
D5(mm)
- M4
- M5
- M6
- M8
D7(mm)
- M6
A(mm)
- 30
- 38
- 47.5
- 62
A1(mm)
- 2.5
- 3
- 4
- 5.6
B3(mm)
- 2
- 3
- 4
- 5
H(mm)
- 17.6
- 20.1
- 23.3
- 28
H2(mm)
- 7.5
T(mm)
- 9
- 11.4
- 13.8
- 16.3
- 18.3
Est. shipping days
- All
- Within 4 working days

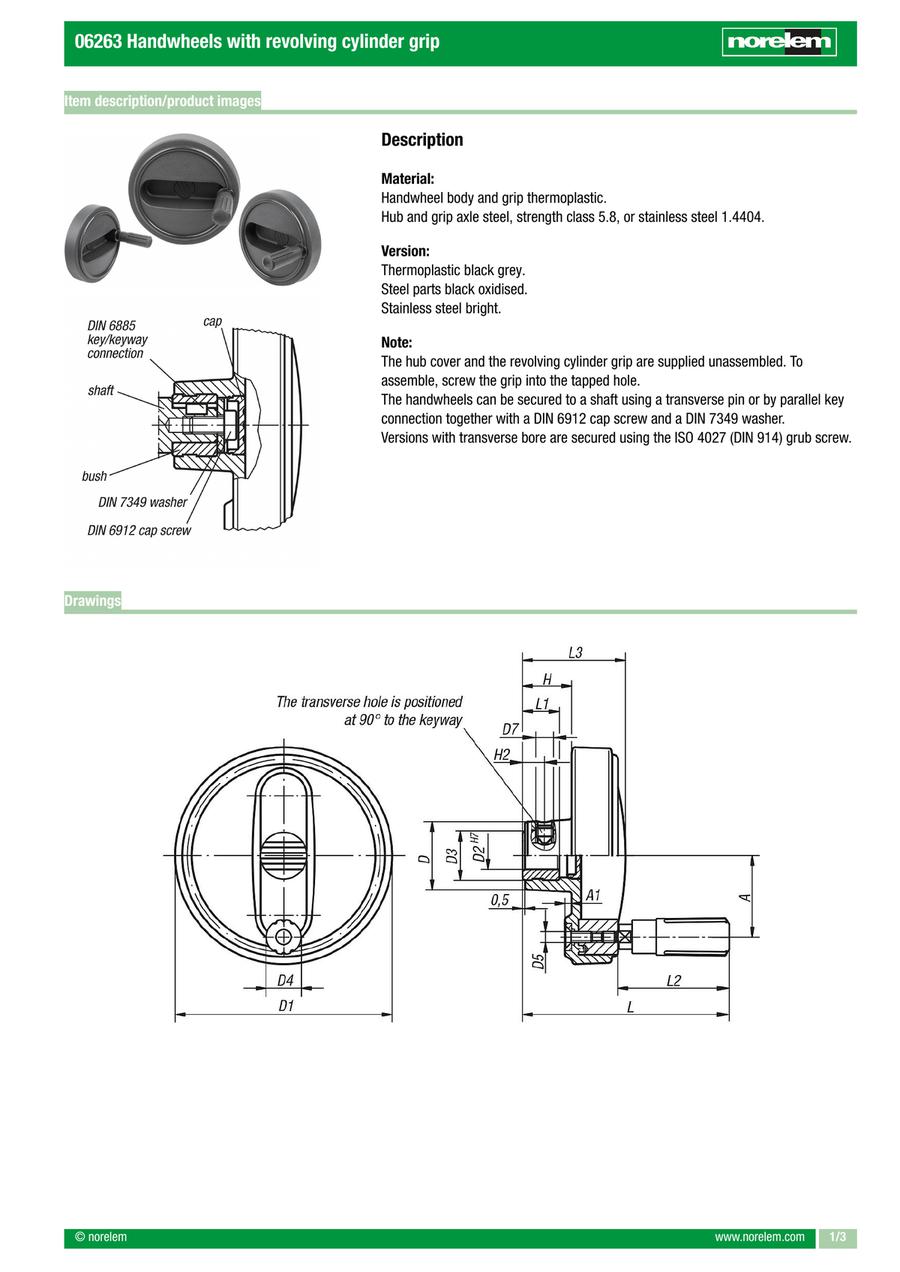

Handwheels with revolving grip (06263)

Catalog

Part number:

Still undefined. 40 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(Ø)

Size

Version 1

Version 2

Form

Form definition

Form-Type

(mm)

L3=height

(mm)

D2=Fastening hole

(mm)

Minimum order quantity

80	1	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	74.6	13	40	36.7	25	8H7	19	14	M4	-	30	2.5	-	17.6	-	-	1 pieces
80	1	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	74.6	13	40	36.7	25	8H7	19	14	M4	-	30	2.5	2	17.6	-	9	1 pieces
80	1	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	74.6	13	40	36.7	25	8H7	19	14	M4	M6	30	2.5	-	17.6	7.5	-	1 pieces
80	1	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	74.6	13	40	36.7	25	8H7	19	14	M4	M6	30	2.5	2	17.6	7.5	9	1 pieces
80	1	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	74.6	13	40	36.7	25	10H7	19	14	M4	-	30	2.5	-	17.6	-	-	1 pieces
80	1	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	74.6	13	40	36.7	25	10H7	19	14	M4	-	30	2.5	3	17.6	-	11.4	1 pieces
80	1	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	74.6	13	40	36.7	25	10H7	19	14	M4	M6	30	2.5	-	17.6	7.5	-	1 pieces
80	1	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	74.6	13	40	36.7	25	10H7	19	14	M4	M6	30	2.5	3	17.6	7.5	11.4	1 pieces
80	1	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	74.6	13	40	36.7	25	12H7	19	14	M4	-	30	2.5	-	17.6	-	-	1 pieces
80	1	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	74.6	13	40	36.7	25	12H7	19	14	M4	-	30	2.5	4	17.6	-	13.8	1 pieces
80	1	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	74.6	13	40	36.7	25	12H7	19	14	M4	M6	30	2.5	-	17.6	7.5	-	1 pieces
80	1	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	74.6	13	40	36.7	25	12H7	19	14	M4	M6	30	2.5	4	17.6	7.5	13.8	1 pieces
100	2	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	90.2	13	49.1	43.5	28	10H7	19	16	M5	-	38	3	-	20.1	-	-	1 pieces
100	2	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	90.2	13	49.1	43.5	28	10H7	19	16	M5	-	38	3	3	20.1	-	11.4	1 pieces
100	2	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	90.2	13	49.1	43.5	28	10H7	19	16	M5	M6	38	3	-	20.1	7.5	-	1 pieces
100	2	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	90.2	13	49.1	43.5	28	10H7	19	16	M5	M6	38	3	3	20.1	7.5	11.4	1 pieces
100	2	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	90.2	13	49.1	43.5	28	12H7	19	16	M5	-	38	3	-	20.1	-	-	1 pieces
100	2	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	90.2	13	49.1	43.5	28	12H7	19	16	M5	-	38	3	4	20.1	-	13.8	1 pieces
100	2	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	90.2	13	49.1	43.5	28	12H7	19	16	M5	M6	38	3	-	20.1	7.5	-	1 pieces
100	2	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	90.2	13	49.1	43.5	28	12H7	19	16	M5	M6	38	3	4	20.1	7.5	13.8	1 pieces
125	3	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	110.7	18.5	61.4	52.1	35	12H7	25	20	M6	-	47.5	4	-	23.3	-	-	1 pieces
125	3	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	110.7	18.5	61.4	52.1	35	12H7	25	20	M6	-	47.5	4	4	23.3	-	13.8	1 pieces
125	3	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	110.7	18.5	61.4	52.1	35	12H7	25	20	M6	M6	47.5	4	-	23.3	7.5	-	1 pieces
125	3	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	110.7	18.5	61.4	52.1	35	12H7	25	20	M6	M6	47.5	4	4	23.3	7.5	13.8	1 pieces
125	3	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	110.7	18.5	61.4	52.1	35	14H7	25	20	M6	-	47.5	4	-	23.3	-	-	1 pieces
125	3	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	110.7	18.5	61.4	52.1	35	14H7	25	20	M6	-	47.5	4	5	23.3	-	16.3	1 pieces
125	3	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	110.7	18.5	61.4	52.1	35	14H7	25	20	M6	M6	47.5	4	-	23.3	7.5	-	1 pieces
125	3	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	110.7	18.5	61.4	52.1	35	14H7	25	20	M6	M6	47.5	4	5	23.3	7.5	16.3	1 pieces
125	3	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	110.7	18.5	61.4	52.1	35	16H7	25	20	M6	-	47.5	4	-	23.3	-	-	1 pieces
125	3	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	110.7	18.5	61.4	52.1	35	16H7	25	20	M6	-	47.5	4	5	23.3	-	18.3	1 pieces
125	3	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	110.7	18.5	61.4	52.1	35	16H7	25	20	M6	M6	47.5	4	-	23.3	7.5	-	1 pieces
125	3	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	110.7	18.5	61.4	52.1	35	16H7	25	20	M6	M6	47.5	4	5	23.3	7.5	18.3	1 pieces
160	4	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	143	18.5	82.5	63.8	45	14H7	25	25	M8	-	62	5.6	-	28	-	-	1 pieces
160	4	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	143	18.5	82.5	63.8	45	14H7	25	25	M8	-	62	5.6	5	28	-	16.3	1 pieces
160	4	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	143	18.5	82.5	63.8	45	14H7	25	25	M8	M6	62	5.6	-	28	7.5	-	1 pieces
160	4	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	143	18.5	82.5	63.8	45	14H7	25	25	M8	M6	62	5.6	5	28	7.5	16.3	1 pieces
160	4	Reamed hole	Without transverse hole	E	With reamed hole	With reamed hole	143	18.5	82.5	63.8	45	16H7	25	25	M8	-	62	5.6	-	28	-	-	1 pieces
160	4	Reamed hole with slot	Without transverse hole	C	Reamed hole with slot	Reamed hole with slot	143	18.5	82.5	63.8	45	16H7	25	25	M8	-	62	5.6	5	28	-	18.3	1 pieces
160	4	Reamed hole	With transverse bore	A	Reamed hole with tranverse bore	Reamed hole with tranverse bore	143	18.5	82.5	63.8	45	16H7	25	25	M8	M6	62	5.6	-	28	7.5	-	1 pieces
160	4	Reamed hole with slot	With transverse bore	B	Reamed hole with slot, with transverse bore	Reamed hole with slot, with transverse bore	143	18.5	82.5	63.8	45	16H7	25	25	M8	M6	62	5.6	5	28	7.5	18.3	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

15.14 € ( 18.02 € )	4 working days
18.24 € ( 21.71 € )	4 working days
19.65 € ( 23.38 € )	4 working days
22.73 € ( 27.05 € )	4 working days
15.14 € ( 18.02 € )	4 working days
18.24 € ( 21.71 € )	4 working days
19.65 € ( 23.38 € )	4 working days
22.73 € ( 27.05 € )	4 working days
15.14 € ( 18.02 € )	4 working days
18.24 € ( 21.71 € )	4 working days
19.65 € ( 23.38 € )	4 working days
22.73 € ( 27.05 € )	4 working days
18.19 € ( 21.65 € )	4 working days
21.28 € ( 25.32 € )	4 working days
22.70 € ( 27.01 € )	4 working days
25.75 € ( 30.64 € )	4 working days
18.19 € ( 21.65 € )	4 working days
21.28 € ( 25.32 € )	4 working days
22.70 € ( 27.01 € )	4 working days
25.75 € ( 30.64 € )	4 working days
24.77 € ( 29.48 € )	4 working days
27.60 € ( 32.84 € )	4 working days
29.26 € ( 34.82 € )	4 working days
32.06 € ( 38.15 € )	4 working days
24.77 € ( 29.48 € )	4 working days
27.60 € ( 32.84 € )	4 working days
29.26 € ( 34.82 € )	4 working days
32.06 € ( 38.15 € )	4 working days
24.77 € ( 29.48 € )	4 working days
27.60 € ( 32.84 € )	4 working days
29.26 € ( 34.82 € )	4 working days
32.06 € ( 38.15 € )	4 working days
28.18 € ( 33.53 € )	4 working days
31.99 € ( 38.07 € )	4 working days
32.68 € ( 38.89 € )	4 working days
36.50 € ( 43.44 € )	4 working days
28.18 € ( 33.53 € )	4 working days
31.99 € ( 38.07 € )	4 working days
32.68 € ( 38.89 € )	4 working days
36.50 € ( 43.44 € )	4 working days

More Information

Basic information

Basic information

· Control element for positioning and adjusting shafts and spindles

· Application sectors: machine, plant, equipment construction and measuring devices

· For opening, closing and operating valves in fittings, machine tools

Catalog

Products homepage

Catalog (2-page spread)
