NORELEM

Indexing plungers, steel or stainless steel with plastic T-grip and locknut (03090)

Indexing plungers, steel or stainless steel with plastic T-grip and locknut (03090)

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03090-06206
    03090-0620684
    03090-06308
    03090-0630884
    03090-06410
    03090-0641084
    03090-6206
    03090-620684
    03090-6308
    03090-630884
    03090-6410
    03090-641084

    Body Material

    Thread

    (mm)

    Travel S

    (mm)

    Length L

    (mm)

    Steel code

    Component colour

    Size

    A

    (mm)

    B

    (mm)

    D=pin diameter

    (mm)

    Fx30°

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    SW1

    (mm)

    SW2

    (mm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    Stainless Steel
    12x1.5
    6
    58
    1.4034
    Black grey RAL 7021
    2
    50
    15.5
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    0.0055
    1 pieces
    Stainless Steel
    12x1.5
    6
    58
    1.4034
    Red
    2
    50
    15.5
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    0.0059
    1 pieces
    Stainless Steel
    16x1.5
    8
    77
    1.4034
    Black grey RAL 7021
    3
    60
    18
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    0.0112
    1 pieces
    Stainless Steel
    16x1.5
    8
    77
    1.4034
    Red
    3
    60
    18
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    0.0224
    1 pieces
    Stainless Steel
    20x1.5
    10
    84
    1.4034
    Black grey RAL 7021
    4
    72
    19
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    0.0411
    1 pieces
    Stainless Steel
    20x1.5
    10
    84
    1.4034
    Red
    4
    72
    19
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    0.0054
    1 pieces
    Steel
    12x1.5
    6
    58
    1.0718
    Black grey RAL 7021
    2
    50
    15.5
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    0.0050
    1 pieces
    Steel
    12x1.5
    6
    58
    1.0718
    Red
    2
    50
    15.5
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    0.0080
    1 pieces
    Steel
    16x1.5
    8
    77
    1.0718
    Black grey RAL 7021
    3
    60
    18
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    0.0080
    1 pieces
    Steel
    16x1.5
    8
    77
    1.0718
    Red
    3
    60
    18
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    0.0090
    1 pieces
    Steel
    20x1.5
    10
    84
    1.0718
    Black grey RAL 7021
    4
    72
    19
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    0.0150
    1 pieces
    Steel
    20x1.5
    10
    84
    1.0718
    Red
    4
    72
    19
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    0.0150
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    17.08 €
    ( 20.33 € )
    4 working days
    17.08 €
    ( 20.33 € )
    4 working days
    22.80 €
    ( 27.13 € )
    4 working days
    22.80 €
    ( 27.13 € )
    4 working days
    30.14 €
    ( 35.87 € )
    4 working days
    30.14 €
    ( 35.87 € )
    4 working days
    9.55 €
    ( 11.36 € )
    4 working days
    9.55 €
    ( 11.36 € )
    4 working days
    12.71 €
    ( 15.12 € )
    4 working days
    12.71 €
    ( 15.12 € )
    4 working days
    14.50 €
    ( 17.25 € )
    4 working days
    14.50 €
    ( 17.25 € )
    4 working days
  • 1

    • More Information

    Basic information

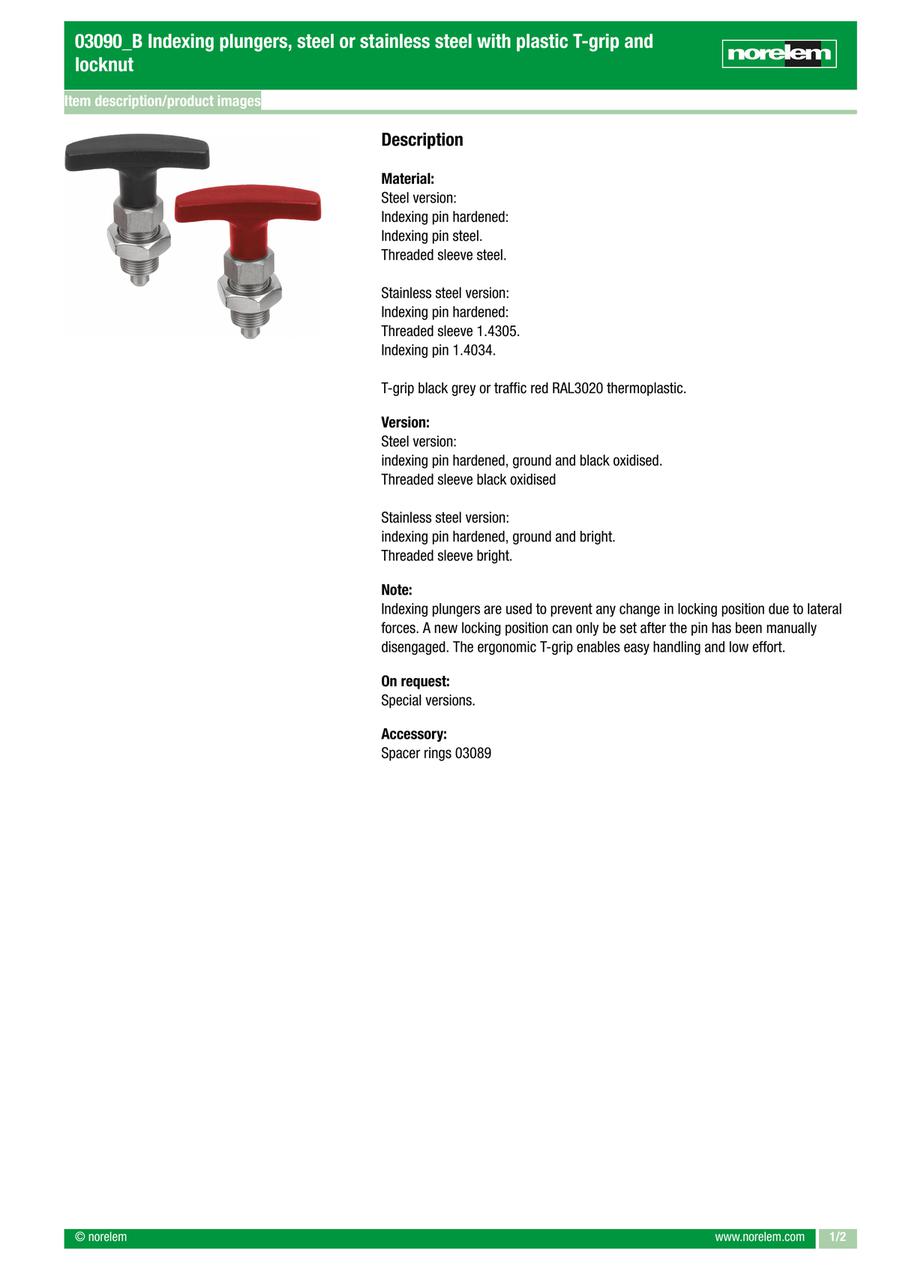

    · Indexing plungers facilitate indexing and locking

    · Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

    · High stability

    · Ergonomic grip

    · Material: steel or stainless steel
