NORELEM

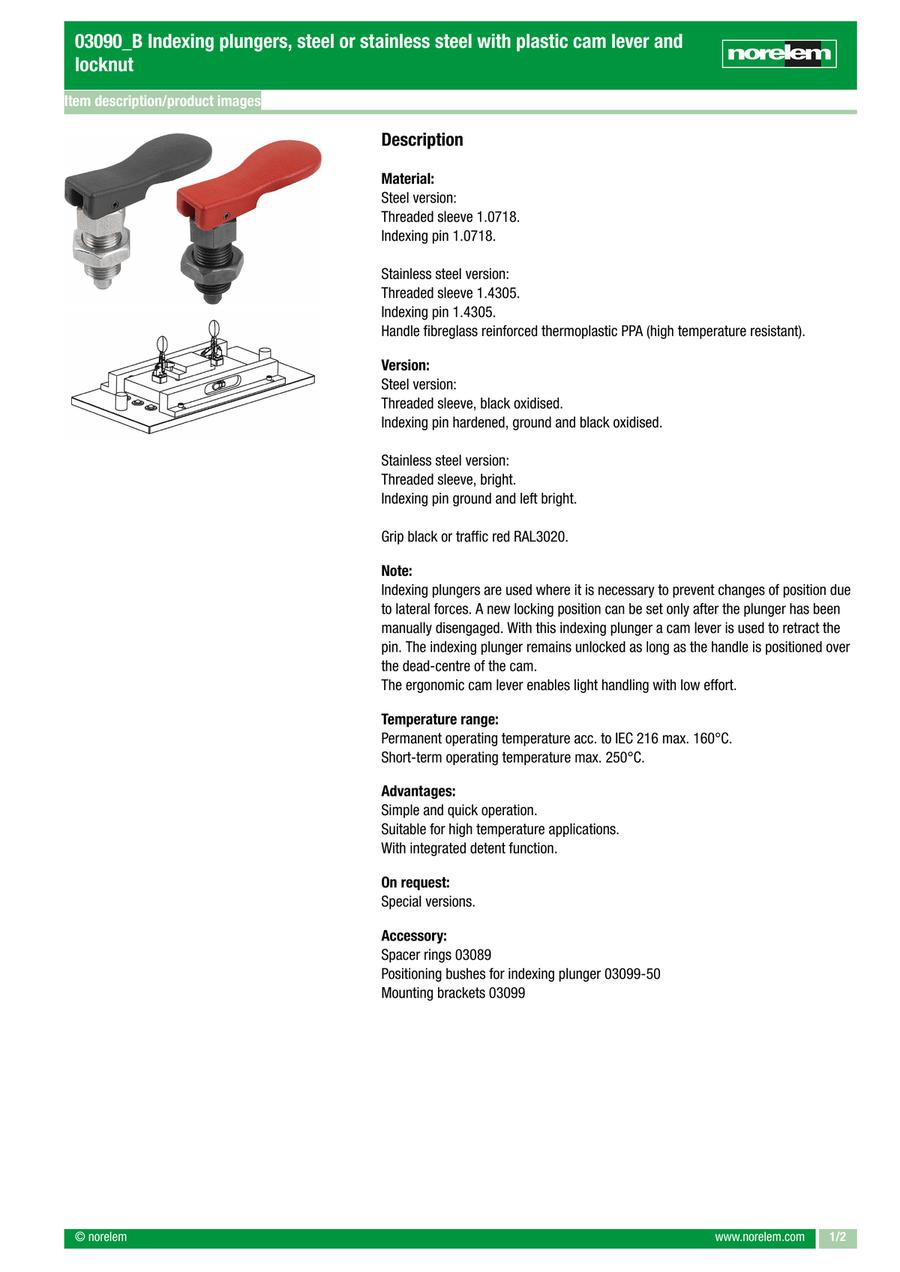

Indexing plungers, steel or stainless steel with plastic cam lever and locknut (03090)

Indexing plungers, steel or stainless steel with plastic cam lever and locknut (03090)

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03090-19105
    03090-19105154
    03090-19206
    03090-19206154
    03090-19308
    03090-19308154
    03090-19410
    03090-19410154
    03090-9105
    03090-9105154
    03090-9206
    03090-9206154
    03090-9308
    03090-9308154
    03090-9410
    03090-9410154

    Body Material

    Thread

    (mm)

    Travel S

    (mm)

    Length L

    (mm)

    Surface finish body

    Component colour

    Size

    A=Handle length

    (mm)

    A1=Handle length

    (mm)

    B=Width

    (mm)

    B1

    (mm)

    D=pin diameter

    (mm)

    Fx30°

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    SW1

    (mm)

    SW2

    (mm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    		Minimum order quantity
    Stainless Steel
    10x1
    5
    39
    Unhardened and bright
    Black
    1
    31.7
    41.7
    17.8
    12.9
    5
    1.3
    17
    7
    15
    13
    17
    12
    5
    1 pieces
    Stainless Steel
    10x1
    5
    39
    Unhardened and bright
    Red
    1
    31.7
    41.7
    17.8
    12.9
    5
    1.3
    17
    7
    15
    13
    17
    12
    5
    1 pieces
    Stainless Steel
    12x1.5
    6
    44
    Unhardened and bright
    Black
    2
    31.6
    41.7
    17.8
    12.9
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    1 pieces
    Stainless Steel
    12x1.5
    6
    44
    Unhardened and bright
    Red
    2
    31.6
    41.7
    17.8
    12.9
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    1 pieces
    Stainless Steel
    16x1.5
    8
    56.9
    Unhardened and bright
    Black
    3
    55.5
    67.8
    26.9
    19.4
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    1 pieces
    Stainless Steel
    16x1.5
    8
    56.9
    Unhardened and bright
    Red
    3
    55.5
    67.8
    26.9
    19.4
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    1 pieces
    Stainless Steel
    20x1.5
    10
    62.9
    Unhardened and bright
    Black
    4
    53.4
    67.8
    26.9
    19.4
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    1 pieces
    Stainless Steel
    20x1.5
    10
    62.9
    Unhardened and bright
    Red
    4
    53.4
    67.8
    26.9
    19.4
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    1 pieces
    Steel
    10x1
    5
    39
    Hardened and black oxid finish
    Black
    1
    31.7
    41.7
    17.8
    12.9
    5
    1.3
    17
    7
    15
    13
    17
    12
    5
    1 pieces
    Steel
    10x1
    5
    39
    Hardened and black oxid finish
    Red
    1
    31.7
    41.7
    17.8
    12.9
    5
    1.3
    17
    7
    15
    13
    17
    12
    5
    1 pieces
    Steel
    12x1.5
    6
    44
    Hardened and black oxid finish
    Black
    2
    31.6
    41.7
    17.8
    12.9
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    1 pieces
    Steel
    12x1.5
    6
    44
    Hardened and black oxid finish
    Red
    2
    31.6
    41.7
    17.8
    12.9
    6
    1.8
    20
    8
    17
    14
    19
    14
    6
    1 pieces
    Steel
    16x1.5
    8
    56.9
    Hardened and black oxid finish
    Black
    3
    55.5
    67.8
    26.9
    19.4
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    1 pieces
    Steel
    16x1.5
    8
    56.9
    Hardened and black oxid finish
    Red
    3
    55.5
    67.8
    26.9
    19.4
    8
    2.3
    26
    10
    23
    19
    24
    35
    15
    1 pieces
    Steel
    20x1.5
    10
    62.9
    Hardened and black oxid finish
    Black
    4
    53.4
    67.8
    26.9
    19.4
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    1 pieces
    Steel
    20x1.5
    10
    62.9
    Hardened and black oxid finish
    Red
    4
    53.4
    67.8
    26.9
    19.4
    10
    2.8
    28
    12
    25
    22
    30
    34
    15
    1 pieces
