Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and locknut (03093)

Configure

Body Material
- Steel
- Stainless Steel
Thread(mm)
Travel S(mm)
- 3.5
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Length L(mm)
- 31.5
- 38.5
- 43.5
- 51.7
- 68
- 74
- 78
- 96
Steel code
- 1.4034
- 1.4305
Grade
- 5.8
Surface finish body
- Hardened
- Not hardened
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
D2(mm)
- 14
- 18
- 21
- 25
- 33
- 40
Fx30°(mm)
- 0.8
- 1.3
- 1.8
- 2.3
- 2.8
- 3.2
L1(mm)
- 17
- 21
- 24
- 28
- 36
- 40
- 42
- 50
L2(mm)
- 11
- 13.5
- 14.5
- 17.7
- 24
- 30
SW(mm)
- 10
- 13
- 17
- 19
- 24
- 30
- 36
Order No. screw-in washer
Spring force final pressure F2 approx.(N)
- 10
- 12
- 14
- 34
- 35
- 39
- 46
Spring force initial pressure F1 approx.(N)
- 4.5
- 5
- 6
- 15
- 20
Est. shipping days
- All
- Within 4 working days

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and locknut (03093)

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Body Material

Thread

(mm)

Travel S

(mm)

Length L

(mm)

Steel code

Grade

Surface finish body

Size

D=pin diameter

(mm)

Fx30°

(mm)

Order No. screw-in washer

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

Minimum order quantity

Stainless Steel	8x1	4	38.5	1.4034	-	Hardened	0	4	18	1.3	21	13.5	13	03094-90	12	6	1 pieces
Stainless Steel	10x1	5	43.5	1.4034	-	Hardened	1	5	21	1.3	24	14.5	17	03094-91	12	5	1 pieces
Stainless Steel	12x1.5	6	51.7	1.4034	-	Hardened	2	6	25	1.8	28	17.7	19	03094-92	14	6	1 pieces
Stainless Steel	16x1.5	8	68	1.4034	-	Hardened	3	8	33	2.3	36	24	24	03094-93	35	15	1 pieces
Stainless Steel	20x1.5	10	74	1.4034	-	Hardened	4	10	33	2.8	40	24	30	03094-94	34	15	1 pieces
Stainless Steel	20x1.5	12	78	1.4034	-	Hardened	4	12	33	2.8	42	24	30	03094-94	39	15	1 pieces
Stainless Steel	24x2	16	96	1.4034	-	Hardened	5	16	40	3.2	50	30	36	03094-95	46	20	1 pieces
Stainless Steel	6x0.75	3.5	31.5	1.4034	-	Hardened	9	3	14	0.8	17	11	10	03094-99	10	4.5	1 pieces
Stainless Steel	8x1	4	38.5	1.4305	-	Not hardened	0	4	18	1.3	21	13.5	13	03094-90	12	6	1 pieces
Stainless Steel	10x1	5	43.5	1.4305	-	Not hardened	1	5	21	1.3	24	14.5	17	03094-91	12	5	1 pieces
Stainless Steel	12x1.5	6	51.7	1.4305	-	Not hardened	2	6	25	1.8	28	17.7	19	03094-92	14	6	1 pieces
Stainless Steel	16x1.5	8	68	1.4305	-	Not hardened	3	8	33	2.3	36	24	24	03094-93	35	15	1 pieces
Stainless Steel	20x1.5	10	74	1.4305	-	Not hardened	4	10	33	2.8	40	24	30	03094-94	34	15	1 pieces
Stainless Steel	20x1.5	12	78	1.4305	-	Not hardened	4	12	33	2.8	42	24	30	03094-94	39	15	1 pieces
Stainless Steel	24x2	16	96	1.4305	-	Not hardened	5	16	40	3.2	50	30	36	03094-95	46	20	1 pieces
Stainless Steel	6x0.75	3.5	31.5	1.4305	-	Not hardened	9	3	14	0.8	17	11	10	03094-99	10	4.5	1 pieces
Steel	8x1	4	38.5	-	5.8	Hardened	0	4	18	1.3	21	13.5	13	03094-90	12	6	1 pieces
Steel	10x1	5	43.5	-	5.8	Hardened	1	5	21	1.3	24	14.5	17	03094-91	12	5	1 pieces
Steel	12x1.5	6	51.7	-	5.8	Hardened	2	6	25	1.8	28	17.7	19	03094-92	14	6	1 pieces
Steel	16x1.5	8	68	-	5.8	Hardened	3	8	33	2.3	36	24	24	03094-93	35	15	1 pieces
Steel	20x1.5	10	74	-	5.8	Hardened	4	10	33	2.8	40	24	30	03094-94	34	15	1 pieces
Steel	20x1.5	12	78	-	5.8	Hardened	4	12	33	2.8	42	24	30	03094-94	39	15	1 pieces
Steel	24x2	16	96	-	5.8	Hardened	5	16	40	3.2	50	30	36	03094-95	46	20	1 pieces
Steel	6x0.75	3.5	31.5	-	5.8	Hardened	9	3	14	0.8	17	11	10	03094-99	10	4.5	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

13.12 € ( 15.61 € )	4 working days
12.52 € ( 14.90 € )	4 working days
14.16 € ( 16.85 € )	4 working days
16.81 € ( 20.00 € )	4 working days
24.59 € ( 29.26 € )	4 working days
27.02 € ( 32.15 € )	4 working days
30.69 € ( 36.52 € )	4 working days
13.77 € ( 16.39 € )	4 working days
13.12 € ( 15.61 € )	4 working days
12.52 € ( 14.90 € )	4 working days
14.16 € ( 16.85 € )	4 working days
16.81 € ( 20.00 € )	4 working days
24.59 € ( 29.26 € )	4 working days
27.02 € ( 32.15 € )	4 working days
30.69 € ( 36.52 € )	4 working days
13.77 € ( 16.39 € )	4 working days
7.12 € ( 8.47 € )	4 working days
6.79 € ( 8.08 € )	4 working days
7.31 € ( 8.70 € )	4 working days
8.90 € ( 10.59 € )	4 working days
13.23 € ( 15.74 € )	4 working days
14.52 € ( 17.28 € )	4 working days
16.52 € ( 19.66 € )	4 working days
7.49 € ( 8.91 € )	4 working days

More Information

Basic information

Basic information

· Indexing plungers facilitate indexing and locking

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· High stability

· Material: steel or stainless steel

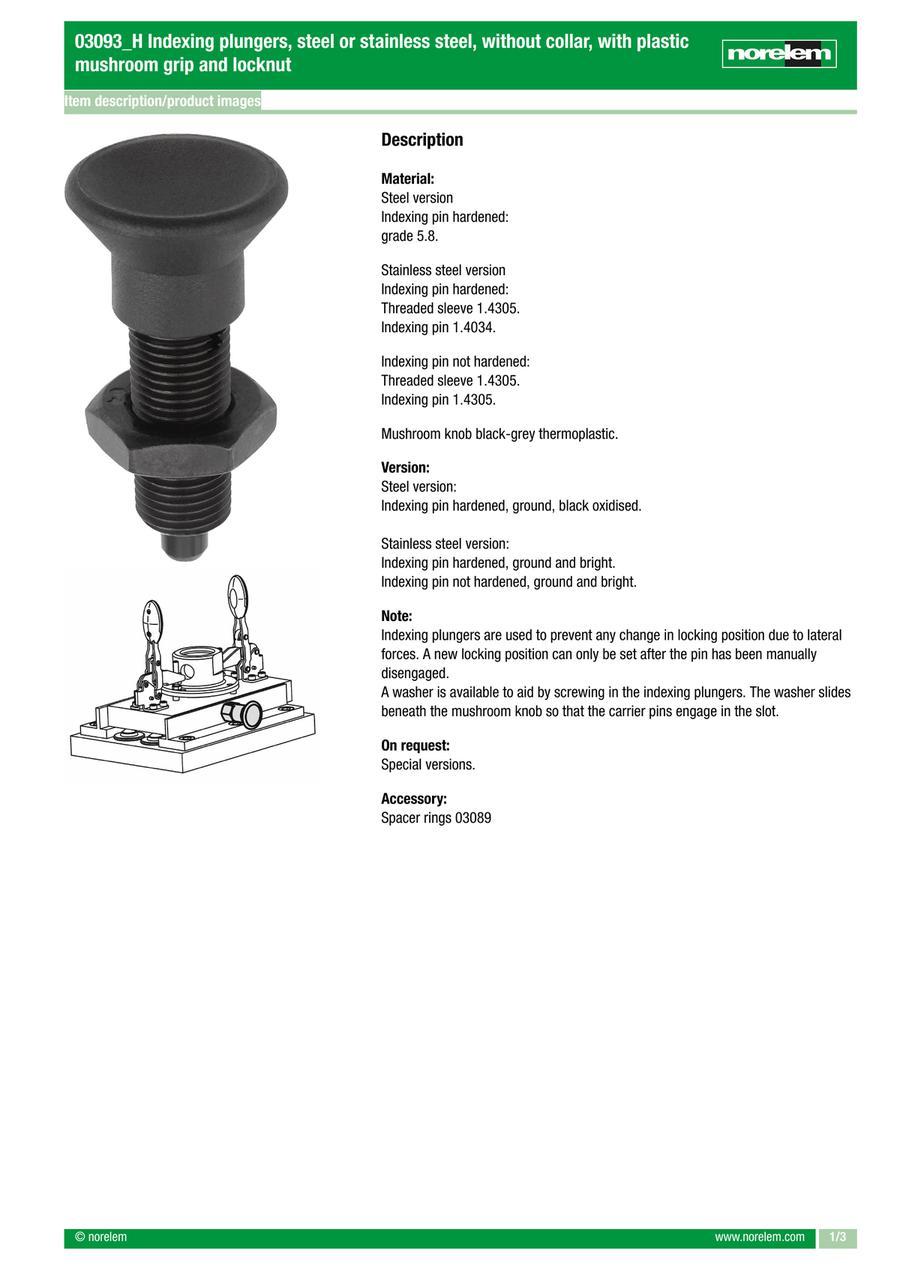

Catalog
