Configure
- Body Material
- Travel S(mm)
- 5
- 6
- 8
- 10
- Length L(mm)
- 47
- 56
- 74
- 80
- Steel code
- 1.4034
- 1.4305
- Grade
- 5.8
- Surface finish body
- Size
- 1
- 2
- 3
- 4
- D=pin diameter(mm)
- 5
- 6
- 8
- 10
- D1=Outside diameter(mm)
- 12
- 14
- 18
- 22
- D2(mm)
- 21
- 25
- 33
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- 2.8
- L1(mm)
- 24
- 28
- 36
- 40
- Spring force final pressure F2 approx.(N)
- 12
- 14
- 34
- 35
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 15
- Est. shipping days
- All
- Within 4 working days

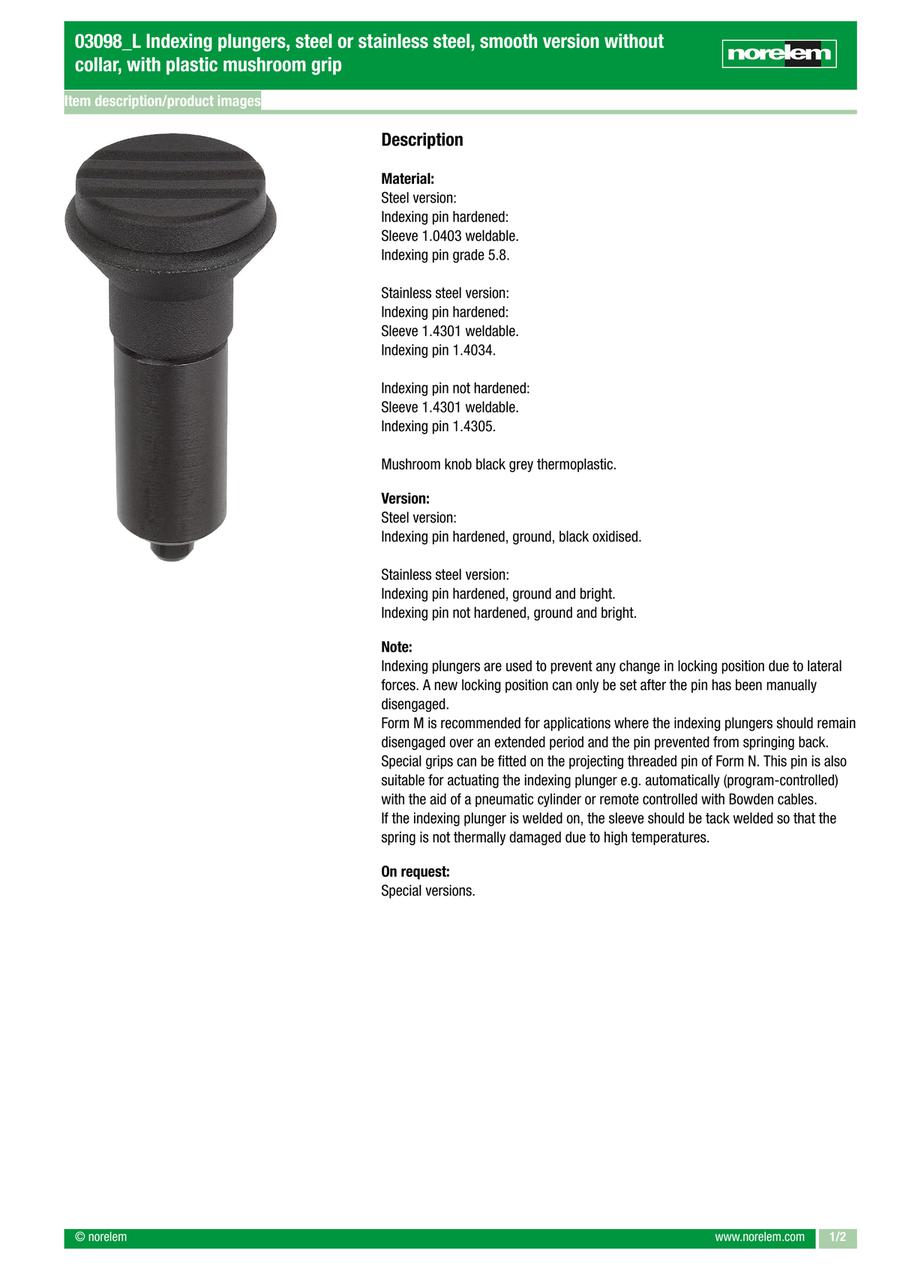

Indexing plungers, steel or stainless steel, smooth version without collar, with plastic mushroom grip (03098)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.40 € ( 18.33 € ) | 4 working days |
17.55 € ( 20.88 € ) | 4 working days |
23.45 € ( 27.91 € ) | 4 working days |
36.92 € ( 43.93 € ) | 4 working days |
9.07 € ( 10.79 € ) | 4 working days |
14.63 € ( 17.41 € ) | 4 working days |
16.68 € ( 19.85 € ) | 4 working days |
22.20 € ( 26.42 € ) | 4 working days |
35.11 € ( 41.78 € ) | 4 working days |
10.02 € ( 11.92 € ) | 4 working days |
13.00 € ( 15.47 € ) | 4 working days |
19.90 € ( 23.68 € ) | 4 working days |
More Information
Basic information
· Indexing plungers facilitate indexing and locking
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Material: steel or stainless steel
