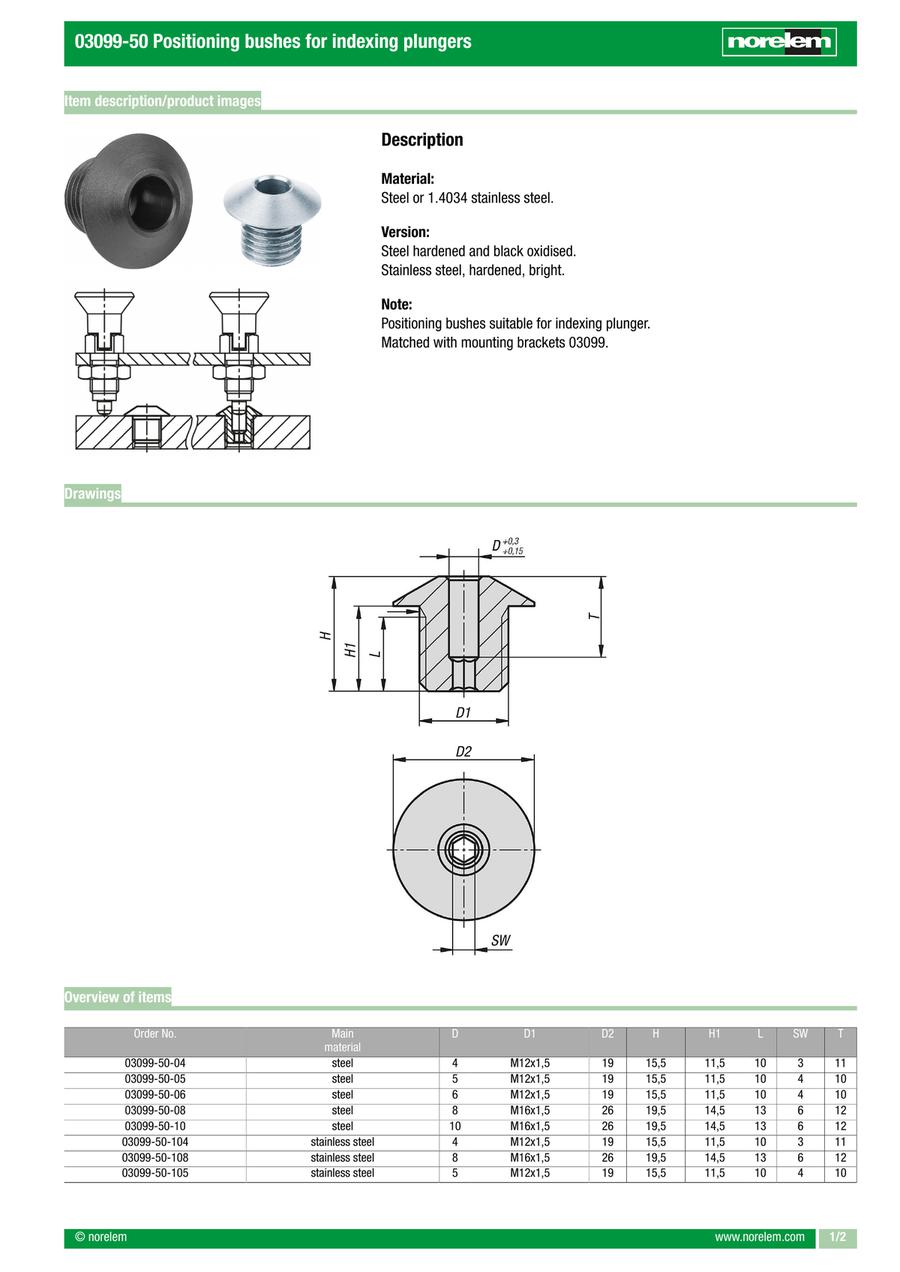

Positioning bushes for indexing plungers (03099-50)

Positioning bushes for indexing plungers (03099-50)

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03099-50-04
    03099-50-05
    03099-50-06
    03099-50-08
    03099-50-10
    03099-50-104
    03099-50-105
    03099-50-106
    03099-50-108
    03099-50-110

    Main material

    Steel code

    Surface finish body

    D=diameter

    (mm)

    D1=Thread

    D2=Outside diameter

    (mm)

    H

    (mm)

    H1

    (mm)

    L=thread length

    (mm)

    SW=key width

    (mm)

    T

    (mm)

    		Minimum order quantity
    Steel
    -
    Carbonitrided and black oxidised
    4
    M12x1,5
    19
    15.5
    11.5
    10
    3
    11
    1 pieces
    Steel
    -
    Carbonitrided and black oxidised
    5
    M12x1,5
    19
    15.5
    11.5
    10
    4
    10
    1 pieces
    Steel
    -
    Carbonitrided and black oxidised
    6
    M12x1,5
    19
    15.5
    11.5
    10
    4
    10
    1 pieces
    Steel
    -
    Carbonitrided and black oxidised
    8
    M16x1,5
    26
    19.5
    14.5
    13
    6
    12
    1 pieces
    Steel
    -
    Carbonitrided and black oxidised
    10
    M16x1,5
    26
    19.5
    14.5
    13
    6
    12
    1 pieces
    Stainless steel
    1.4034
    Hardened and bright
    4
    M12x1,5
    19
    15.5
    11.5
    10
    3
    11
    1 pieces
    Stainless steel
    1.4034
    Hardened and bright
    5
    M12x1,5
    19
    15.5
    11.5
    10
    4
    10
    1 pieces
    Stainless steel
    1.4034
    Hardened and bright
    6
    M12x1,5
    19
    15.5
    11.5
    10
    4
    10
    1 pieces
    Stainless steel
    1.4034
    Hardened and bright
    8
    M16x1,5
    26
    19.5
    14.5
    13
    6
    12
    1 pieces
    Stainless steel
    1.4034
    Hardened and bright
    10
    M16x1,5
    26
    19.5
    14.5
    13
    6
    12
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.27 €
    ( 7.46 € )
    4 working days
    6.27 €
    ( 7.46 € )
    4 working days
    6.27 €
    ( 7.46 € )
    4 working days
    7.22 €
    ( 8.59 € )
    4 working days
    7.22 €
    ( 8.59 € )
    4 working days
    8.87 €
    ( 10.56 € )
    4 working days
    8.87 €
    ( 10.56 € )
    4 working days
    8.87 €
    ( 10.56 € )
    4 working days
    12.61 €
    ( 15.01 € )
    4 working days
    12.61 €
    ( 15.01 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Aids for exact positioning tasks

    · High wear resistance
