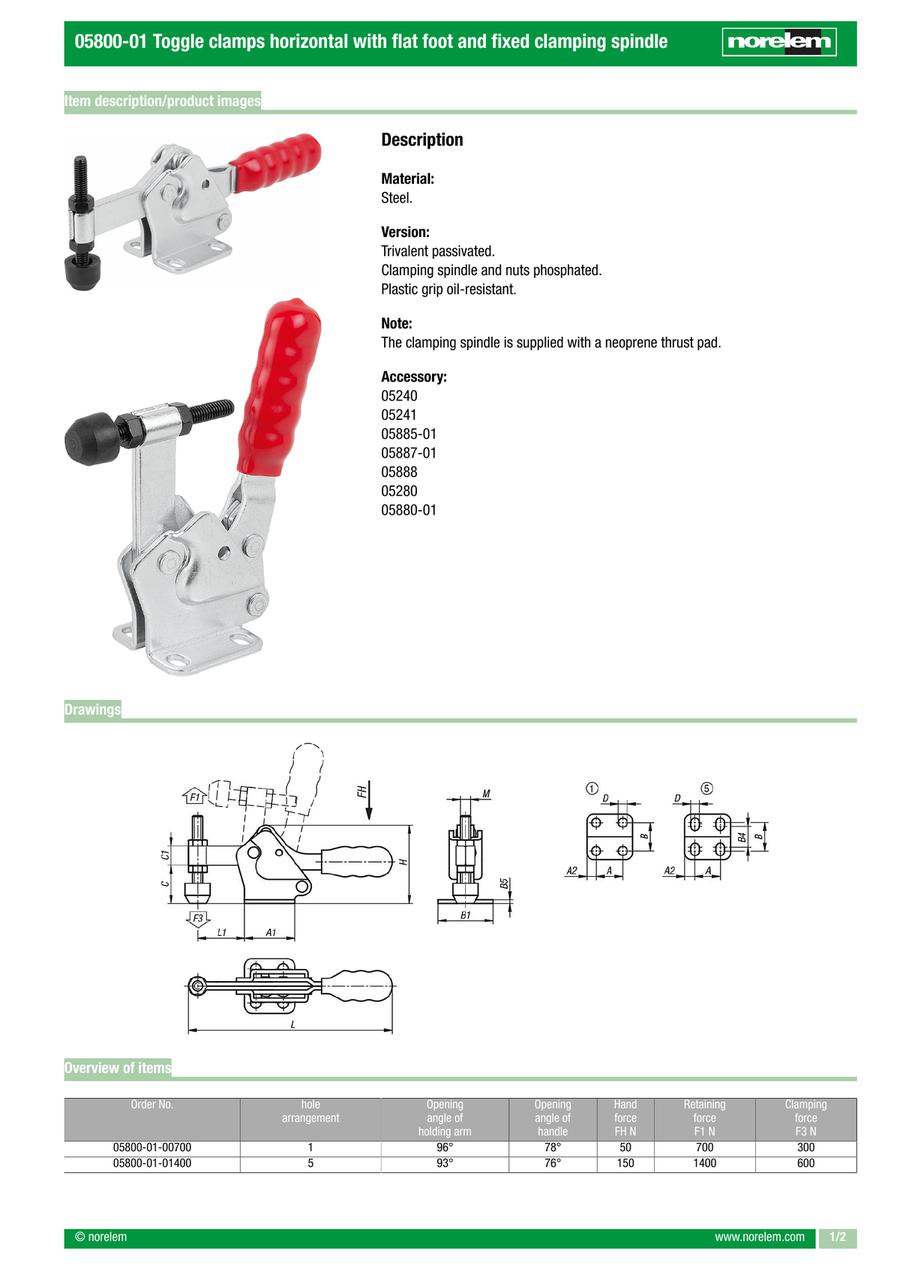

Toggle clamps horizontal with flat foot and fixed clamping spindle (05800)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05800-01-00700 |
| 05800-01-01400 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tightening Force (N) | Opening angle of holding arm | Opening angle of handle | Retaining force F1 (N) | Clamping force F3 (N) | hole arrangement | A (mm) | A1 (mm) | A2 (mm) | B (mm) | B1 (mm) | B4 (mm) | B5 (mm) | C (mm) | C1 (mm) | D (mm) | H (mm) | L=Length (mm) | L1 (mm) | M=clamping spindle | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
17.48 € | 1 | 4 Days | 50 | 96° | 78° | 700 | 300 | 1 | 13.5 | 25 | 5.7 | 16.8 | 27 | - | 2 | 19 | 9.5 | 5.2 | 38.8 | 101 | 23 | M5x35 | ||
21.53 € | 1 | 4 Days | 150 | 93° | 76° | 1400 | 600 | 5 | 26 | 38 | 6 | 28 | 40 | 22 | 2.5 | 25 | 14 | 5.5 | 53 | 156 | 38 | M6x50 |
Loading...
Basic information
| Body Material | Steel | Surface finish body | galvanised and passivated | Component material | Plastic |
|---|---|---|---|---|---|
| Component colour | red |
