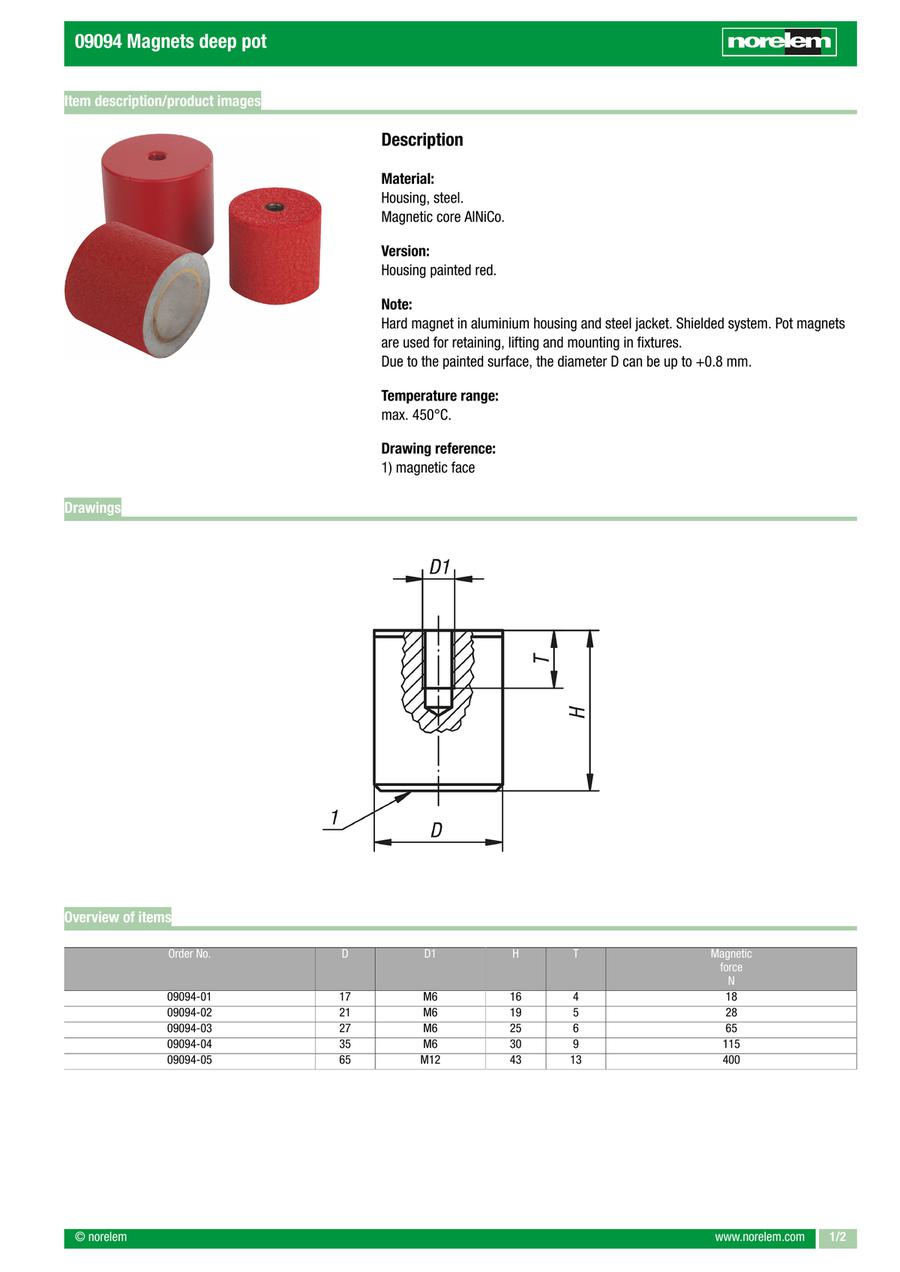

Magnets deep pot (09094)
- Volume Discount
· Flexible, easy to remove, non-positive fasteners
· Application sectors: machine, plant and fixture construction
· Temperature range up to 450 °C
· Shielded system
· Application sectors: machine, plant and fixture construction
· Temperature range up to 450 °C
· Shielded system
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 09094-01 |
| 09094-02 |
| 09094-03 |
| 09094-04 |
| 09094-05 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Magnetic force (N) | Outer Diameter (Ø) | D1=Thread | H=Height (mm) | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|
5.27 € | 1 | Available | 4 Days | 18 | 17 | M6 | 16 | 4 | |
5.60 € | 1 | Available | 4 Days | 28 | 21 | M6 | 19 | 5 | |
8.46 € | 1 | Available | 4 Days | 65 | 27 | M6 | 25 | 6 | |
15.61 € | 1 | Available | 4 Days | 115 | 35 | M6 | 30 | 9 | |
62.65 € | 1 | Available | 4 Days | 400 | 65 | M12 | 43 | 13 |
Loading...
Basic information
| Magnet Type (Material) | Alnico Magnet | Surface finish component | painted | Component colour | red |
|---|---|---|---|---|---|
| Temperature max.(°C) | 450 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
