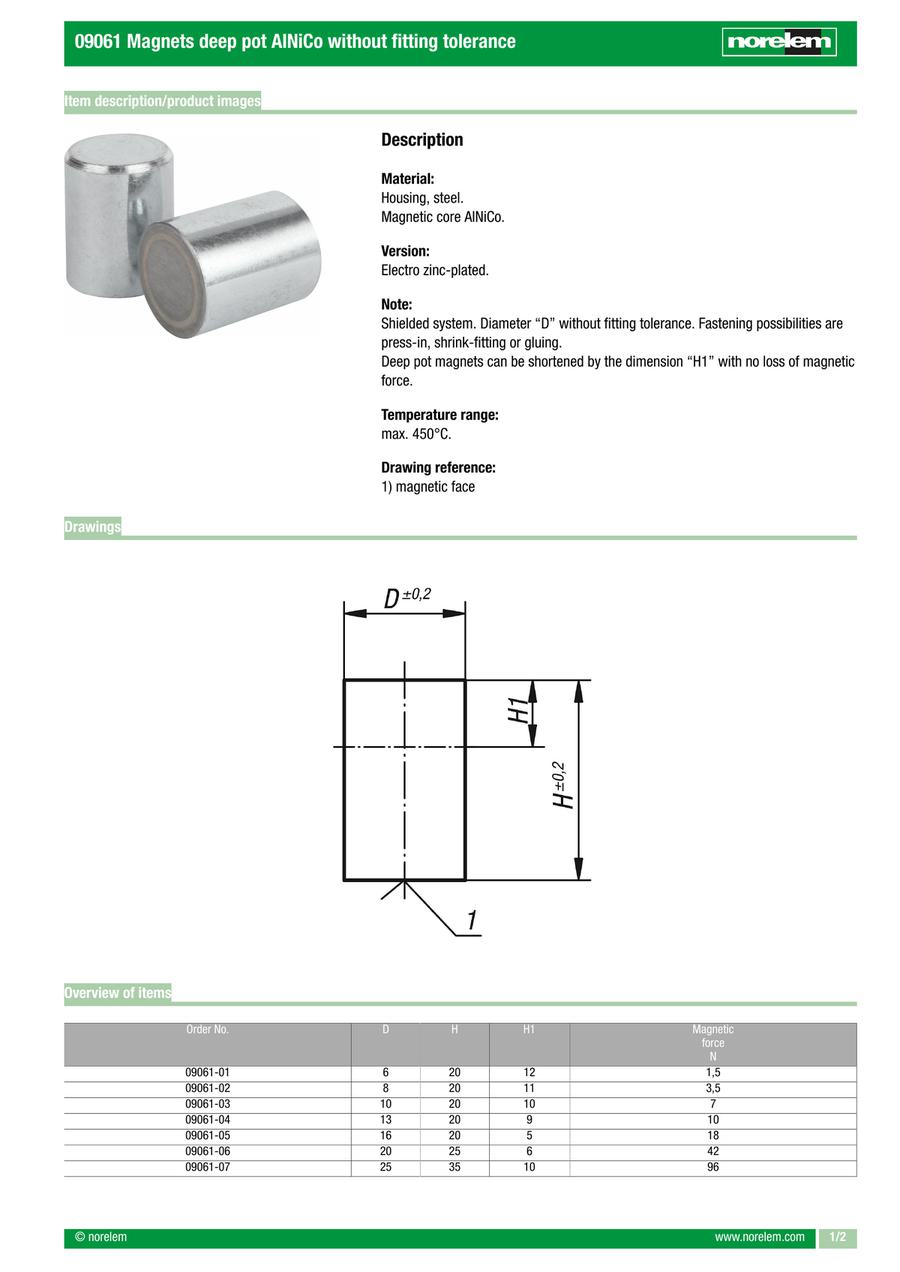

Magnets deep pot AlNiCo without fitting tolerance (09061)
- Volume Discount
· Application sectors: machine and plant construction
· Temperature range up to 450 °C
· Assembly: press in, shrink-fit or glue
· Height is customer specific
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 09061-01 |
| 09061-02 |
| 09061-03 |
| 09061-04 |
| 09061-05 |
| 09061-06 |
| 09061-07 |
| 09061-08 |
| 09061-09 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Magnetic force (N) | Outer Diameter (Ø) | H=Height (mm) | H1 (mm) | |
|---|---|---|---|---|---|---|---|---|
6.73 € | 1 | Available | 4 Days | 1.5 | 6 | 20 | 12 | |
5.33 € | 1 | Available | 4 Days | 3.5 | 8 | 20 | 11 | |
5.74 € | 1 | Available | 4 Days | 7 | 10 | 20 | 10 | |
6.31 € | 1 | Available | 4 Days | 10 | 13 | 20 | 9 | |
7.63 € | 1 | Available | 4 Days | 18 | 16 | 20 | 5 | |
9.89 € | 1 | Available | 4 Days | 42 | 20 | 25 | 6 | |
15.48 € | 1 | Available | 4 Days | 96 | 25 | 35 | 10 | |
29.26 € | 1 | Available | 4 Days | 180 | 32 | 40 | 8 | |
64.68 € | 1 | Available | 4 Days | 240 | 40 | 50 | 10 |
Loading...
Basic information
| Magnet Type (Material) | Alnico Magnet | Component material | Steel | Surface finish component | galvanised |
|---|---|---|---|---|---|
| Temperature max.(°C) | 450 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
