NORELEM

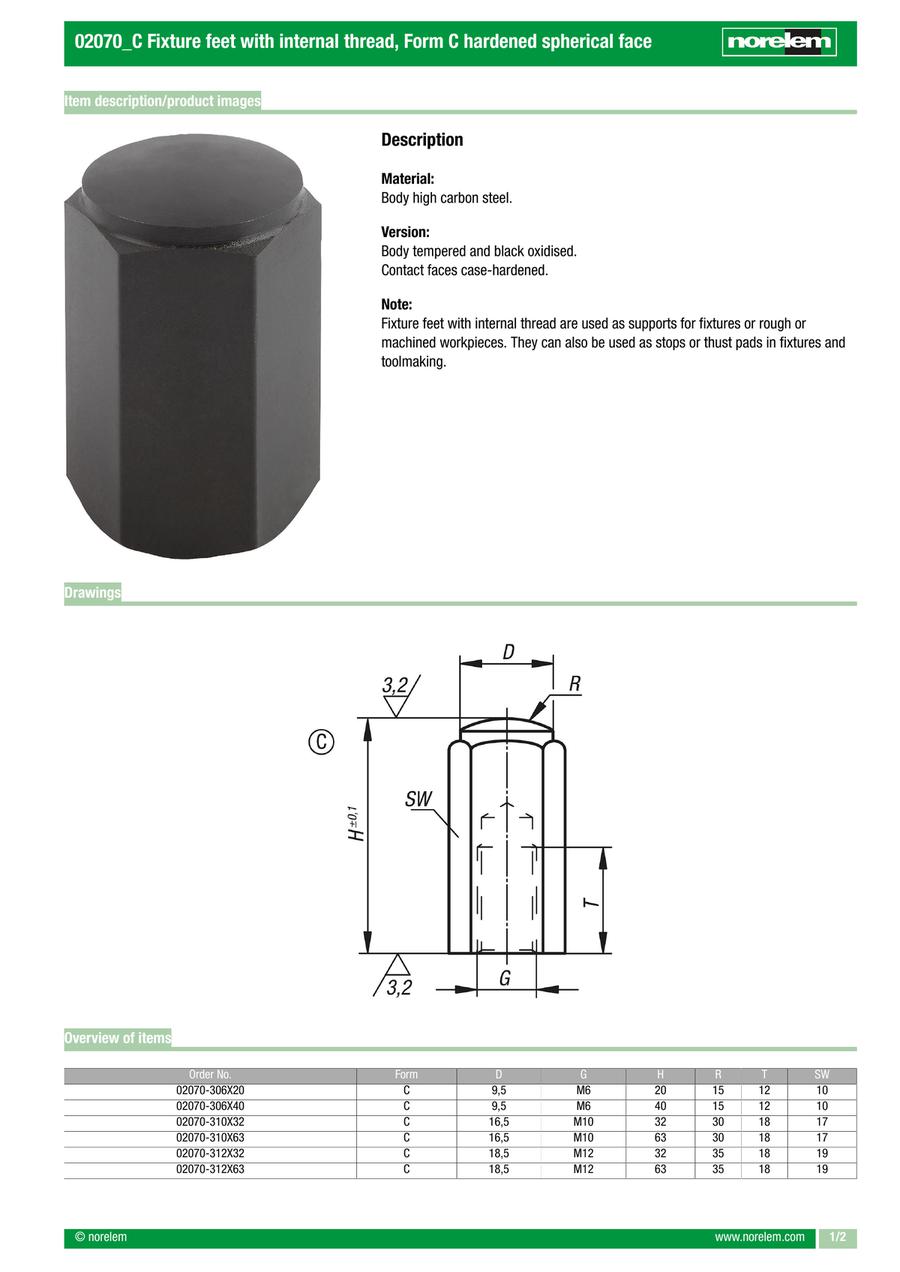

Fixture feet with internal thread, Form C hardened spherical face (02070)

Fixture feet with internal thread, Form C hardened spherical face (02070)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    02070-306X20
    02070-306X40
    02070-310X32
    02070-310X63
    02070-312X32
    02070-312X63
    02070-316X50
    02070-316X100

    D

    (mm)

    G=Thread

    H=Height

    (mm)

    R

    (mm)

    SW=key width

    (mm)

    T=thread depth

    (mm)

    		Minimum order quantity
    9.5
    M6
    20
    15
    10
    12
    1 pieces
    9.5
    M6
    40
    15
    10
    12
    1 pieces
    16.5
    M10
    32
    30
    17
    18
    1 pieces
    16.5
    M10
    63
    30
    17
    18
    1 pieces
    18.5
    M12
    32
    35
    19
    18
    1 pieces
    18.5
    M12
    63
    35
    19
    18
    1 pieces
    23
    M16
    50
    40
    24
    24
    1 pieces
    23
    M16
    100
    40
    24
    24
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    16.04 €
    ( 19.09 € )
    4 working days
    15.80 €
    ( 18.80 € )
    4 working days
    13.30 €
    ( 15.83 € )
    4 working days
    14.16 €
    ( 16.85 € )
    4 working days
    18.51 €
    ( 22.03 € )
    4 working days
    18.93 €
    ( 22.53 € )
    4 working days
    29.08 €
    ( 34.61 € )
    4 working days
    36.36 €
    ( 43.27 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Serve as supports, stops and thrust pads

    · Application sectors: machine and fixture construction, toolmaking

    · For supporting workpieces and fixtures

    · Case-hardened support surfaces
