NORELEM

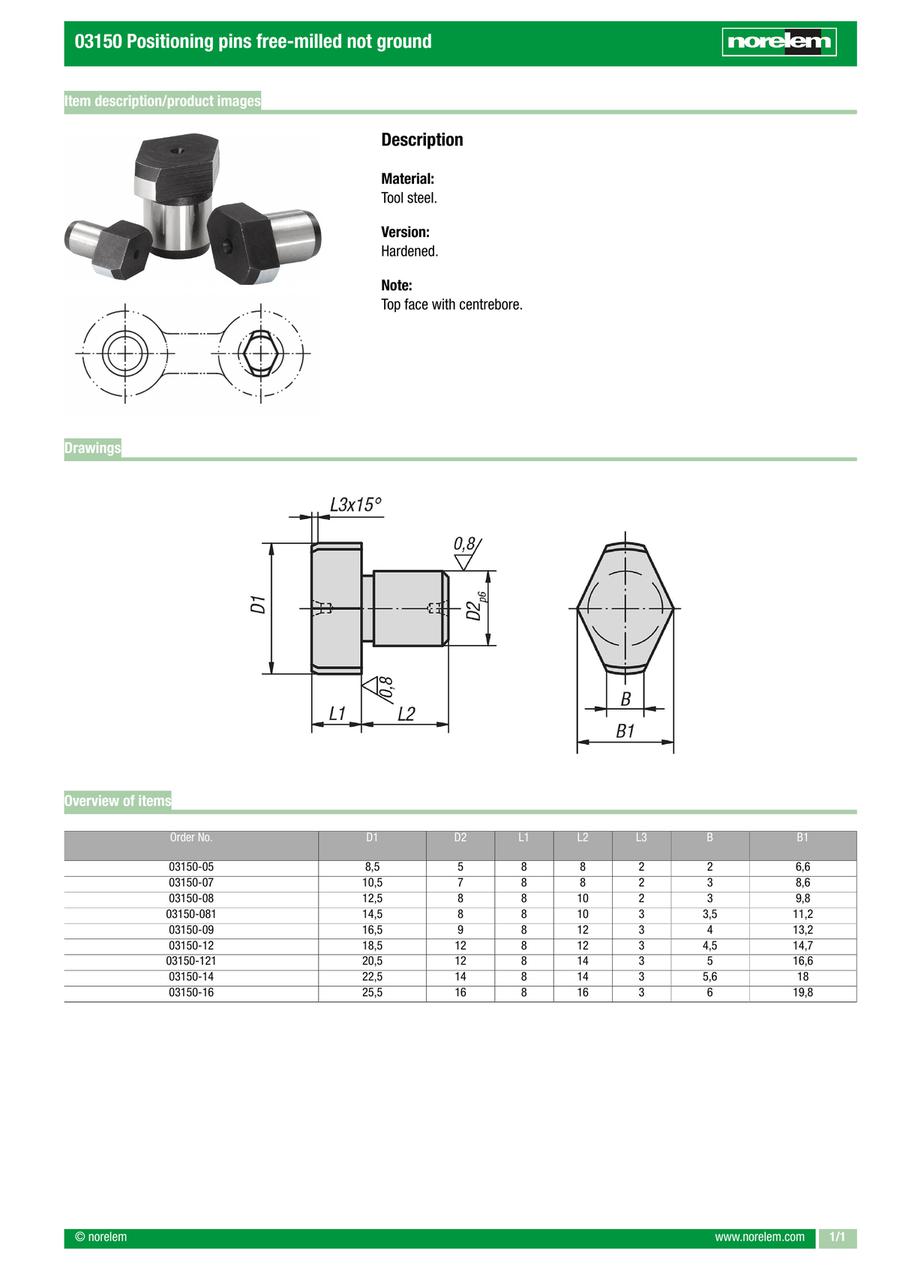

Positioning pins free-milled not ground (03150)

Positioning pins free-milled not ground (03150)

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03150-05
    03150-07
    03150-08
    03150-09
    03150-081
    03150-12
    03150-14
    03150-16
    03150-121

    Tip O.D.

    (mm)

    B

    (mm)

    B1

    (mm)

    D2=Pin diameter

    (mm)

    L2

    (mm)

    L3

    (mm)

    		Minimum order quantity
    8.5
    2
    6.6
    5
    8
    2
    1 pieces
    10.5
    3
    8.6
    7
    8
    2
    1 pieces
    12.5
    3
    9.8
    8
    10
    2
    1 pieces
    16.5
    4
    13.2
    9
    12
    3
    1 pieces
    14.5
    3.5
    11.2
    8
    10
    3
    1 pieces
    18.5
    4.5
    14.7
    12
    12
    3
    1 pieces
    22.5
    5.6
    18
    14
    14
    3
    1 pieces
    25.5
    6
    19.8
    16
    16
    3
    1 pieces
    20.5
    5
    16.6
    12
    14
    3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.12 €
    ( 10.85 € )
    4 working days
    10.05 €
    ( 11.96 € )
    4 working days
    10.64 €
    ( 12.66 € )
    4 working days
    12.21 €
    ( 14.53 € )
    4 working days
    11.40 €
    ( 13.57 € )
    4 working days
    12.49 €
    ( 14.86 € )
    4 working days
    16.41 €
    ( 19.53 € )
    4 working days
    17.40 €
    ( 20.71 € )
    4 working days
    14.02 €
    ( 16.68 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Also suitable for use as stops and feet

    · High concentric accuracy

    · Toleranced dimension for exact positioning
