Configure
- Main material
- Component material
- Surface finish body
- Main colour
- Material (mount surface / support surface)
- B=Thread length(mm)
- 25
- 30
- 35
- 40
- 50
- Ball Ø(mm)
- 8.5
- 12
- 16
- 25
- D1=Outside diameter(mm)
- 14.5
- 19
- 27
- 33
- D3(mm)
- 5.8
- 8.6
- 10.5
- 20
- E(mm)
- 14.5
- 19
- 27
- 33
- H=Height(mm)
- 11.6
- 15.7
- 20.7
- 27.3
- L(mm)
- 36.6
- 45.7
- 50.7
- 60.7
- 77.3
- SW(mm)
- 13
- 17
- 24
- 30
- Load rating max. (static load only)(kN)
- 8
- 15
- 25
- 90
- Est. shipping days
- All
- Within 4 working days

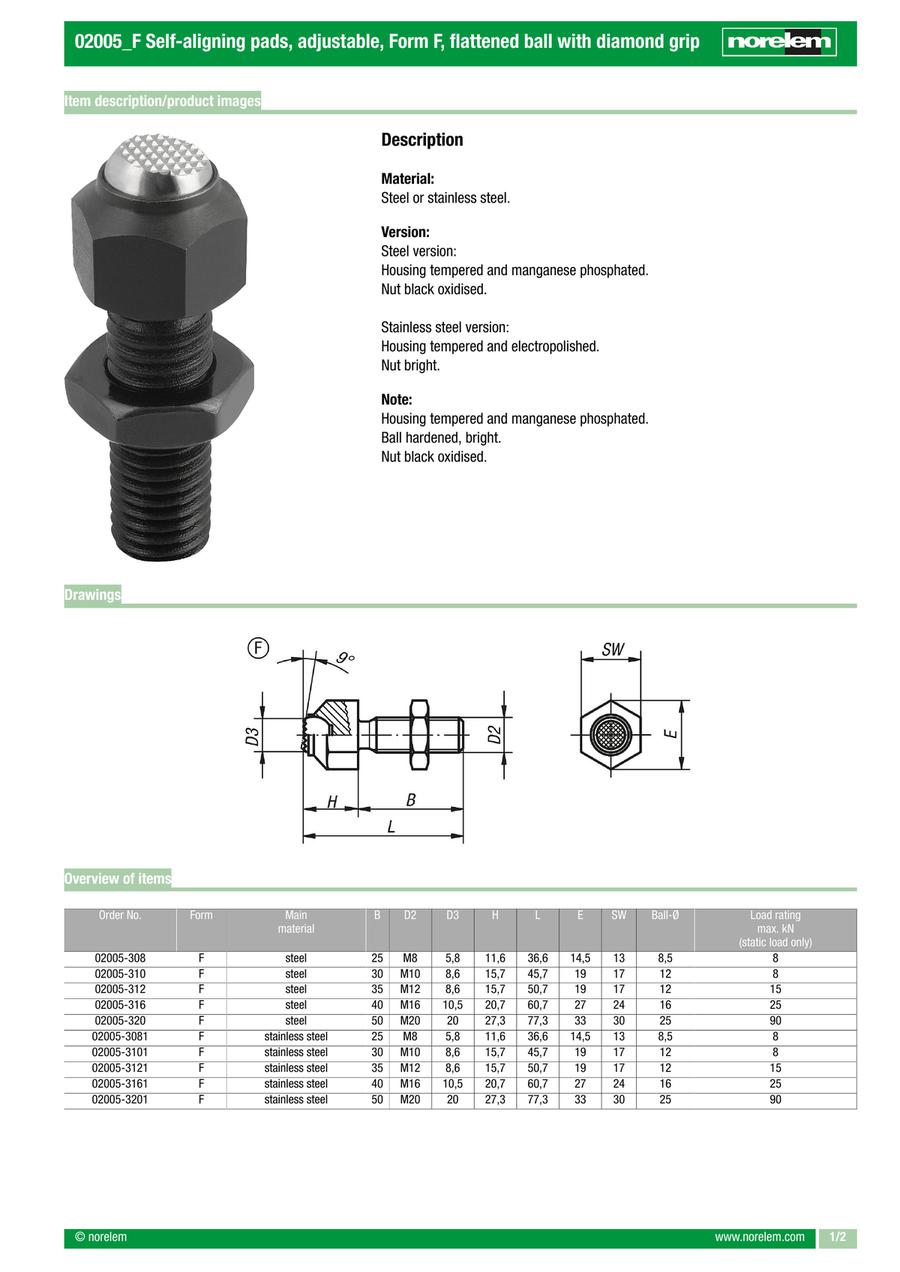

Self-aligning pads, adjustable, Form F, flattened ball with diamond grip (02005)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
46.04 € ( 54.79 € ) | 4 working days |
55.27 € ( 65.77 € ) | 4 working days |
59.02 € ( 70.23 € ) | 4 working days |
70.84 € ( 84.30 € ) | 4 working days |
59.02 € ( 70.23 € ) | 4 working days |
70.84 € ( 84.30 € ) | 4 working days |
83.50 € ( 99.36 € ) | 4 working days |
100.20 € ( 119.24 € ) | 4 working days |
131.45 € ( 156.43 € ) | 4 working days |
157.71 € ( 187.67 € ) | 4 working days |
More Information
Basic information
· Serve as supports, stops and thrust pads
· Application sectors: machine and fixture construction, assembly
· Ball secured against rotation
· Version: steel or stainless steel
