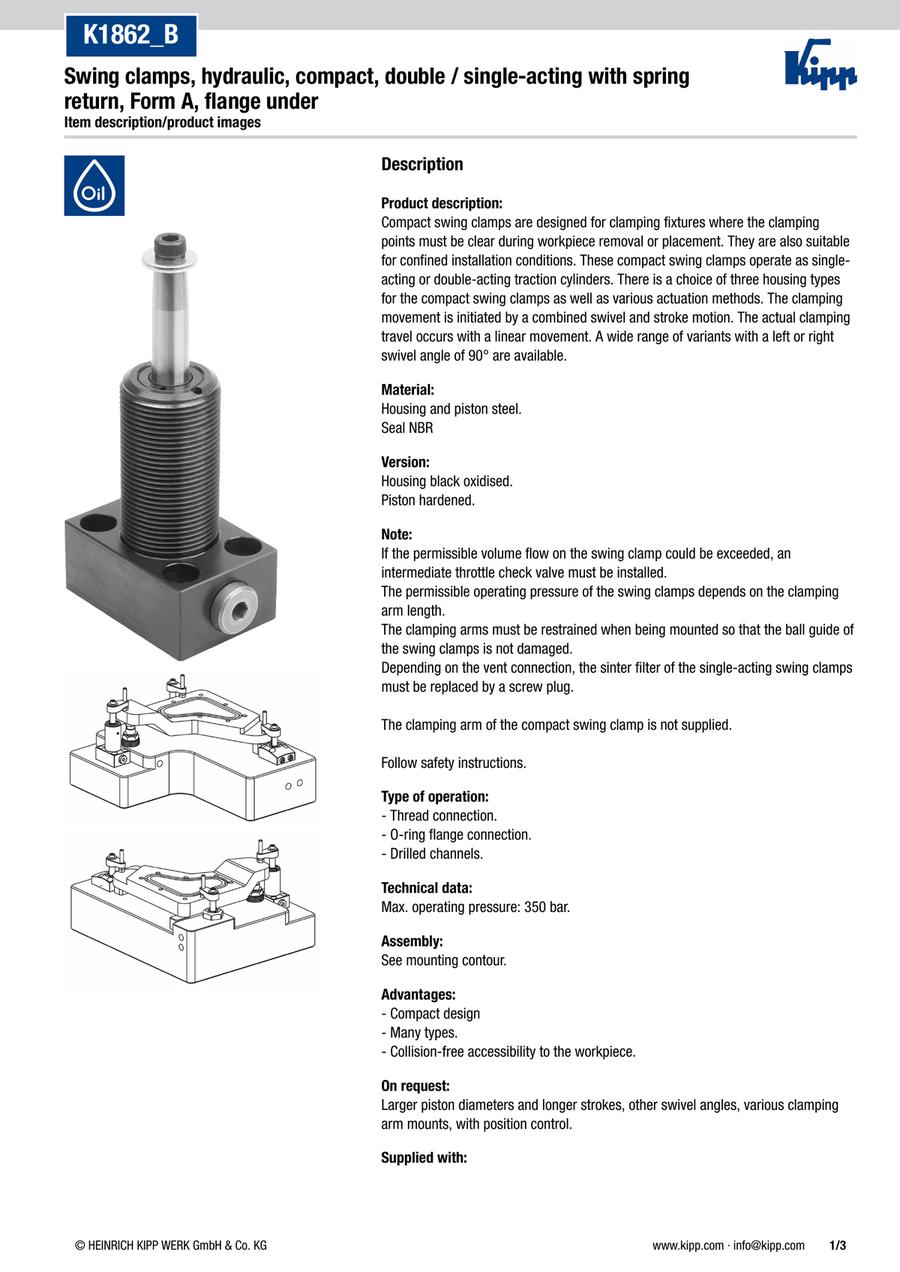

Swing clamps, hydraulic, compact, double / single-acting with spring return, Form B, flange under (K1862)
· Many types
· Collision-free accessibility to the workpiece
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1862.14062105190100 |
| K1862.14062105190200 |
| K1862.14062205190100 |
| K1862.14062205190200 |
| K1862.14081105190100 |
| K1862.14081105190200 |
| K1862.14081205190100 |
| K1862.14081205190200 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Form-Type | B4 (mm) | H6 (mm) | H7 (mm) | Connection type | Travel | Swivel direction | B3 (mm) | L8 (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
420.90 € | 1 | 4 Days | single-acting | - | 6 | 10 | screw connection | 6 | right | - | - | 0.4900 | ||
420.90 € | 1 | 4 Days | single-acting | - | 6 | 10 | screw connection | 6 | left | - | - | 0.4900 | ||
420.90 € | 1 | 4 Days | single-acting | 16 | 6 | 10 | O-ring flange connection | 6 | right | 16 | - | 0.4900 | ||
420.90 € | 1 | 4 Days | single-acting | 16 | 6 | 10 | O-ring flange connection | 6 | left | 16 | - | 0.4900 | ||
420.90 € | 1 | 4 Days | double-acting | - | 8 | 8 | screw connection | 8 | right | - | - | 0.5100 | ||
425.50 € | 1 | 4 Days | double-acting | - | 8 | 8 | screw connection | 8 | left | - | - | 0.5100 | ||
425.50 € | 1 | 4 Days | double-acting | 16 | 8 | 8 | O-ring flange connection | 8 | right | 16 | 58 | 0.5100 | ||
425.50 € | 1 | 4 Days | double-acting | 16 | 8 | 8 | O-ring flange connection | 8 | left | 16 | 58 | 0.5100 |
Loading...
Basic information
| Main material | Steel | Surface finish body | black oxidized | Form | B |
|---|---|---|---|---|---|
| B(mm) | 35 | B2(mm) | 22 | D(mm) | 10 |
| G(mm) | M27x1.5 | H(mm) | 110 | H1(mm) | 103 |
| H2(mm) | 91 | H3(mm) | 70 | H5(mm) | 11 |
| L(mm) | 50 | L3(mm) | 35 | Item | Swing Clamp |
| Version 1 | compact | Version 2 | hydraulic | H8(mm) | 12 |
| H9(mm) | 11.5 | Piston diameter(mm) | 14 | Flow rate max.(cm³/s) | 2.5 |
| Oil requirement / Stroke(cm³) | 1.2 | H10(mm) | 7 | H11(mm) | 22 |
| PL Edelstahl | false | RoHS | true |
