Clamp straps open U flat pin, Steel or Aluminium (K1953)

Configure

Main material
- Aluminium
- High carbon steel
A=Height(mm)
- 15
- 20
- 25
- 28
- 30
- 36
- 40
- 48
- 50
B1(mm)
- 9
- 11
- 14
- 18
- 22
- 26
- 34
B2=Width(mm)
- 30
- 40
- 50
- 60
- 70
- 80
B3(mm)
- 16
- 20
- 24
- 28
- 35
- 43
- 50
L2(mm)
- 32
- 38
- 47
- 57
- 68
- 83
- 88
L3(mm)
- 18
- 24
- 30
- 36
- 45
- 56
for Screw
L1=Length(mm)
- 100
- 125
- 160
- 200
- 250
- 315
- 400
Weight(kg)
- 0.1331
- 0.2351
- 0.3112
- 0.3798
- 0.3800
- 0.5031
- 0.6206
- 0.7486
- 0.8668
- 0.9635
- 1.0400
- 1.2000
- 1.4430
- 1.5080
- 1.5660
- 1.7430
- 2.8460
- 3.1240
- 3.4370
- 3.8600
- 4.3000
- 5.9000
- 5.9100
- 7.3910
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

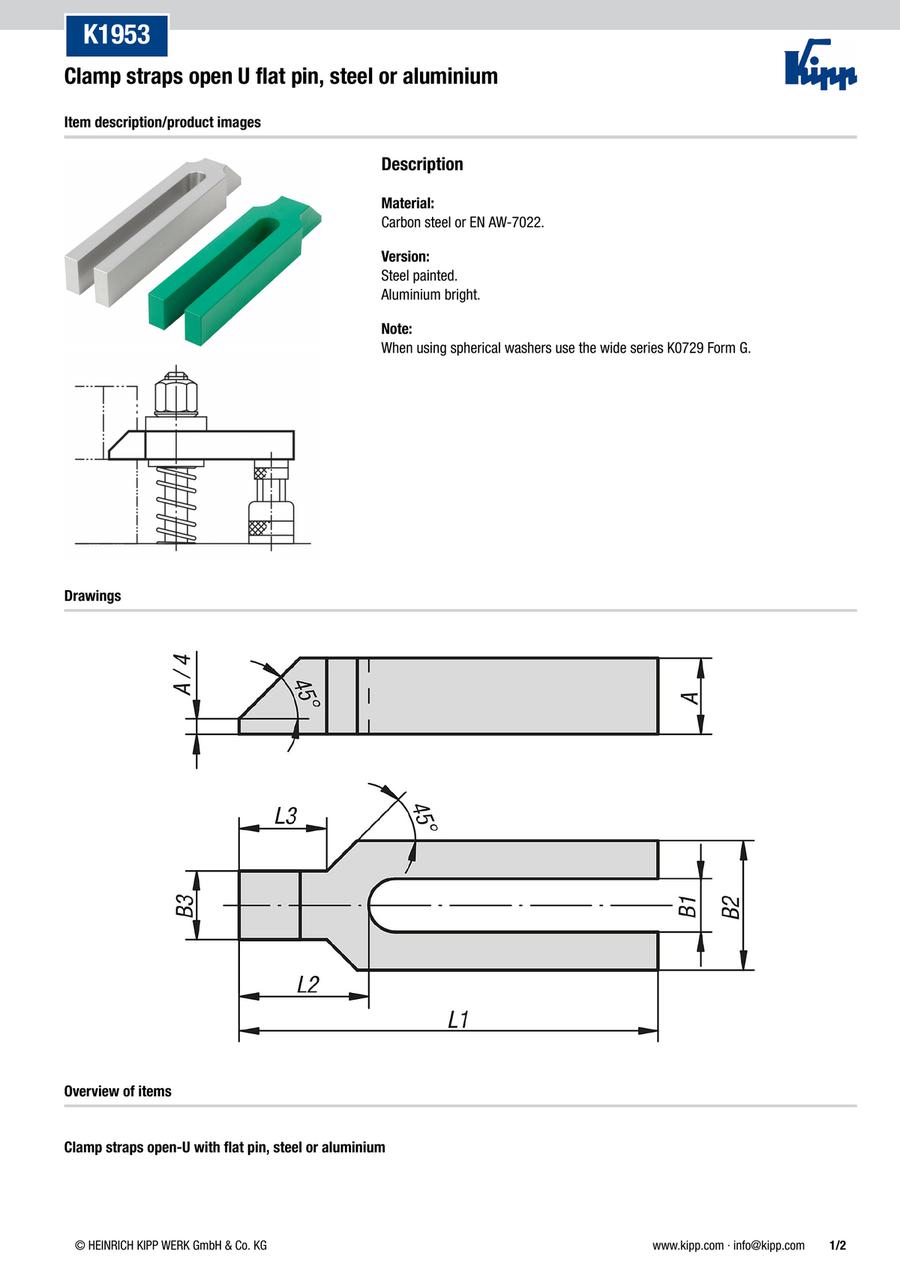

Clamp straps open U flat pin, Steel or Aluminium (K1953)

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main material

A=Height

(mm)

B2=Width

(mm)

for Screw

L1=Length

(mm)

Weight

(kg)

Minimum order quantity

High carbon steel	15	9	30	16	32	18	M8	100	0.2351	1 pieces
High carbon steel	20	11	30	20	38	24	M10	125	0.3798	1 pieces
High carbon steel	25	14	40	24	47	30	M12/M14	160	0.7486	1 pieces
High carbon steel	30	18	50	28	57	36	M16/M18	200	1.4430	1 pieces
High carbon steel	40	22	60	35	68	45	M20/M22	250	2.8460	1 pieces
High carbon steel	40	26	70	43	83	56	M24	250	3.4370	1 pieces
High carbon steel	50	34	80	50	88	56	M30/M32	315	5.9100	1 pieces
High carbon steel	25	14	40	24	47	30	M12/M14	200	0.9635	1 pieces
High carbon steel	30	18	50	28	57	36	M16/M18	250	1.7430	1 pieces
High carbon steel	40	22	60	35	68	45	M20/M22	315	3.8600	1 pieces
Aluminium	15	9	30	16	32	18	M8	100	0.3800	1 pieces
Aluminium	20	11	30	20	38	24	M10	125	0.1331	1 pieces
Aluminium	28	14	40	24	47	30	M12/M14	160	0.3112	1 pieces
Aluminium	36	14	40	24	47	30	M12/M14	200	0.5031	1 pieces
Aluminium	36	18	50	28	57	36	M16/M18	200	0.6206	1 pieces
Aluminium	40	18	50	28	57	36	M16/M18	250	0.8668	1 pieces
Aluminium	40	22	60	35	68	45	M20/M22	250	1.0400	1 pieces
Aluminium	48	22	60	35	68	45	M20/M22	315	1.5660	1 pieces
Aluminium	40	26	70	43	83	56	M24	250	1.2000	1 pieces
Aluminium	48	26	70	43	83	56	M24	315	1.5080	1 pieces
Aluminium	50	34	80	50	88	56	M30/M32	315	5.9000	1 pieces
Aluminium	50	34	80	50	88	56	M30/M32	400	3.1240	1 pieces
High carbon steel	40	26	70	43	83	56	M24	315	4.3000	1 pieces
High carbon steel	50	34	80	50	88	56	M30/M32	400	7.3910	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

17.60 € ( 20.94 € )	4 working days
23.05 € ( 27.43 € )	4 working days
24.23 € ( 28.83 € )	4 working days
36.29 € ( 43.19 € )	4 working days
59.46 € ( 70.76 € )	4 working days
77.30 € ( 91.99 € )	4 working days
117.73 € ( 140.10 € )	4 working days
27.58 € ( 32.82 € )	4 working days
41.34 € ( 49.19 € )	4 working days
75.70 € ( 90.08 € )	4 working days
44.37 € ( 52.80 € )	4 working days
41.07 € ( 48.87 € )	4 working days
36.14 € ( 43.01 € )	4 working days
55.44 € ( 65.97 € )	4 working days
66.53 € ( 79.17 € )	4 working days
86.40 € ( 102.82 € )	4 working days
113.37 € ( 134.91 € )	4 working days
147.87 € ( 175.97 € )	4 working days
115.92 € ( 137.94 € )	4 working days
160.20 € ( 190.64 € )	4 working days
154.51 € ( 183.87 € )	4 working days
209.05 € ( 248.77 € )	4 working days
85.99 € ( 102.33 € )	4 working days
134.50 € ( 160.06 € )	4 working days

More Information

Basic information

Basic information

· Large adjustment range

· Flexible application

· Application sectors: machine construction, toolmaking, fixture construction

· For clamping any workpiece and component

Catalog

Products homepage

Catalog (2-page spread)
