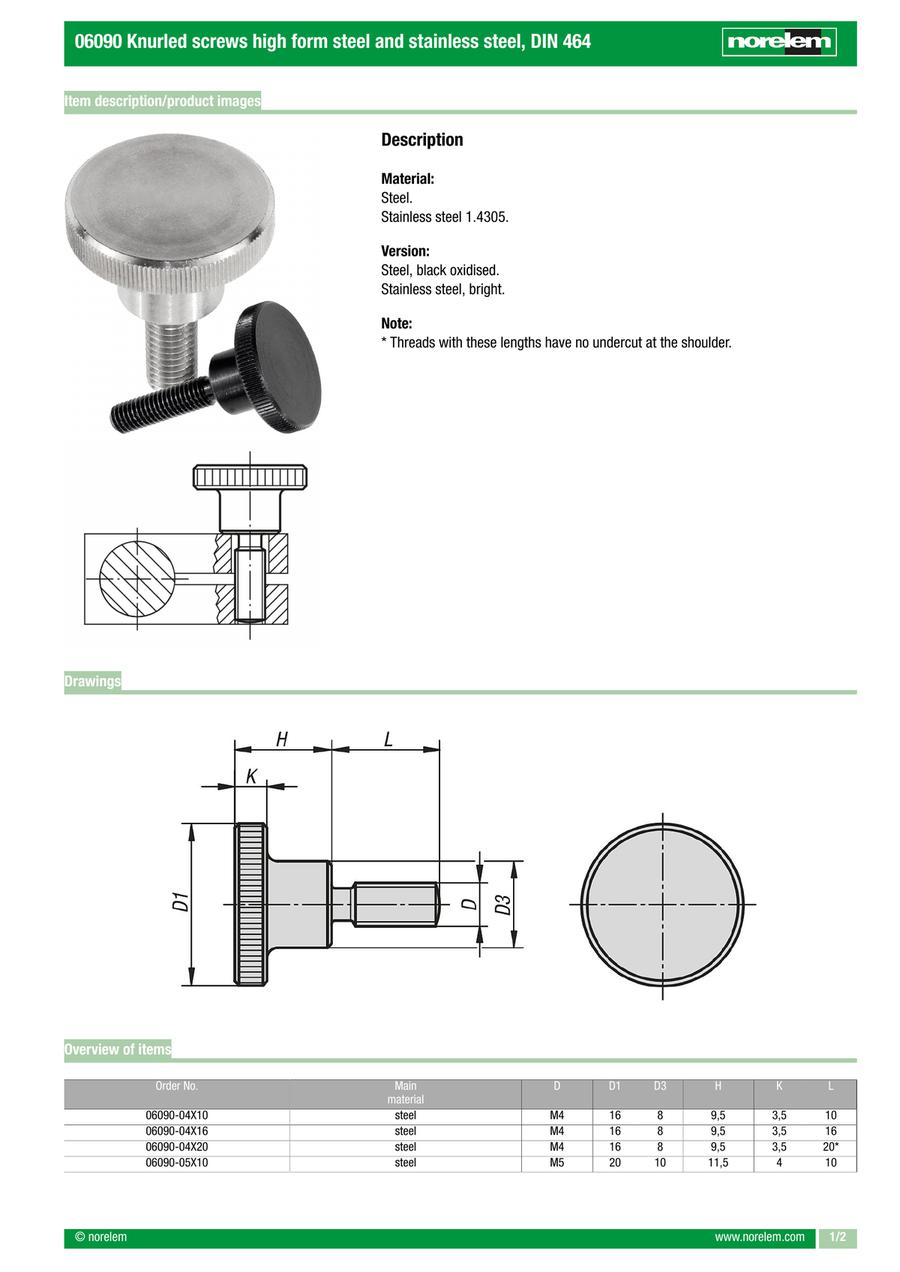

Knurled screws high form steel and stainless steel, DIN 464 (06090)
· Application fields: machine, plant and fixture construction, toolmaking
· Advantage: knurled nut is tightened and loosened with tools
· Material: free-cutting steel or stainless steel 1.4305
· Different thread sizes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=thread (M) | Length L (mm) | Material | Surface finish body | D1=Outside diameter (mm) | D3 (mm) | K (mm) | H=Height (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.24 € | 1 | 4 Days | 4 | 10 | Steel | Black oxidised | 16 | 8 | 3.5 | 9.5 | ||
1.42 € | 1 | 4 Days | 4 | 16 | Steel | Black oxidised | 16 | 8 | 3.5 | 9.5 | ||
1.64 € | 1 | 4 Days | 4 | 20 | Steel | Black oxidised | 16 | 8 | 3.5 | 9.5 | ||
1.55 € | 1 | 4 Days | 5 | 10 | Steel | Black oxidised | 20 | 10 | 4 | 11.5 | ||
1.66 € | 1 | 4 Days | 5 | 16 | Steel | Black oxidised | 20 | 10 | 4 | 11.5 | ||
1.81 € | 1 | 4 Days | 5 | 20 | Steel | Black oxidised | 20 | 10 | 4 | 11.5 | ||
1.96 € | 1 | 4 Days | 6 | 10 | Steel | Black oxidised | 24 | 12 | 5 | 15 | ||
2.18 € | 1 | 4 Days | 6 | 16 | Steel | Black oxidised | 24 | 12 | 5 | 15 | ||
2.39 € | 1 | 4 Days | 6 | 20 | Steel | Black oxidised | 24 | 12 | 5 | 15 | ||
2.58 € | 1 | 4 Days | 6 | 25 | Steel | Black oxidised | 24 | 12 | 5 | 15 | ||
3.05 € | 1 | 4 Days | 8 | 16 | Steel | Black oxidised | 30 | 16 | 6 | 18 | ||
3.27 € | 1 | 4 Days | 8 | 20 | Steel | Black oxidised | 30 | 16 | 6 | 18 | ||
3.64 € | 1 | 4 Days | 8 | 25 | Steel | Black oxidised | 30 | 16 | 6 | 18 | ||
4.31 € | 1 | 4 Days | 8 | 30* | Steel | Black oxidised | 30 | 16 | 6 | 18 | ||
2.69 € | 1 | 4 Days | 4 | 10 | Stainless Steel | Bright | 16 | 8 | 3.5 | 9.5 | ||
3.02 € | 1 | 4 Days | 4 | 16 | Stainless Steel | Bright | 16 | 8 | 3.5 | 9.5 | ||
3.45 € | 1 | 4 Days | 4 | 20 | Stainless Steel | Bright | 16 | 8 | 3.5 | 9.5 | ||
3.23 € | 1 | 4 Days | 5 | 10 | Stainless Steel | Bright | 20 | 10 | 4 | 11.5 | ||
3.53 € | 1 | 4 Days | 5 | 16 | Stainless Steel | Bright | 20 | 10 | 4 | 11.5 | ||
3.88 € | 1 | 4 Days | 5 | 20 | Stainless Steel | Bright | 20 | 10 | 4 | 11.5 | ||
4.21 € | 1 | 4 Days | 6 | 10 | Stainless Steel | Bright | 24 | 12 | 5 | 15 | ||
4.57 € | 1 | 4 Days | 6 | 16 | Stainless Steel | Bright | 24 | 12 | 5 | 15 | ||
5.04 € | 1 | 4 Days | 6 | 20 | Stainless Steel | Bright | 24 | 12 | 5 | 15 | ||
5.46 € | 1 | 4 Days | 6 | 25 | Stainless Steel | Bright | 24 | 12 | 5 | 15 | ||
6.53 € | 1 | 4 Days | 8 | 16 | Stainless Steel | Bright | 30 | 16 | 6 | 18 | ||
6.98 € | 1 | 4 Days | 8 | 20 | Stainless Steel | Bright | 30 | 16 | 6 | 18 | ||
7.66 € | 1 | 4 Days | 8 | 25 | Stainless Steel | Bright | 30 | 16 | 6 | 18 | ||
8.34 € | 1 | 4 Days | 8 | 30 | Stainless Steel | Bright | 30 | 16 | 6 | 18 | ||
4.66 € | 1 | 4 Days | 10 | 20 | Steel | Black oxidised | 36 | 20 | 8 | 23 | ||
5.06 € | 1 | 4 Days | 10 | 25 | Steel | Black oxidised | 36 | 20 | 8 | 23 | ||
5.29 € | 1 | 4 Days | 10 | 30 | Steel | Black oxidised | 36 | 20 | 8 | 23 | ||
6.03 € | 1 | 4 Days | 10 | 40 | Steel | Black oxidised | 36 | 20 | 8 | 23 | ||
9.88 € | 1 | 4 Days | 10 | 20 | Stainless Steel | Bright | 36 | 20 | 8 | 23 | ||
10.76 € | 1 | 4 Days | 10 | 25 | Stainless Steel | Bright | 36 | 20 | 8 | 23 | ||
11.69 € | 1 | 4 Days | 10 | 30 | Stainless Steel | Bright | 36 | 20 | 8 | 23 | ||
14.84 € | 1 | 4 Days | 10 | 40 | Stainless Steel | Bright | 36 | 20 | 8 | 23 |
Loading...
Basic information
| Detailed Shape | Knurling | Mounting Hole Shape | Not Provided |
|---|
Configure
Basic Attributes
-
D=thread (M)
-
Length L(mm)
-
Material
-
Surface finish body
- Black oxidised
- Bright
-
D1=Outside diameter(mm)
-
D3(mm)
-
K(mm)
-
H=Height(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
