Configure
- B=Width(mm)
- 40
- 47.5
- 67
- B1(mm)
- 24
- 27
- 36
- H=Height(mm)
- 50
- 56
- 71.5
- H1(mm)
- 25.5
- 27.5
- 34
- L=Length(mm)
- 85
- 98
- 134
- L3(mm)
- 16
- 18.2
- 26.5
- L4(mm)
- 26
- 30
- 36
- L5(mm)
- 25
- 32
- SW=key width(mm)
- 17
- 19
- 24
- Travel S(mm)
- 4
- 6
- 10
- Tightening torque M1(Nm)
- 67
- 83
- 205
- Tightening torque M2(Nm)
- 45
- 60
- 125
- BN=Slot width(mm)
- 12
- 14
- 18
- F(kN)
- 14
- 20
- 30
- Size
- 14
- 20
- 30
- L1 max.(mm)
- 126.5
- 146
- 199.5
- L1 min.(mm)
- 122.5
- 139
- 189.5
- L2 max.(mm)
- 44.5
- 50.4
- 70.5
- L2 min.(mm)
- 40.5
- 43.7
- 60.5
- Weight(kg)
- 1.3950
- 2.1050
- 5.2000
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

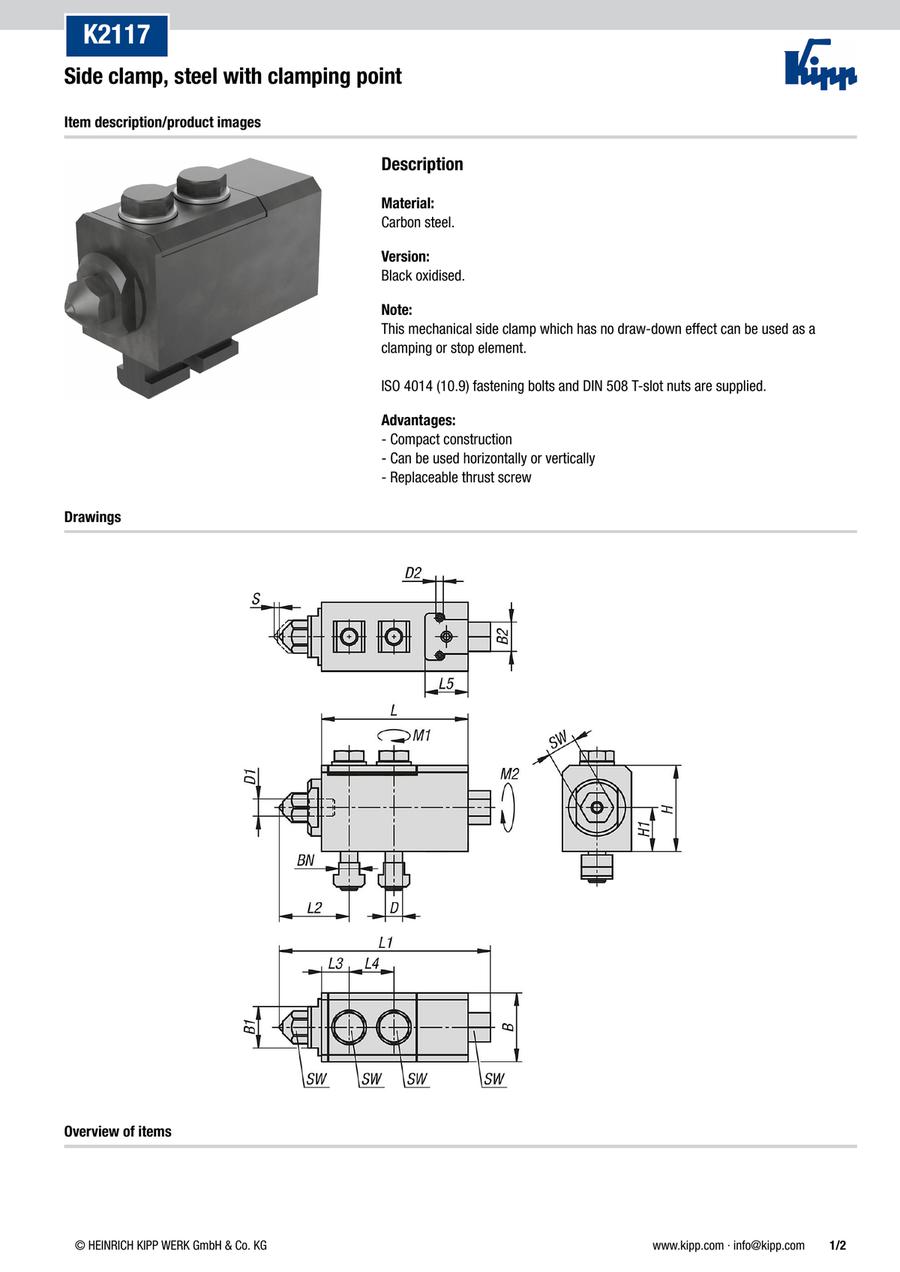

Side clamps, Steel with clamping point (K2117)
Part number:
possible part numbers found.
