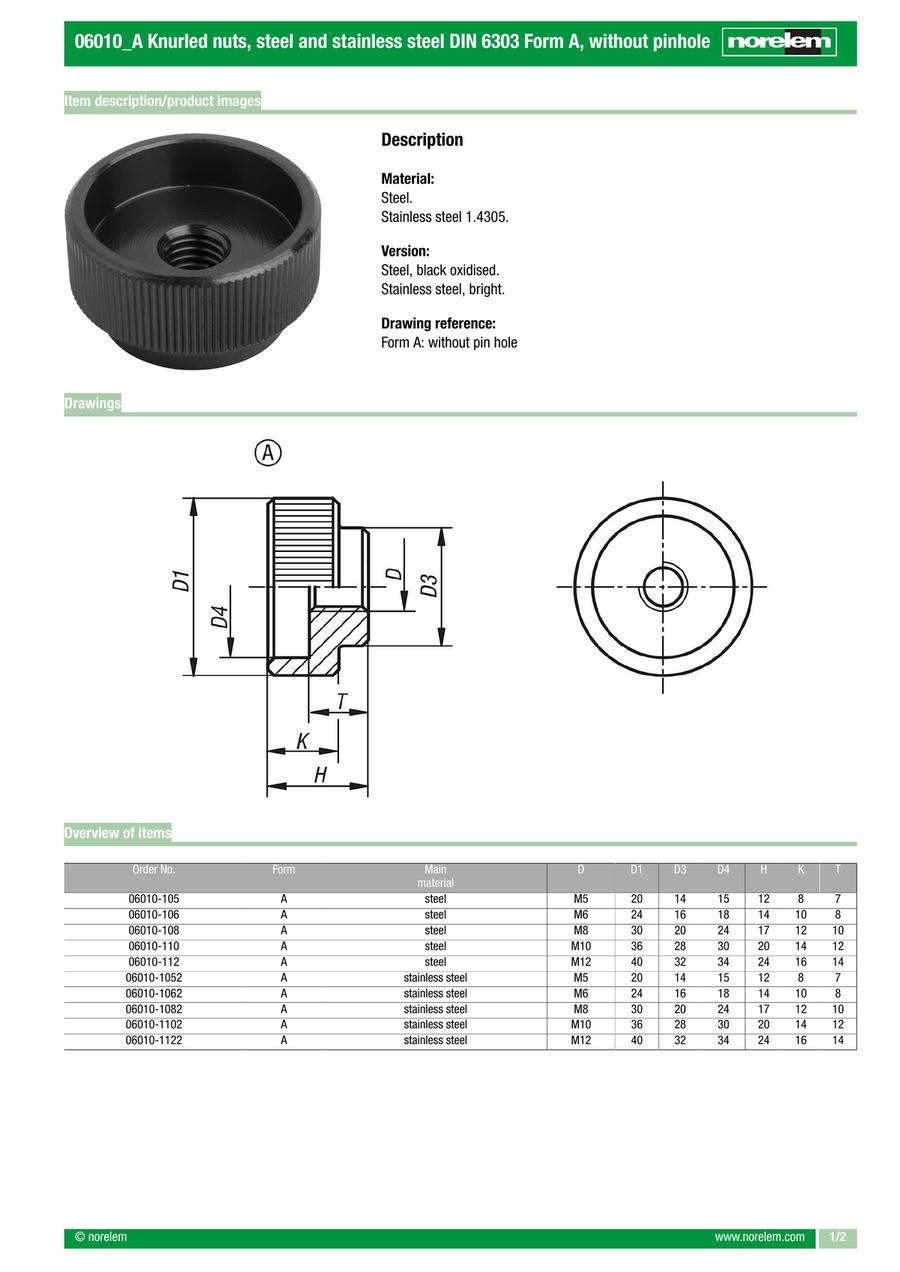

Knurled nuts, steel and stainless steel DIN 6303 Form A, without pinhole (06010)
· Application fields: machine, plant and fixture construction, toolmaking
· Advantage: knurled nut is tightened and loosened with tools
· Form A: without pin hole, steel or stainless steel
· Different thread sizes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06010-105 |
| 06010-1052 |
| 06010-106 |
| 06010-1062 |
| 06010-108 |
| 06010-1082 |
| 06010-110 |
| 06010-1102 |
| 06010-112 |
| 06010-1122 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=thread (M) | Material | Surface finish body | D1=Outside diameter (mm) | D3 (mm) | D4 (mm) | H=Height (mm) | K (mm) | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.64 € | 1 | 4 Days | 5 | Steel | Black oxidised | 20 | 14 | 15 | 12 | 8 | 7 | ||
3.42 € | 1 | 4 Days | 5 | Stainless Steel | Bright | 20 | 14 | 15 | 12 | 8 | 7 | ||
1.95 € | 1 | 4 Days | 6 | Steel | Black oxidised | 24 | 16 | 18 | 14 | 10 | 8 | ||
4.00 € | 1 | 4 Days | 6 | Stainless Steel | Bright | 24 | 16 | 18 | 14 | 10 | 8 | ||
2.65 € | 1 | 4 Days | 8 | Steel | Black oxidised | 30 | 20 | 24 | 17 | 12 | 10 | ||
5.34 € | 1 | 4 Days | 8 | Stainless Steel | Bright | 30 | 20 | 24 | 17 | 12 | 10 | ||
4.03 € | 1 | 4 Days | 10 | Steel | Black oxidised | 36 | 28 | 30 | 20 | 14 | 12 | ||
8.20 € | 1 | 4 Days | 10 | Stainless Steel | Bright | 36 | 28 | 30 | 20 | 14 | 12 | ||
5.63 € | 1 | 4 Days | 12 | Steel | Black oxidised | 40 | 32 | 34 | 24 | 16 | 14 | ||
11.36 € | 1 | 4 Days | 12 | Stainless Steel | Bright | 40 | 32 | 34 | 24 | 16 | 14 |
Loading...
Basic information
| Form | A |
|---|
Configure
Basic Attributes
-
D=thread (M)
-
Material
-
Surface finish body
- Black oxidised
- Bright
-
D1=Outside diameter(mm)
-
D3(mm)
-
D4(mm)
-
H=Height(mm)
-
K(mm)
-
T=thread depth(mm)
- 7
- 8
- 10
- 12
- 14
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
