Knurled knobs, metal parts stainless steel, Form K, with tapped bush, with cap (06267)

Configure

D
- M5
- M6
- M8
- M10
- M12
Outside diameter(φ)
- 40
- 50
- 63
Main Body Height t(mm)
- 31
- 36
- 41
Colour Cap
Size(mm)
- 1
- 2
- 3
D2(mm)
- 16.5
- 18
- 22
H1(Nm)
- 13
- 15
- 17
T=thread depth(mm)
- 10
- 14
- 18
Est. shipping days
- All
- Within 4 working days

Knurled knobs, metal parts stainless steel, Form K, with tapped bush, with cap (06267)

Catalog

Part number:

Still undefined. 49 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

Colour Cap

Size

(mm)

(Nm)

T=thread depth

(mm)

Minimum order quantity

M5	40	31	Black grey RAL 7021	1	16.5	13	10	1 pieces
M6	40	31	Black grey RAL 7021	1	16.5	13	10	1 pieces
M8	40	31	Black grey RAL 7021	1	16.5	13	14	1 pieces
M5	40	31	Orange RAL 2004	1	16.5	13	10	1 pieces
M5	40	31	Signal green RAL6032	1	16.5	13	10	1 pieces
M5	40	31	Blue RAL5017	1	16.5	13	10	1 pieces
M5	40	31	Light grey RAL 7035	1	16.5	13	10	1 pieces
M5	40	31	Traffic red RAL 3020	1	16.5	13	10	1 pieces
M5	40	31	Rape yellow RAL 1021	1	16.5	13	10	1 pieces
M6	40	31	Orange RAL 2004	1	16.5	13	10	1 pieces
M6	40	31	Signal green RAL6032	1	16.5	13	10	1 pieces
M6	40	31	Blue RAL5017	1	16.5	13	10	1 pieces
M6	40	31	Light grey RAL 7035	1	16.5	13	10	1 pieces
M6	40	31	Traffic red RAL 3020	1	16.5	13	10	1 pieces
M6	40	31	Rape yellow RAL 1021	1	16.5	13	10	1 pieces
M8	40	31	Orange RAL 2004	1	16.5	13	10	1 pieces
M8	40	31	Signal green RAL6032	1	16.5	13	10	1 pieces
M8	40	31	Blue RAL5017	1	16.5	13	10	1 pieces
M8	40	31	Light grey RAL 7035	1	16.5	13	14	1 pieces
M8	40	31	Traffic red RAL 3020	1	16.5	13	14	1 pieces
M8	40	31	Rape yellow RAL 1021	1	16.5	13	14	1 pieces
M8	50	36	Black grey RAL 7021	2	18	15	14	1 pieces
M8	50	36	Orange RAL 2004	2	18	15	14	1 pieces
M8	50	36	Signal green RAL6032	2	18	15	14	1 pieces
M8	50	36	Blue RAL5017	2	18	15	14	1 pieces
M8	50	36	Light grey RAL 7035	2	18	15	14	1 pieces
M8	50	36	Traffic red RAL 3020	2	18	15	14	1 pieces
M8	50	36	Rape yellow RAL 1021	2	18	15	14	1 pieces
M10	50	36	Black grey RAL 7021	2	18	15	14	1 pieces
M10	50	36	Orange RAL 2004	2	18	15	14	1 pieces
M10	50	36	Signal green RAL6032	2	18	15	14	1 pieces
M10	50	36	Blue RAL5017	2	18	15	14	1 pieces
M10	50	36	Light grey RAL 7035	2	18	15	14	1 pieces
M10	50	36	Traffic red RAL 3020	2	18	15	14	1 pieces
M10	50	36	Rape yellow RAL 1021	2	18	15	14	1 pieces
M10	63	41	Black grey RAL 7021	3	22	17	14	1 pieces
M10	63	41	Orange RAL 2004	3	22	17	14	1 pieces
M12	63	41	Black grey RAL 7021	3	22	17	18	1 pieces
M10	63	41	Signal green RAL6032	3	22	17	14	1 pieces
M10	63	41	Blue RAL5017	3	22	17	14	1 pieces
M10	63	41	Light grey RAL 7035	3	22	17	14	1 pieces
M10	63	41	Traffic red RAL 3020	3	22	17	14	1 pieces
M10	63	41	Rape yellow RAL 1021	3	22	17	14	1 pieces
M12	63	41	Orange RAL 2004	3	22	17	18	1 pieces
M12	63	41	Signal green RAL6032	3	22	17	18	1 pieces
M12	63	41	Blue RAL5017	3	22	17	18	1 pieces
M12	63	41	Light grey RAL 7035	3	22	17	18	1 pieces
M12	63	41	Traffic red RAL 3020	3	22	17	18	1 pieces
M12	63	41	Rape yellow RAL 1021	3	22	17	18	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
4.22 € ( 5.02 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
3.77 € ( 4.49 € )	4 working days
4.22 € ( 5.02 € )	4 working days
4.22 € ( 5.02 € )	4 working days
4.22 € ( 5.02 € )	4 working days
4.22 € ( 5.02 € )	4 working days
4.22 € ( 5.02 € )	4 working days
4.22 € ( 5.02 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.04 € ( 6.00 € )	4 working days
5.08 € ( 6.05 € )	4 working days
5.08 € ( 6.05 € )	4 working days
5.08 € ( 6.05 € )	4 working days
5.08 € ( 6.05 € )	4 working days
5.08 € ( 6.05 € )	4 working days
5.08 € ( 6.05 € )	4 working days
5.08 € ( 6.05 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.73 € ( 8.01 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.14 € ( 7.31 € )	4 working days
6.73 € ( 8.01 € )	4 working days
6.73 € ( 8.01 € )	4 working days
6.73 € ( 8.01 € )	4 working days
6.73 € ( 8.01 € )	4 working days
6.73 € ( 8.01 € )	4 working days
6.73 € ( 8.01 € )	4 working days

More Information

Basic information

Basic information

· Secure handling due to ergonomically shaped knurled knob

· Application fields: machine, plant and fixture construction, toolmaking

· Versatile application possibilities

· Various colours available

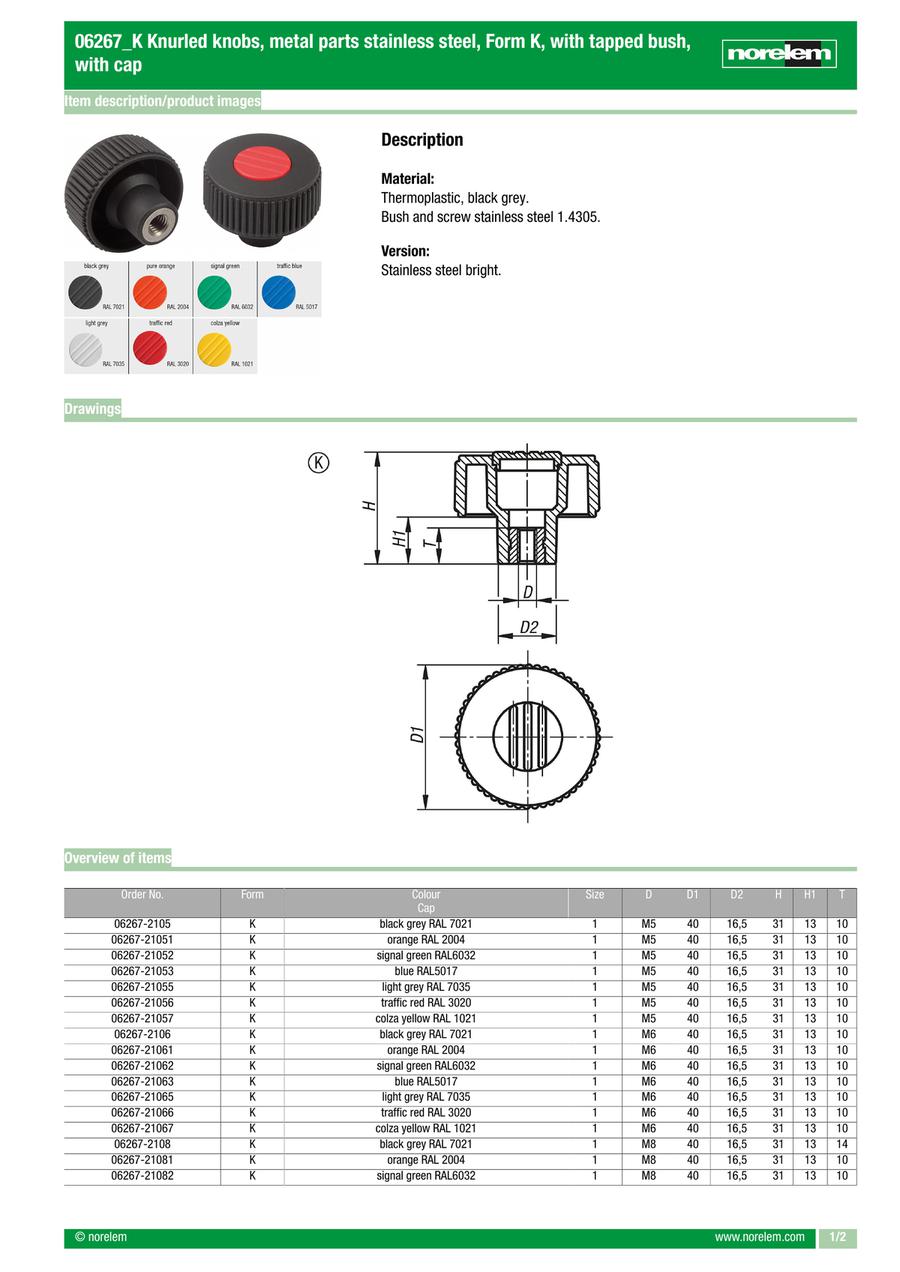

Catalog
