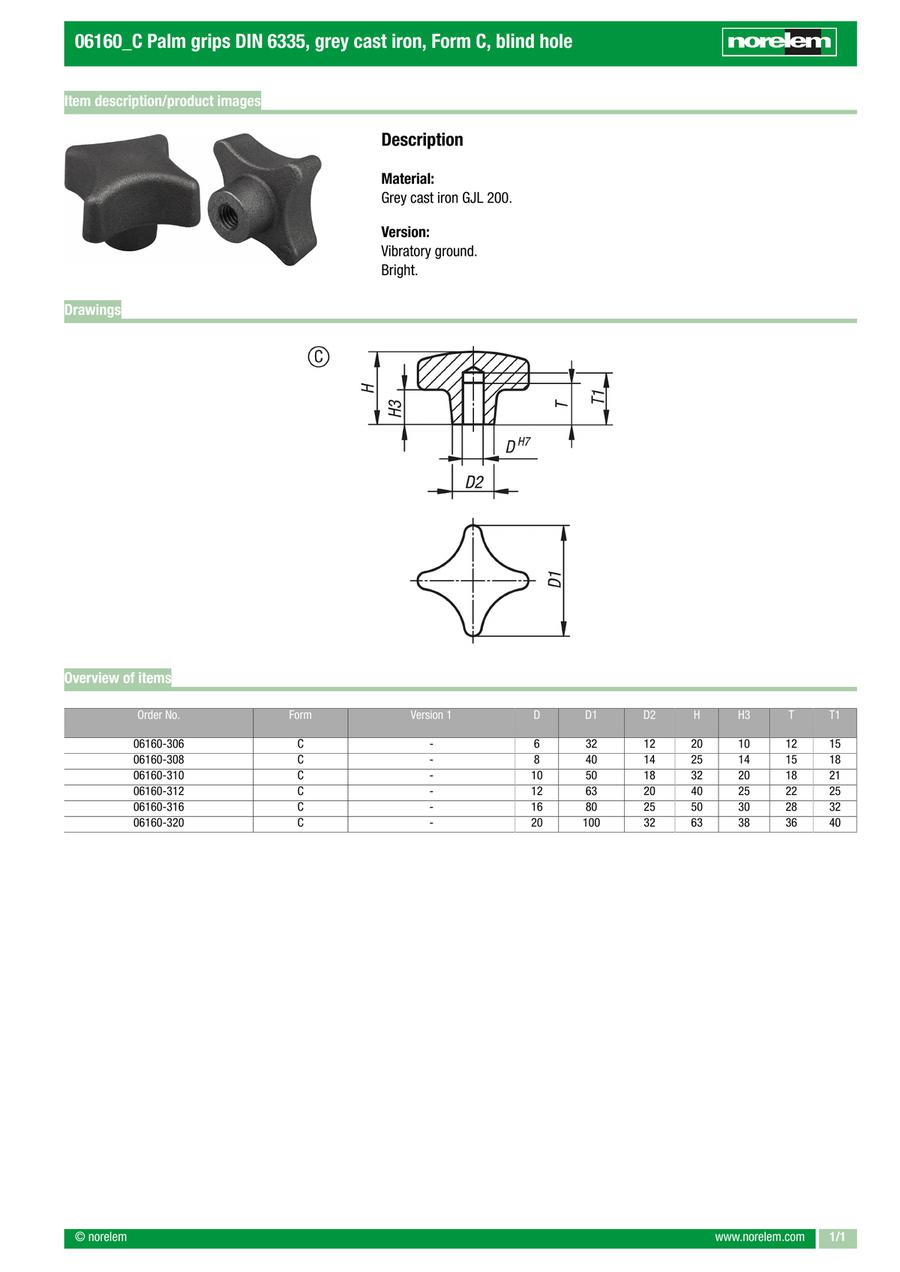

Palm grips DIN 6335 grey cast iron, Form C, blind hole (06160)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Version: vibratory ground
· Form C: blind hole
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06160-306 |
| 06160-308 |
| 06160-310 |
| 06160-312 |
| 06160-316 |
| 06160-320 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main Body Outer Diameter D (φ) | D=bore (mm) | D2 (mm) | H=Height (mm) | H3 | T=bore depth (mm) | T1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.15 € | 1 | 4 Days | 32 | 6 | 12 | 20 | 10 | 12 | 15 | ||
2.98 € | 1 | 4 Days | 40 | 8 | 14 | 25 | 14 | 15 | 18 | ||
3.91 € | 1 | 4 Days | 50 | 10 | 18 | 32 | 20 | 18 | 21 | ||
5.27 € | 1 | 4 Days | 63 | 12 | 20 | 40 | 25 | 22 | 25 | ||
8.61 € | 1 | 4 Days | 80 | 16 | 25 | 50 | 30 | 28 | 32 | ||
16.70 € | 1 | 4 Days | 100 | 20 | 32 | 63 | 38 | 36 | 40 |
Loading...
Basic information
| Main Body Material | Other | Form | C | Main material | Grey cast iron |
|---|
Configure
Basic Attributes
-
Main Body Outer Diameter D(φ)
-
D=bore(mm)
- 6
- 8
- 10
- 12
- 16
- 20
-
D2(mm)
-
H=Height(mm)
-
H3
-
T=bore depth(mm)
-
T1(mm)
- 15
- 18
- 21
- 25
- 32
- 40
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
