NORELEM

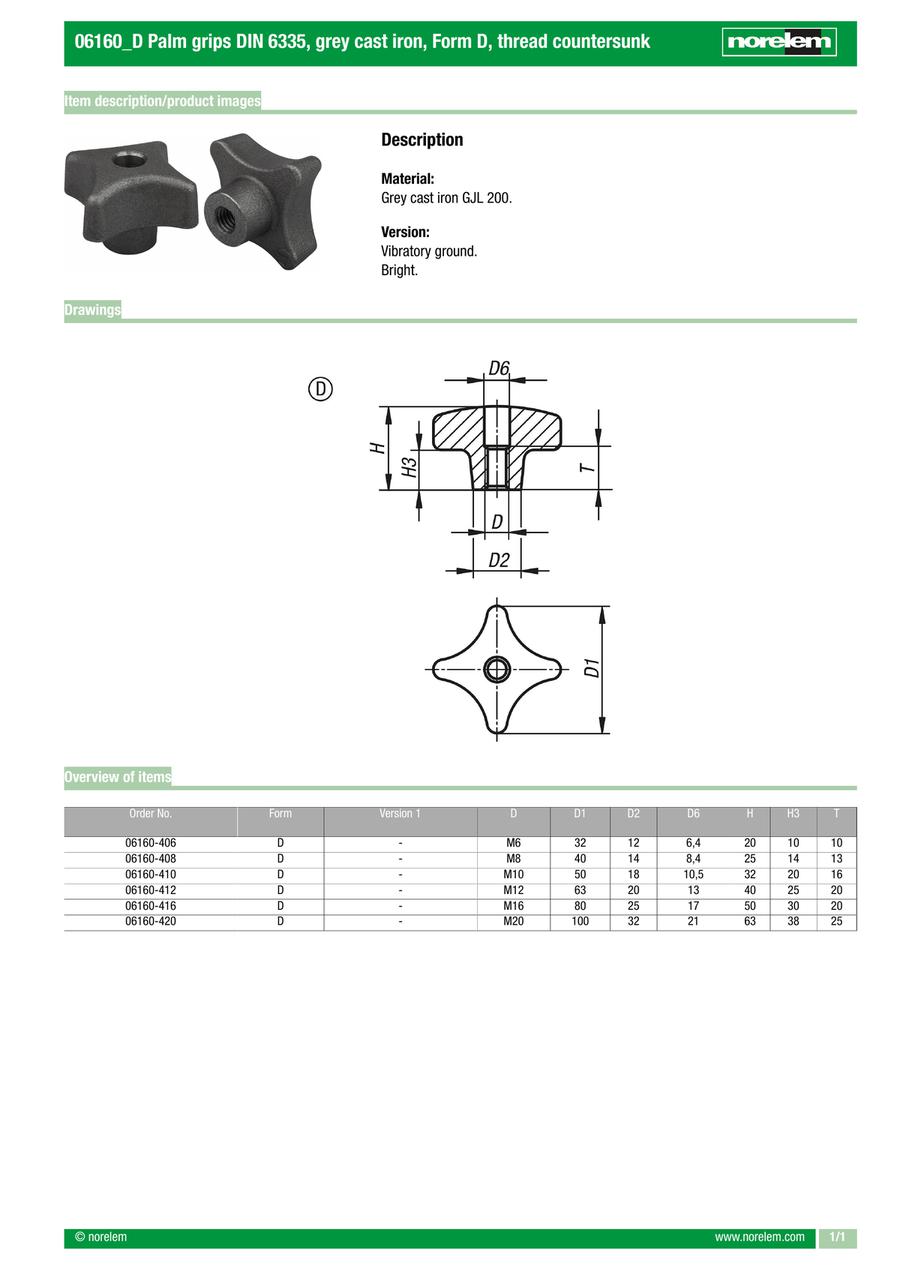

Palm grips DIN 6335, grey cast iron, Form D, thread countersunk (06160)

Palm grips DIN 6335, grey cast iron, Form D, thread countersunk (06160)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06160-406
    06160-408
    06160-410
    06160-412
    06160-416
    06160-420

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D2

    (mm)

    D6

    (mm)

    T=thread depth

    (mm)

    		Minimum order quantity
    M6
    32
    20
    10
    12
    6.4
    10
    1 pieces
    M8
    40
    25
    14
    14
    8.4
    13
    1 pieces
    M10
    50
    32
    20
    18
    10.5
    16
    1 pieces
    M12
    63
    40
    25
    20
    13
    20
    1 pieces
    M16
    80
    50
    30
    25
    17
    20
    1 pieces
    M20
    100
    63
    38
    32
    21
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.15 €
    ( 2.56 € )
    4 working days
    2.98 €
    ( 3.55 € )
    4 working days
    3.91 €
    ( 4.65 € )
    4 working days
    5.27 €
    ( 6.27 € )
    4 working days
    8.61 €
    ( 10.25 € )
    4 working days
    16.70 €
    ( 19.87 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form D: tapped and counterbored

    · Version: vibratory ground
