NORELEM

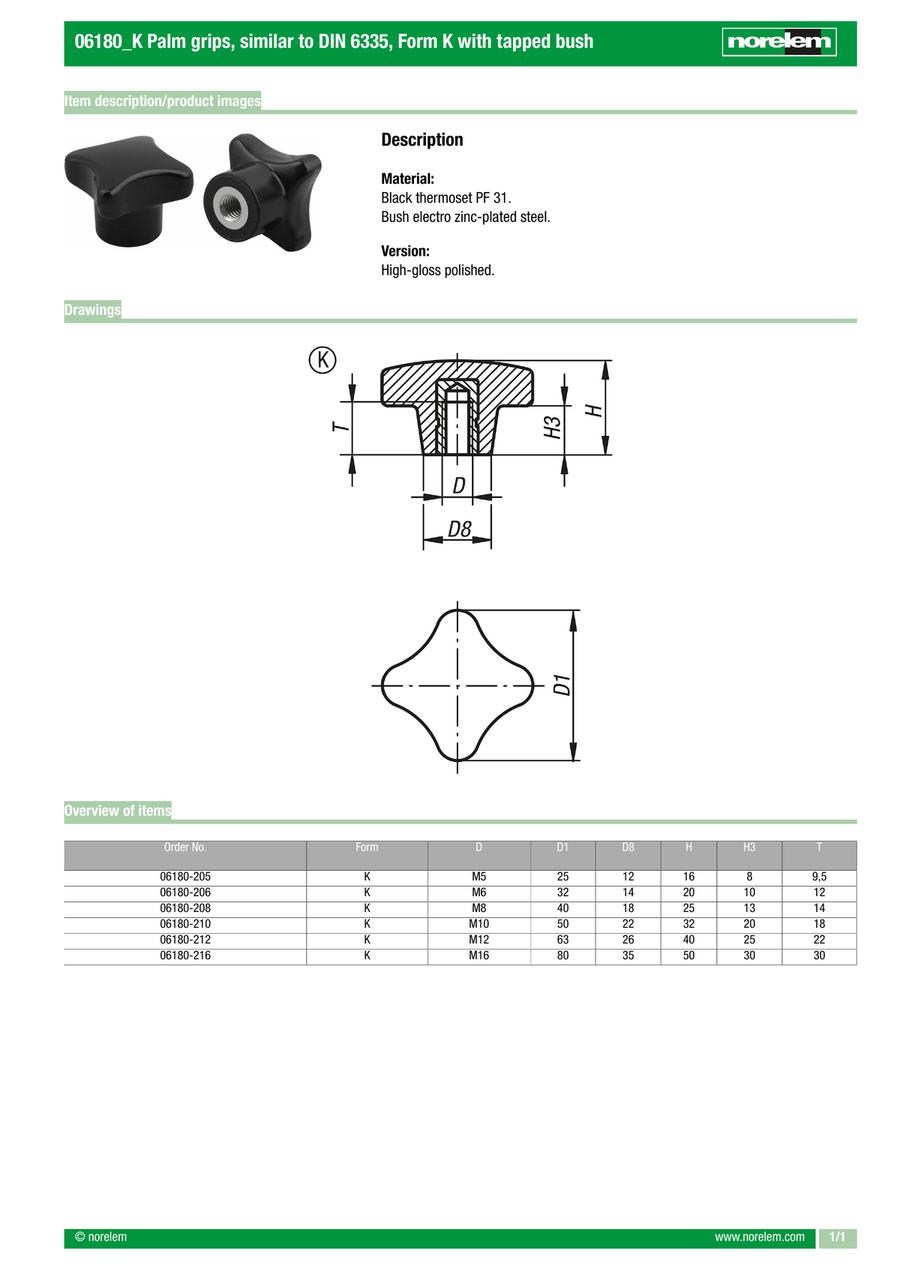

Palm grips, similar to DIN 6335, Form K with tapped bush (06180)

Palm grips, similar to DIN 6335, Form K with tapped bush (06180)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06180-205
    06180-206
    06180-208
    06180-210
    06180-212
    06180-216

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D8

    (mm)

    T=thread depth

    (mm)

    		Minimum order quantity
    M5
    25
    16
    8
    12
    9.5
    1 pieces
    M6
    32
    20
    10
    14
    12
    1 pieces
    M8
    40
    25
    13
    18
    14
    1 pieces
    M10
    50
    32
    20
    22
    18
    1 pieces
    M12
    63
    40
    25
    26
    22
    1 pieces
    M16
    80
    50
    30
    35
    30
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.66 €
    ( 0.79 € )
    4 working days
    0.73 €
    ( 0.87 € )
    4 working days
    1.06 €
    ( 1.26 € )
    4 working days
    1.37 €
    ( 1.63 € )
    4 working days
    2.37 €
    ( 2.82 € )
    4 working days
    6.44 €
    ( 7.66 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form K: with tapped bush

    · Different thread sizes
