NORELEM

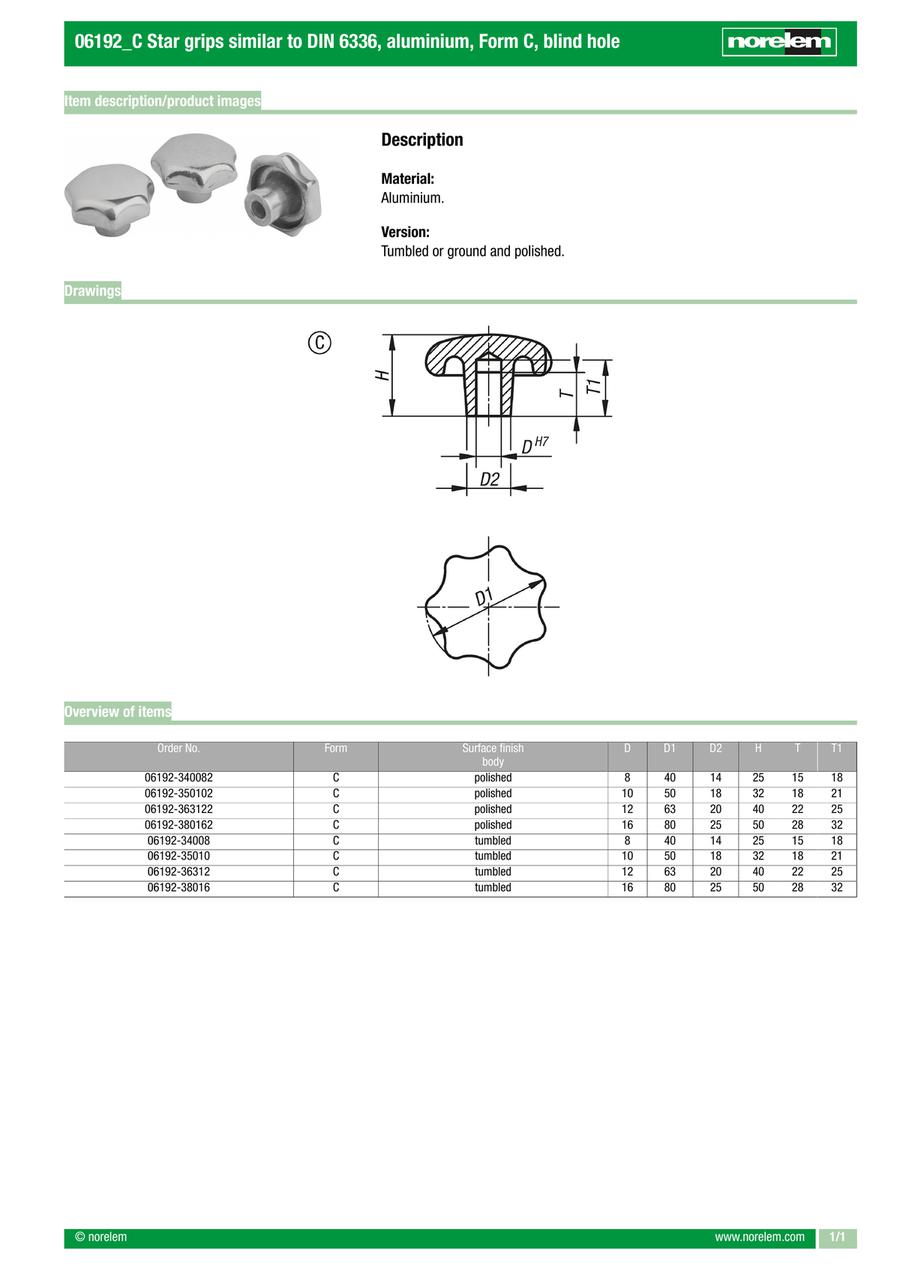

Star grips similar to DIN 6336, aluminium, Form C, blind hole (06192)

Star grips similar to DIN 6336, aluminium, Form C, blind hole (06192)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06192-34008
    06192-340082
    06192-35010
    06192-350102
    06192-36312
    06192-363122
    06192-38016
    06192-380162

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    Surface finish body

    D=bore

    (mm)

    D2

    (mm)

    T=bore depth

    (mm)

    T1

    (mm)

    		Minimum order quantity
    40
    25
    13
    Tumbled
    8
    14
    15
    18
    1 pieces
    40
    25
    13
    Polished
    8
    14
    15
    18
    1 pieces
    50
    32
    17
    Tumbled
    10
    18
    18
    21
    1 pieces
    50
    32
    17
    Polished
    10
    18
    18
    21
    1 pieces
    63
    40
    21
    Tumbled
    12
    20
    22
    25
    1 pieces
    63
    40
    21
    Polished
    12
    20
    22
    25
    1 pieces
    80
    50
    25
    Tumbled
    16
    25
    28
    32
    1 pieces
    80
    50
    25
    Polished
    16
    25
    28
    32
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.78 €
    ( 8.07 € )
    4 working days
    11.66 €
    ( 13.88 € )
    4 working days
    8.50 €
    ( 10.12 € )
    4 working days
    14.23 €
    ( 16.93 € )
    4 working days
    10.85 €
    ( 12.91 € )
    4 working days
    15.69 €
    ( 18.67 € )
    4 working days
    14.23 €
    ( 16.93 € )
    4 working days
    23.49 €
    ( 27.95 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form C: blind hole

    · Version: vibratory ground or polished
