NORELEM

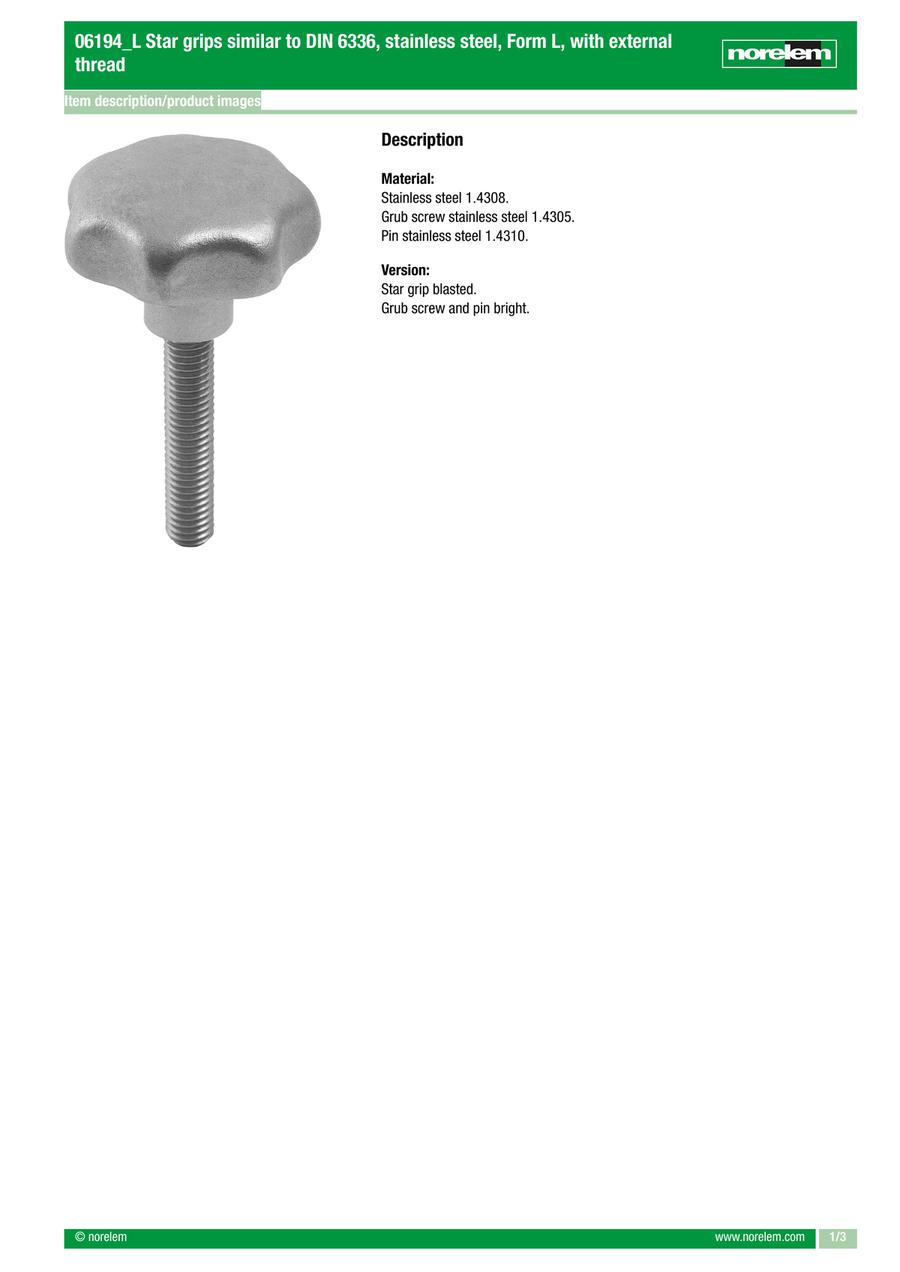

Star grips similar to DIN 6336, stainless steel, Form L, with external thread (06194)

Star grips similar to DIN 6336, stainless steel, Form L, with external thread (06194)

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06194-632063X15
    06194-632063X20
    06194-632063X25
    06194-632063X30
    06194-640083X20
    06194-640083X25
    06194-640083X30
    06194-640083X40
    06194-650103X25
    06194-650103X30
    06194-650103X40
    06194-650103X50
    06194-663123X30
    06194-663123X40
    06194-663123X50
    06194-663123X60

    D

    Length

    (mm)

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D2

    (mm)

    L=thread length

    (mm)

    		Minimum order quantity
    M6
    15
    32
    21
    10
    12
    15
    1 pieces
    M6
    20
    32
    21
    10
    12
    20
    1 pieces
    M6
    25
    32
    21
    10
    12
    25
    1 pieces
    M6
    30
    32
    21
    10
    12
    30
    1 pieces
    M8
    20
    40
    26
    13
    14
    20
    1 pieces
    M8
    25
    40
    26
    13
    14
    25
    1 pieces
    M8
    30
    40
    26
    13
    14
    30
    1 pieces
    M8
    40
    40
    26
    13
    14
    40
    1 pieces
    M10
    25
    50
    34
    17
    18
    25
    1 pieces
    M10
    30
    50
    34
    17
    18
    30
    1 pieces
    M10
    40
    50
    34
    17
    18
    40
    1 pieces
    M10
    50
    50
    34
    17
    18
    50
    1 pieces
    M12
    30
    63
    42
    21
    20
    30
    1 pieces
    M12
    40
    63
    42
    21
    20
    40
    1 pieces
    M12
    50
    63
    42
    21
    20
    50
    1 pieces
    M12
    60
    63
    42
    21
    20
    60
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    14.03 €
    ( 16.70 € )
    4 working days
    14.15 €
    ( 16.84 € )
    4 working days
    14.24 €
    ( 16.95 € )
    4 working days
    14.27 €
    ( 16.98 € )
    4 working days
    15.62 €
    ( 18.59 € )
    4 working days
    15.83 €
    ( 18.84 € )
    4 working days
    15.91 €
    ( 18.93 € )
    4 working days
    16.20 €
    ( 19.28 € )
    4 working days
    20.34 €
    ( 24.20 € )
    4 working days
    20.52 €
    ( 24.42 € )
    4 working days
    20.78 €
    ( 24.73 € )
    4 working days
    21.05 €
    ( 25.05 € )
    4 working days
    26.03 €
    ( 30.98 € )
    4 working days
    26.21 €
    ( 31.19 € )
    4 working days
    26.98 €
    ( 32.11 € )
    4 working days
    27.30 €
    ( 32.49 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors

    · For manually adjusting assemblies, machines and aggregates

    · Form L: with external thread

    · Version: polished or abrasive blasted
