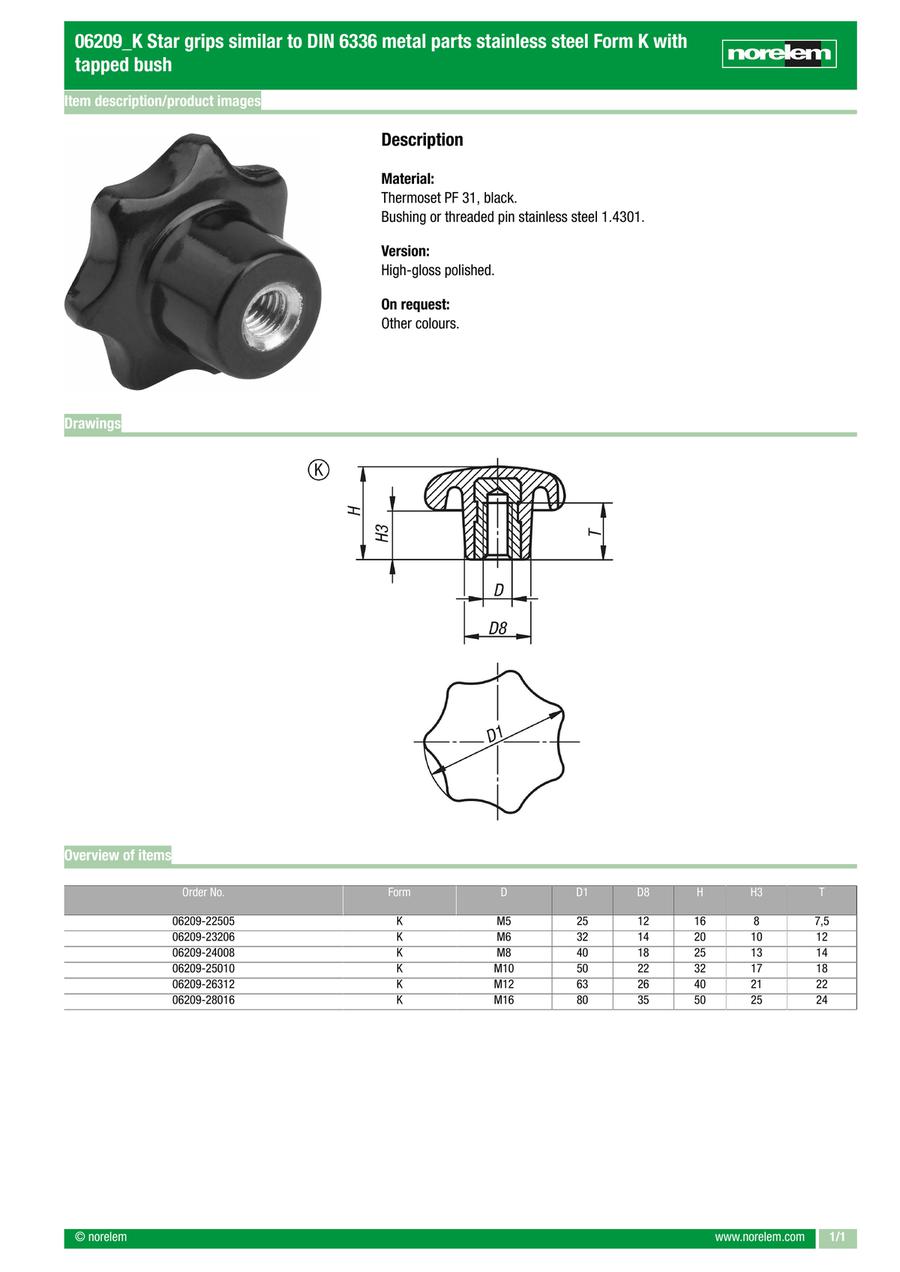

Star grips similar to DIN 6336 metal parts stainless steel Form K with tapped bush (06209)

Star grips similar to DIN 6336 metal parts stainless steel Form K with tapped bush (06209)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06209-22505
    06209-23206
    06209-24008
    06209-25010
    06209-26312
    06209-28016

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D8

    (mm)

    T=thread depth

    (mm)

    T6 min.

    (mm)

    		Minimum order quantity
    M5
    25
    16
    8
    12
    7.5
    7.5
    1 pieces
    M6
    32
    20
    10
    14
    12
    9
    1 pieces
    M8
    40
    25
    13
    18
    14
    12
    1 pieces
    M10
    50
    32
    17
    22
    18
    15
    1 pieces
    M12
    63
    40
    21
    26
    22
    18
    1 pieces
    M16
    80
    50
    25
    35
    24
    24
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.33 €
    ( 3.96 € )
    4 working days
    3.37 €
    ( 4.01 € )
    4 working days
    3.93 €
    ( 4.68 € )
    4 working days
    4.98 €
    ( 5.93 € )
    4 working days
    7.11 €
    ( 8.46 € )
    4 working days
    13.04 €
    ( 15.52 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form K: tapped bush, stainless steel

    · Different thread sizes
