NORELEM

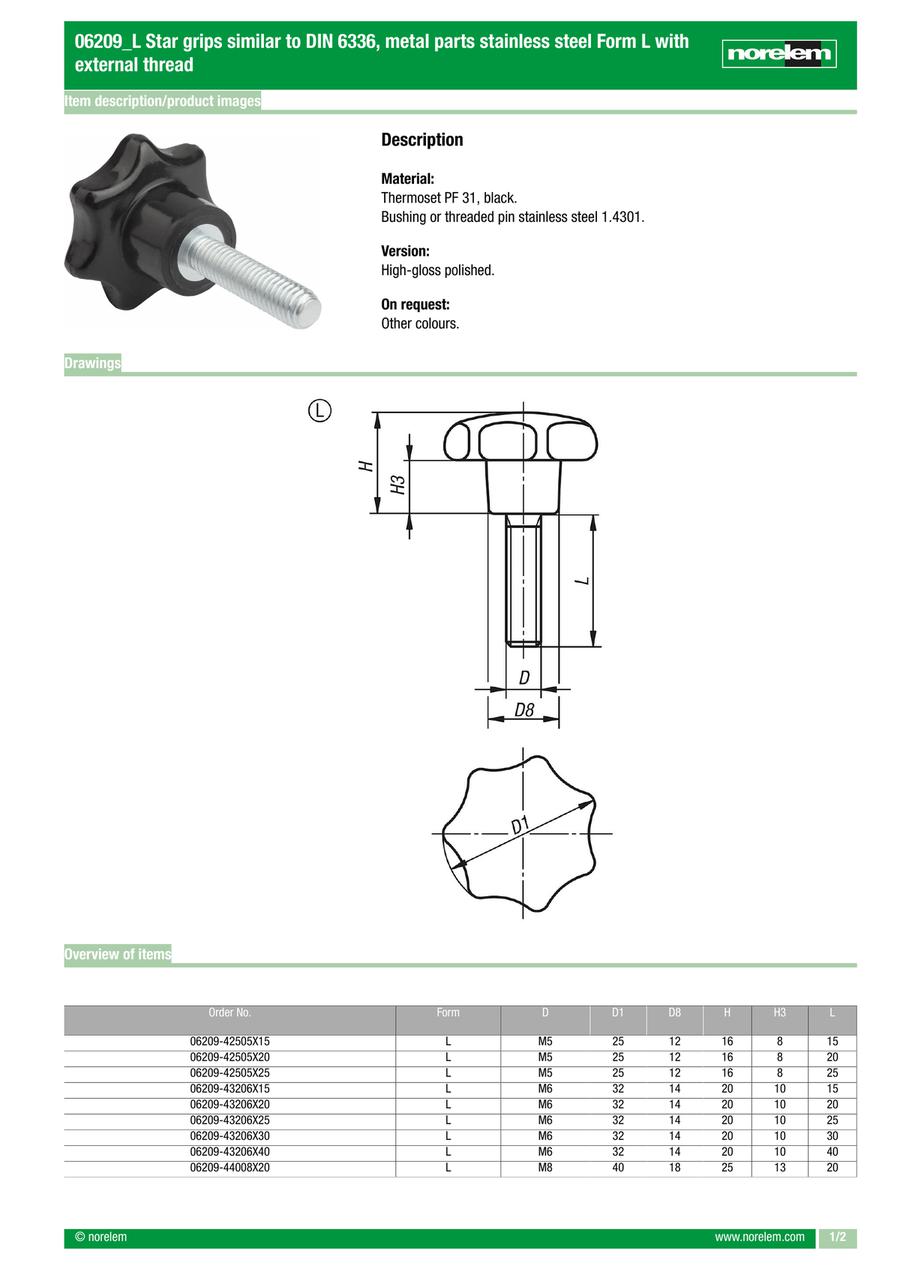

Star grips similar to DIN 6336, metal parts stainless steel Form L with external thread (06209)

Star grips similar to DIN 6336, metal parts stainless steel Form L with external thread (06209)

Part number:

Still undefined. 25 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06209-42505X15
    06209-42505X20
    06209-42505X25
    06209-43206X15
    06209-43206X20
    06209-43206X25
    06209-43206X30
    06209-43206X40
    06209-44008X20
    06209-44008X25
    06209-44008X30
    06209-44008X40
    06209-44008X50
    06209-45010X25
    06209-45010X30
    06209-45010X40
    06209-45010X50
    06209-46312X30
    06209-46312X40
    06209-46312X50
    06209-46312X60
    06209-48016X30
    06209-48016X40
    06209-48016X50
    06209-48016X60

    D

    Length

    (mm)

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D8

    (mm)

    L=thread length

    (mm)

    		Minimum order quantity
    M5
    15
    25
    16
    8
    12
    15
    1 pieces
    M5
    20
    25
    16
    8
    12
    20
    1 pieces
    M5
    25
    25
    16
    8
    12
    25
    1 pieces
    M6
    15
    32
    20
    10
    14
    15
    1 pieces
    M6
    20
    32
    20
    10
    14
    20
    1 pieces
    M6
    25
    32
    20
    10
    14
    25
    1 pieces
    M6
    30
    32
    20
    10
    14
    30
    1 pieces
    M6
    40
    32
    20
    10
    14
    40
    1 pieces
    M8
    20
    40
    25
    13
    18
    20
    1 pieces
    M8
    25
    40
    25
    13
    18
    25
    1 pieces
    M8
    30
    40
    25
    13
    18
    30
    1 pieces
    M8
    40
    40
    25
    13
    18
    40
    1 pieces
    M8
    50
    40
    25
    13
    18
    50
    1 pieces
    M10
    25
    50
    32
    17
    22
    25
    1 pieces
    M10
    30
    50
    32
    17
    22
    30
    1 pieces
    M10
    40
    50
    32
    17
    22
    40
    1 pieces
    M10
    50
    50
    32
    17
    22
    50
    1 pieces
    M12
    30
    63
    40
    21
    26
    30
    1 pieces
    M12
    40
    63
    40
    21
    26
    40
    1 pieces
    M12
    50
    63
    40
    21
    26
    50
    1 pieces
    M12
    60
    63
    40
    21
    26
    60
    1 pieces
    M16
    30
    80
    50
    25
    35
    30
    1 pieces
    M16
    40
    80
    50
    25
    35
    40
    1 pieces
    M16
    50
    80
    50
    25
    35
    50
    1 pieces
    M16
    60
    80
    50
    25
    35
    60
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.28 €
    ( 2.71 € )
    4 working days
    2.40 €
    ( 2.86 € )
    4 working days
    2.42 €
    ( 2.88 € )
    4 working days
    2.28 €
    ( 2.71 € )
    4 working days
    2.40 €
    ( 2.86 € )
    4 working days
    2.42 €
    ( 2.88 € )
    4 working days
    2.43 €
    ( 2.89 € )
    4 working days
    2.82 €
    ( 3.36 € )
    4 working days
    3.23 €
    ( 3.84 € )
    4 working days
    3.27 €
    ( 3.89 € )
    4 working days
    3.55 €
    ( 4.22 € )
    4 working days
    4.60 €
    ( 5.47 € )
    4 working days
    5.12 €
    ( 6.09 € )
    4 working days
    4.03 €
    ( 4.80 € )
    4 working days
    4.08 €
    ( 4.86 € )
    4 working days
    4.17 €
    ( 4.96 € )
    4 working days
    5.35 €
    ( 6.37 € )
    4 working days
    5.23 €
    ( 6.22 € )
    4 working days
    5.35 €
    ( 6.37 € )
    4 working days
    5.53 €
    ( 6.58 € )
    4 working days
    5.77 €
    ( 6.87 € )
    4 working days
    8.98 €
    ( 10.69 € )
    4 working days
    9.22 €
    ( 10.97 € )
    4 working days
    9.54 €
    ( 11.35 € )
    4 working days
    9.95 €
    ( 11.84 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form L: external thread, stainless steel

    · Different thread sizes
