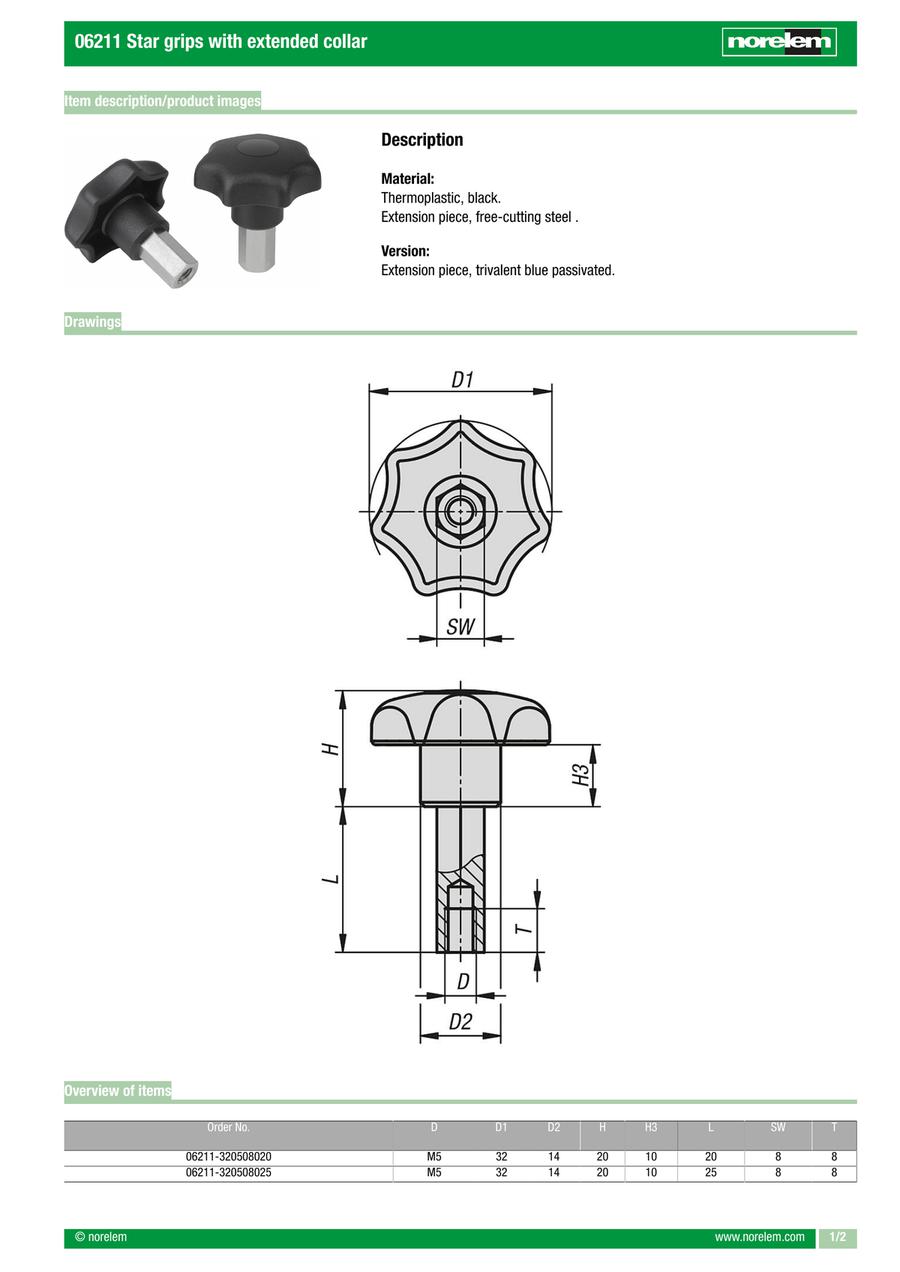

Star grips with extended collar (06211)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Advantage: option to use spanner for increased tightening forces
· Different thread sizes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Section Diameter d(mm) and/or Diameter | Main Body Outer Diameter D (φ) | D2 (mm) | H=Height (mm) | H3 | L=thread length (mm) | SW=key width (mm) | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.05 € | 1 | 4 Days | M5 | 32 | 14 | 20 | 10 | 20 | 8 | 8 | ||
7.20 € | 1 | 4 Days | M5 | 32 | 14 | 20 | 10 | 25 | 8 | 8 | ||
7.41 € | 1 | 4 Days | M5 | 32 | 14 | 20 | 10 | 30 | 8 | 8 | ||
7.66 € | 1 | 4 Days | M6 | 40 | 18 | 25 | 13 | 20 | 10 | 9 | ||
7.82 € | 1 | 4 Days | M6 | 40 | 18 | 25 | 13 | 25 | 10 | 9 | ||
8.00 € | 1 | 4 Days | M6 | 40 | 18 | 25 | 13 | 30 | 10 | 9 | ||
8.24 € | 1 | 4 Days | M6 | 40 | 18 | 25 | 13 | 40 | 10 | 9 | ||
8.43 € | 1 | 4 Days | M6 | 40 | 18 | 25 | 13 | 50 | 10 | 9 | ||
8.27 € | 1 | 4 Days | M8 | 50 | 22 | 32 | 17 | 20 | 13 | 12 | ||
8.35 € | 1 | 4 Days | M8 | 50 | 22 | 32 | 17 | 25 | 13 | 12 | ||
8.46 € | 1 | 4 Days | M8 | 50 | 22 | 32 | 17 | 30 | 13 | 12 | ||
8.54 € | 1 | 4 Days | M8 | 50 | 22 | 32 | 17 | 40 | 13 | 12 | ||
8.71 € | 1 | 4 Days | M8 | 50 | 22 | 32 | 17 | 50 | 13 | 12 | ||
9.16 € | 1 | 4 Days | M8 | 50 | 22 | 32 | 17 | 80 | 13 | 12 | ||
10.23 € | 1 | 4 Days | M10 | 63 | 26 | 40 | 21 | 25 | 16 | 15 | ||
10.38 € | 1 | 4 Days | M10 | 63 | 26 | 40 | 21 | 30 | 16 | 15 | ||
10.53 € | 1 | 4 Days | M10 | 63 | 26 | 40 | 21 | 40 | 16 | 15 | ||
10.83 € | 1 | 4 Days | M10 | 63 | 26 | 40 | 21 | 50 | 16 | 15 | ||
11.36 € | 1 | 4 Days | M10 | 63 | 26 | 40 | 21 | 80 | 16 | 15 | ||
11.70 € | 1 | 4 Days | M10 | 63 | 26 | 40 | 21 | 100 | 16 | 15 |
Loading...
Basic information
| Main Body Material | Other | Component material | Steel | Component colour | blue-passivated |
|---|---|---|---|---|---|
| Main colour(mm) | black | Form | K | Main material | Thermoplastic |
Configure
Basic Attributes
-
Mounting Section Diameter d(mm) and/or Diameter
-
Main Body Outer Diameter D(φ)
-
D2(mm)
-
H=Height(mm)
-
H3
-
L=thread length(mm)
-
SW=key width(mm)
- 8
- 10
- 13
- 16
-
T=thread depth(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
