Star grips similar to DIN 6336, metal parts stainless steel, internal thread, with cap, Form K (06212)

Configure

D
- M4
- M5
- M6
- M8
- M10
- M12
- M16
Outside diameter(φ)
- 25
- 32
- 40
- 50
- 63
Main Body Height t(mm)
- 16
- 20
- 25
- 32
- 40
H3
- 8
- 10
- 13
- 17
- 21
D8(mm)
- 12
- 14
- 18
- 22
- 26
T=thread depth(mm)
- 10
- 14
- 18
Colour Cap
DIN
- Similar to DIN 6336
Est. shipping days
- All
- Within 4 working days

Star grips similar to DIN 6336, metal parts stainless steel, internal thread, with cap, Form K (06212)

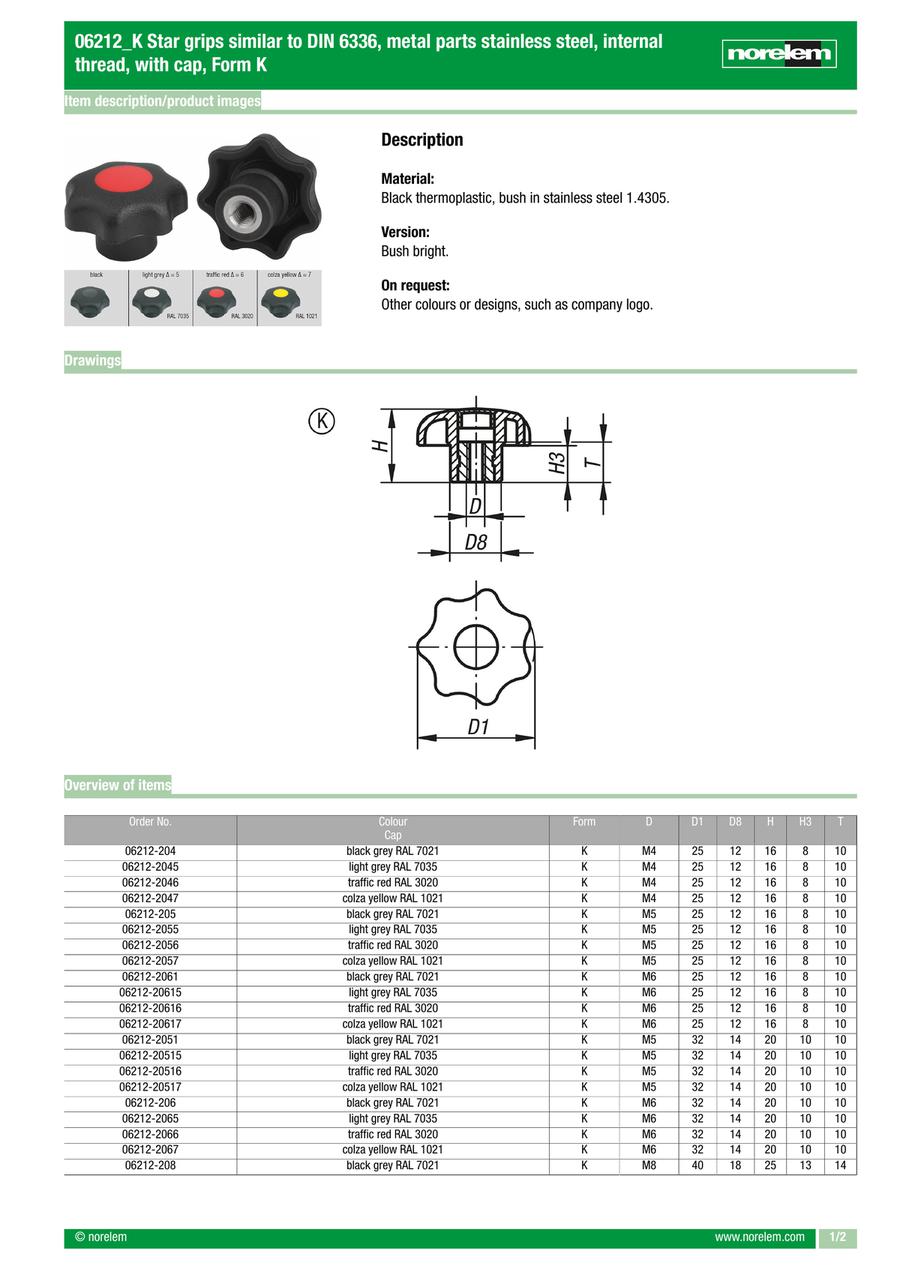

Catalog

Part number:

Still undefined. 52 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

T=thread depth

(mm)

Colour Cap

DIN

Weight (ERP)

(kg)

Minimum order quantity

M4	25	16	8	12	10	Black grey RAL 7021	Similar to DIN 6336	0.0070	1 pieces
M4	25	16	8	12	10	Light grey RAL 7035	Similar to DIN 6336	0.0060	1 pieces
M4	25	16	8	12	10	Traffic red RAL 3020	Similar to DIN 6336	0.0070	1 pieces
M4	25	16	8	12	10	Colza yellow RAL 1021	Similar to DIN 6336	0.0070	1 pieces
M5	25	16	8	12	10	Black grey RAL 7021	-	0.0065	1 pieces
M5	32	20	10	14	10	Black grey RAL 7021	Similar to DIN 6336	0.0090	1 pieces
M5	25	16	8	12	10	Light grey RAL 7035	-	0.0065	1 pieces
M5	25	16	8	12	10	Traffic red RAL 3020	-	0.0086	1 pieces
M5	25	16	8	12	10	Colza yellow RAL 1021	-	0.0066	1 pieces
M5	32	20	10	14	10	Light grey RAL 7035	Similar to DIN 6336	0.0090	1 pieces
M5	32	20	10	14	10	Traffic red RAL 3020	Similar to DIN 6336	0.0090	1 pieces
M5	32	20	10	14	10	Colza yellow RAL 1021	Similar to DIN 6336	0.0090	1 pieces
M6	32	20	10	14	10	Black grey RAL 7021	-	0.0085	1 pieces
M6	25	16	8	12	10	Black grey RAL 7021	Similar to DIN 6336	0.0060	1 pieces
M6	32	20	10	14	10	Light grey RAL 7035	-	0.0085	1 pieces
M6	32	20	10	14	10	Traffic red RAL 3020	-	0.0085	1 pieces
M6	32	20	10	14	10	Colza yellow RAL 1021	-	0.0085	1 pieces
M6	25	16	8	12	10	Light grey RAL 7035	Similar to DIN 6336	0.0060	1 pieces
M6	25	16	8	12	10	Traffic red RAL 3020	Similar to DIN 6336	0.0060	1 pieces
M6	25	16	8	12	10	Colza yellow RAL 1021	Similar to DIN 6336	0.0060	1 pieces
M8	40	25	13	18	14	Black grey RAL 7021	-	0.0181	1 pieces
M8	50	32	17	22	14	Black grey RAL 7021	Similar to DIN 6336	0.0250	1 pieces
M8	40	25	13	18	14	Light grey RAL 7035	-	0.0182	1 pieces
M8	40	25	13	18	14	Traffic red RAL 3020	-	0.0183	1 pieces
M8	40	25	13	18	14	Colza yellow RAL 1021	Similar to DIN 6336	0.0182	1 pieces
M8	50	32	17	22	14	Light grey RAL 7035	Similar to DIN 6336	0.0250	1 pieces
M8	50	32	17	22	14	Traffic red RAL 3020	Similar to DIN 6336	0.0250	1 pieces
M8	50	32	17	22	14	Colza yellow RAL 1021	Similar to DIN 6336	0.0250	1 pieces
M10	50	32	17	22	14	Black grey RAL 7021	Similar to DIN 6336	0.0222	1 pieces
M10	40	25	13	18	14	Black grey RAL 7021	Similar to DIN 6336	0.0120	1 pieces
M10	63	40	21	26	14	Black grey RAL 7021	Similar to DIN 6336	0.0380	1 pieces
M10	50	32	17	22	14	Light grey RAL 7035	Similar to DIN 6336	0.0227	1 pieces
M10	50	32	17	22	14	Traffic red RAL 3020	Similar to DIN 6336	0.0222	1 pieces
M10	50	32	17	22	14	Colza yellow RAL 1021	Similar to DIN 6336	0.0227	1 pieces
M10	40	25	13	18	14	Light grey RAL 7035	Similar to DIN 6336	0.0120	1 pieces
M10	40	25	13	18	14	Traffic red RAL 3020	Similar to DIN 6336	0.0120	1 pieces
M10	40	25	13	18	14	Colza yellow RAL 1021	Similar to DIN 6336	0.0120	1 pieces
M10	63	40	21	26	14	Light grey RAL 7035	Similar to DIN 6336	0.0380	1 pieces
M10	63	40	21	26	14	Traffic red RAL 3020	Similar to DIN 6336	0.0380	1 pieces
M10	63	40	21	26	14	Colza yellow RAL 1021	Similar to DIN 6336	0.0380	1 pieces
M12	63	40	21	26	18	Black grey RAL 7021	Similar to DIN 6336	0.0530	1 pieces
M12	50	32	17	22	18	Black grey RAL 7021	Similar to DIN 6336	0.0380	1 pieces
M12	63	40	21	26	18	Light grey RAL 7035	Similar to DIN 6336	0.0535	1 pieces
M12	63	40	21	26	18	Traffic red RAL 3020	Similar to DIN 6336	0.0533	1 pieces
M12	63	40	21	26	18	Colza yellow RAL 1021	Similar to DIN 6336	0.0527	1 pieces
M12	50	32	17	22	18	Light grey RAL 7035	Similar to DIN 6336	0.0380	1 pieces
M12	50	32	17	22	18	Traffic red RAL 3020	Similar to DIN 6336	0.0380	1 pieces
M12	50	32	17	22	18	Colza yellow RAL 1021	Similar to DIN 6336	0.0380	1 pieces
M16	63	40	21	26	18	Black grey RAL 7021	Similar to DIN 6336	0.0380	1 pieces
M16	63	40	21	26	18	Light grey RAL 7035	Similar to DIN 6336	0.0380	1 pieces
M16	63	40	21	26	18	Traffic red RAL 3020	Similar to DIN 6336	0.0380	1 pieces
M16	63	40	21	26	18	Colza yellow RAL 1021	Similar to DIN 6336	0.0380	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.64 € ( 1.95 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.60 € ( 1.90 € )	4 working days
1.96 € ( 2.33 € )	4 working days
2.91 € ( 3.46 € )	4 working days
1.96 € ( 2.33 € )	4 working days
1.96 € ( 2.33 € )	4 working days
1.96 € ( 2.33 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
1.96 € ( 2.33 € )	4 working days
5.29 € ( 6.30 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
1.96 € ( 2.33 € )	4 working days
1.96 € ( 2.33 € )	4 working days
1.96 € ( 2.33 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
2.91 € ( 3.46 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
2.91 € ( 3.46 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days
5.29 € ( 6.30 € )	4 working days

More Information

Basic information

Basic information

· Can be used as a clamping, retaining and fastening element

· Application fields: machine, plant and fixture construction, toolmaking

· For manually adjusting assemblies, machines and aggregates

· Form K: tapped bush with cap

· Cap in various colour combinations
